14000 OPERATOR MANUAL SETUP AND INSTALLATION
4
Table 4-2
Operating Limitations During Crane Assembly and Disassembly
SHIPPING DATA
Crane Configuration Operating Limitations
Crane on Jacks
Gantry and Mast in Transport Position
No Counterweight Installed
360° Swing Permitted
Crane on Jacks
Gantry UP
Mast at Maximum Angle of 172°
No Counterweight Installed
360° Swing Permitted
Crane on Jacks
Gantry UP
Mast at Maximum Angle of 145°
Chain Sling and Assembly Block Installed
No Counterweight Installed
360° Swing Permitted
Crane on Jacks
Gantry UP
Installing Crawlers with Mast
No Counterweight Installed
•15° Maximum Swing either Side of Center (see
Figure 4-13
) while handling a crawler
• 15 ft (4,6 m) Maximum Radius
• Mast at 118° or higher before swinging after first crawler
is installed
Crane on Crawlers
Gantry UP
Handling Loads with Mast
Counterweight Installed (Series 1, 2, or 3)
• See Liftcrane Mast Capacities chart at end of this
section for lifting capacities
Crane on Crawlers
Gantry DOWN
Mast DOWN
Counterweight Installed (Series 1, 2, or 3)
360° Swing Permitted

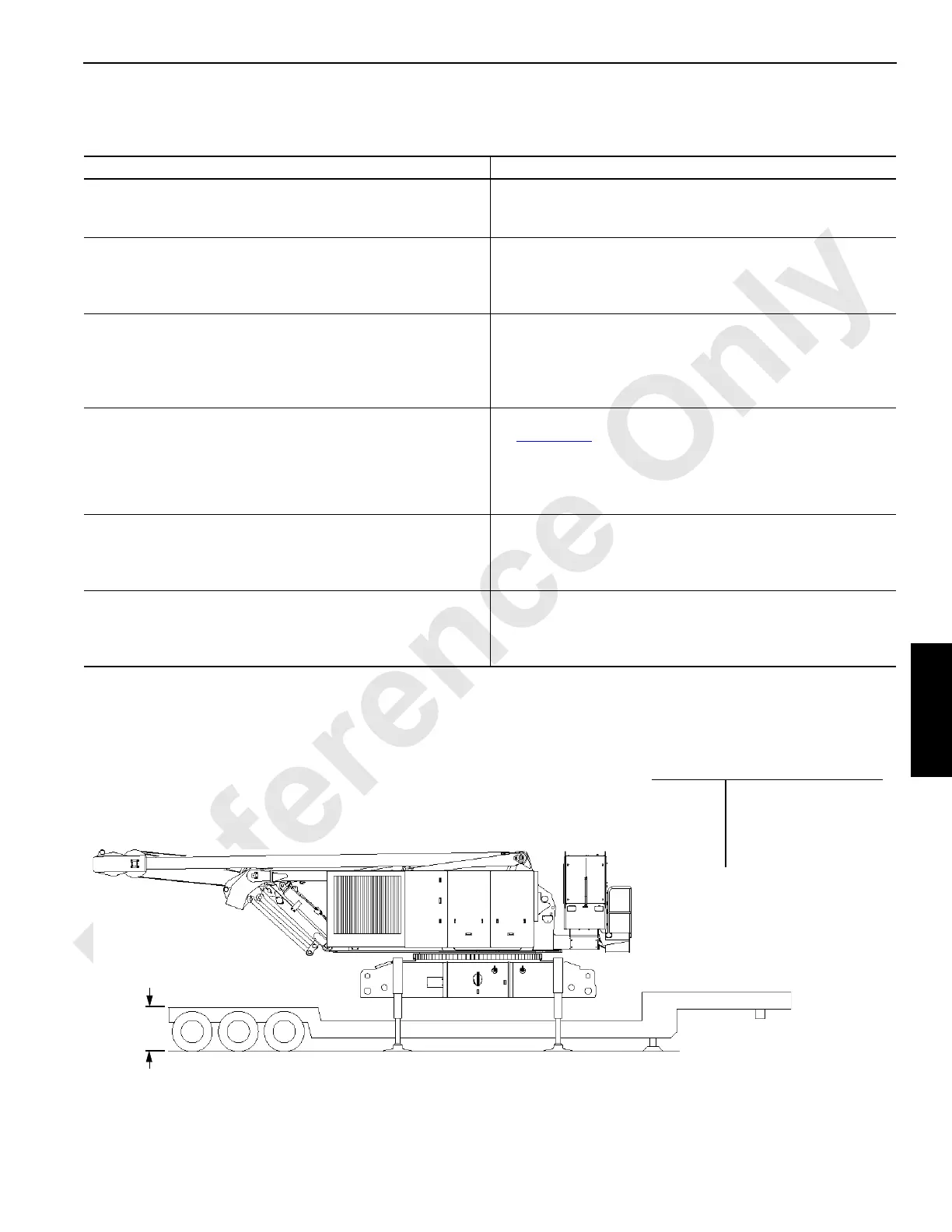

FIGURE 4-6
40 in (1 016 mm)
Maximum Deck Height
14COM4103a
Upperworks and
Carbody Assembly
Length 38 ft 2 in (11,63 m)
Width 9 ft 10 in (3,00 m)
Height 10 ft 5 in (3,18 m)
Weight 83,400 lb (37 830 kg)
