Reference Only
SETUP AND INSTALLATION 14000 OPERATOR MANUAL
4-8
Published 03-29-17, Control # 064-23 v2
1
with 20 in (508 mm) Wide Cab Catwalk
2
with 24 in (610 mm) Wide Cab Catwalk

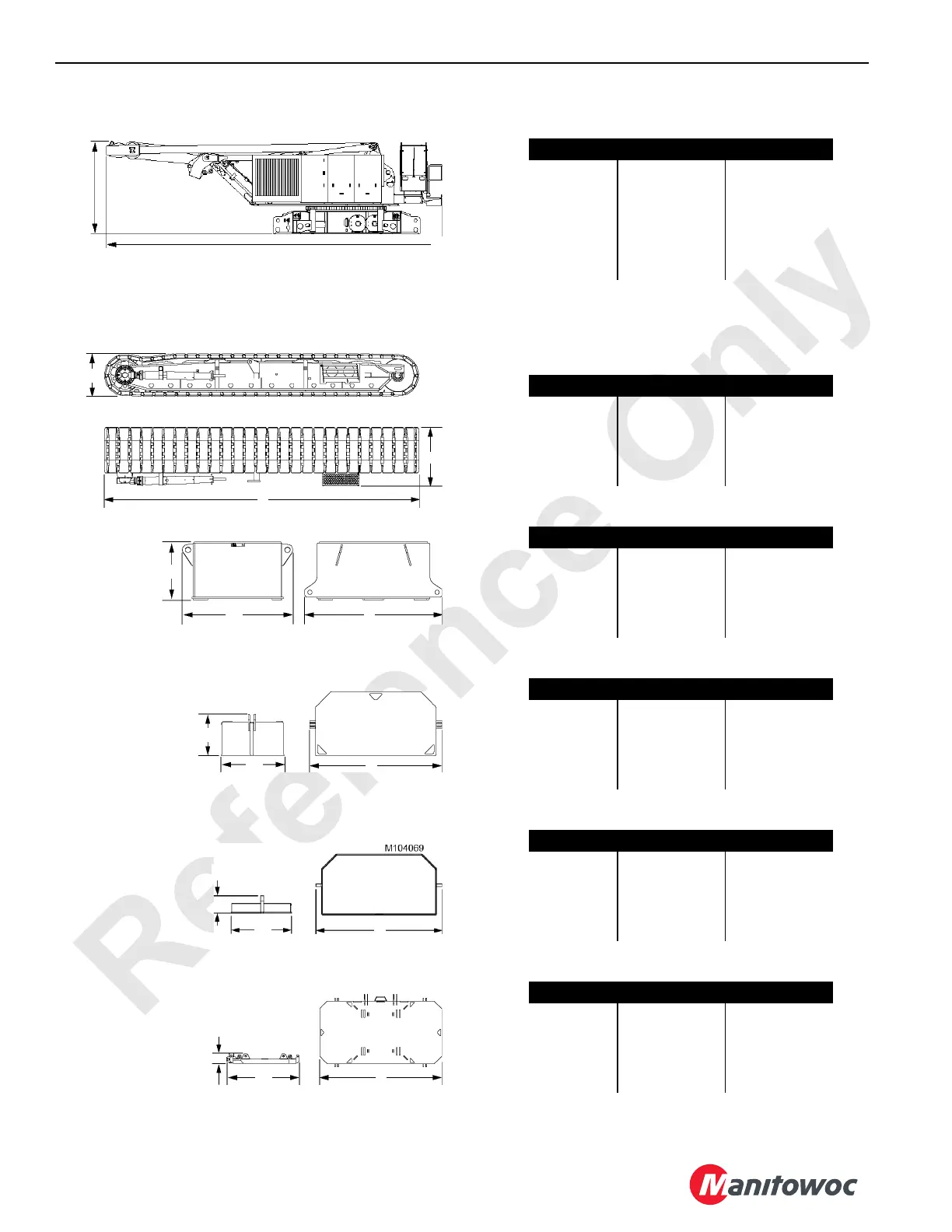

Upperworks and Carbody Assembly
Length
38 ft 4 in
1
11,7 m
38 ft 8 in
2
11,8 m
Width 9 ft 10 in 3,0 m
Height 10 ft 5 in 3,2 m
Weight 83,400 lb 37 830 kg
Crawlers with Step
Length 27 ft 3 in 8,3 m
Width 5 ft 1 in 1,6 m
Height 3 ft 8 in 1,1 m
Weight 38,915 lb 17 652 kg
Center Counterweight Box
Length 4 ft 3 in 1,3 m
Width 3 ft 5 in 1,0 m
Height 1 ft 10 in 0,6 m
Weight 5,909 lb 2 680 kg
Side Counterweight Box (Series 1, 2, 3)
Length 7 ft 4 in 2,3 m
Width 3 ft 6 in 1,1 m
Height 2 ft 3 in 0,7 m
Weight 17,650 lb 8 006 kg
Side Counterweight Box (Series 3)
Length 7 ft 4 in 2.3 m
Width 3 ft 6 in 1.1 m
Height 1 ft 0 in 0.3 m
Weight 5,000 lb 2,268 kg
Counterweight Tray
Length 12 ft 2 in 3,7 m
Width 7 ft 9 in 2,4 m
Height 1 ft 1 in 0,3 m
Weight 21,240 lb 9 634 kg
W
L
H
W
L
H
W
L
H
L
H
W
L
H
FIGURE 4-6 continued
H
W
L
