Manitowoc Published 03-29-17, Control # 064-23 v2 4-9
14000 OPERATOR MANUAL SETUP AND INSTALLATION
4

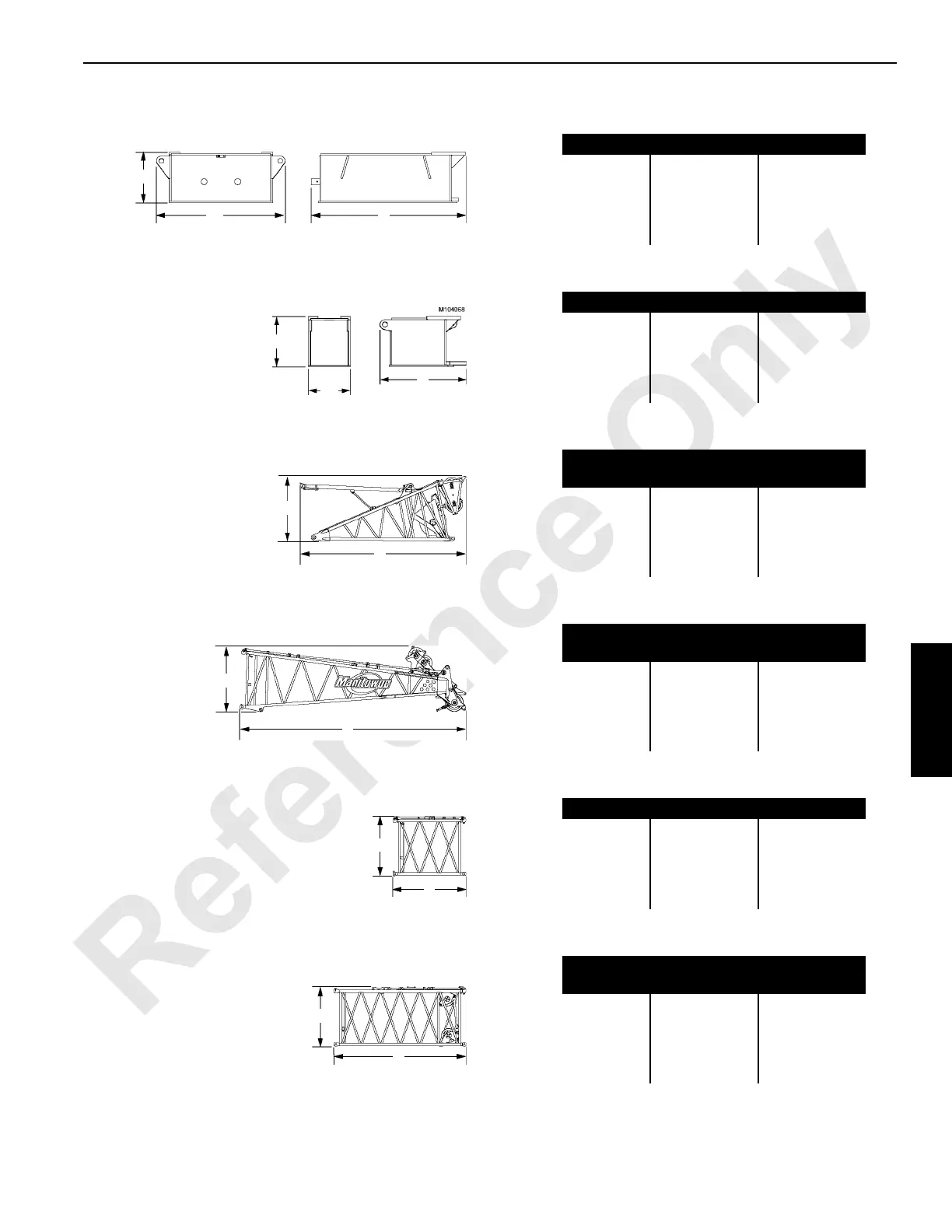

Carbody Counterweight (Series 2 and 3)
Length 7 ft 4 in 2,2 m
Width 6 ft 1 in 1,9 m
Height 2 ft 5 in 0,7 m
Weight 26,500 lb 12 020 kg
Carbody Counterweight (Series 3)
Length 4 ft 0 in 1.2 m
Width 1 ft 11-5/8 in 0.6 m
Height 2 ft 5 in 0.7 m
Weight 4,375 lb 1,985 kg
No. 76 Boom Butt 18 ft (5,5 m) Wire Rope Guide
& Straps
Length 22 ft 2 in 6,8 m
Width 8 ft 0 in 2,4 m
Height 8 ft 8 in 2,6 m
Weight 6,240 lb 2 830 kg
No. 76 Boom Top 30 ft (9,0 m) Wire Rope Guide
& Straps
Length 31 ft 5 in 9,6 m
Width 8 ft 3 in 2,5 m
Height 9 ft 9 in 3,0 m
Weight 9,850 lb 4 468 kg
No. 76 Main Boom Insert 10 ft (3,0 m) & Straps
Length 10 ft 5 in 3,2 m
Width 8 ft 4 in 2,5 m
Height 8 ft 6 in 2,6 m
Weight 2,650 lb 1 202kg
No. 76 Main Boom Insert 18 ft (5,5m) with
Auxiliary Sheaves & Straps
Length 18 ft 8 in 5,7 m
Width 8 ft 4 in 2,5 m
Height 8 ft 6 in 2,6 m
Weight 3,570 lb 1 619 kg
W
L
H
L
H
L
H
L
H
L
H
FIGURE 4-6 continued
W
L
H
