SETUP AND INSTALLATION 14000 OPERATOR MANUAL
4-10
Published 03-29-17, Control # 064-23 v2

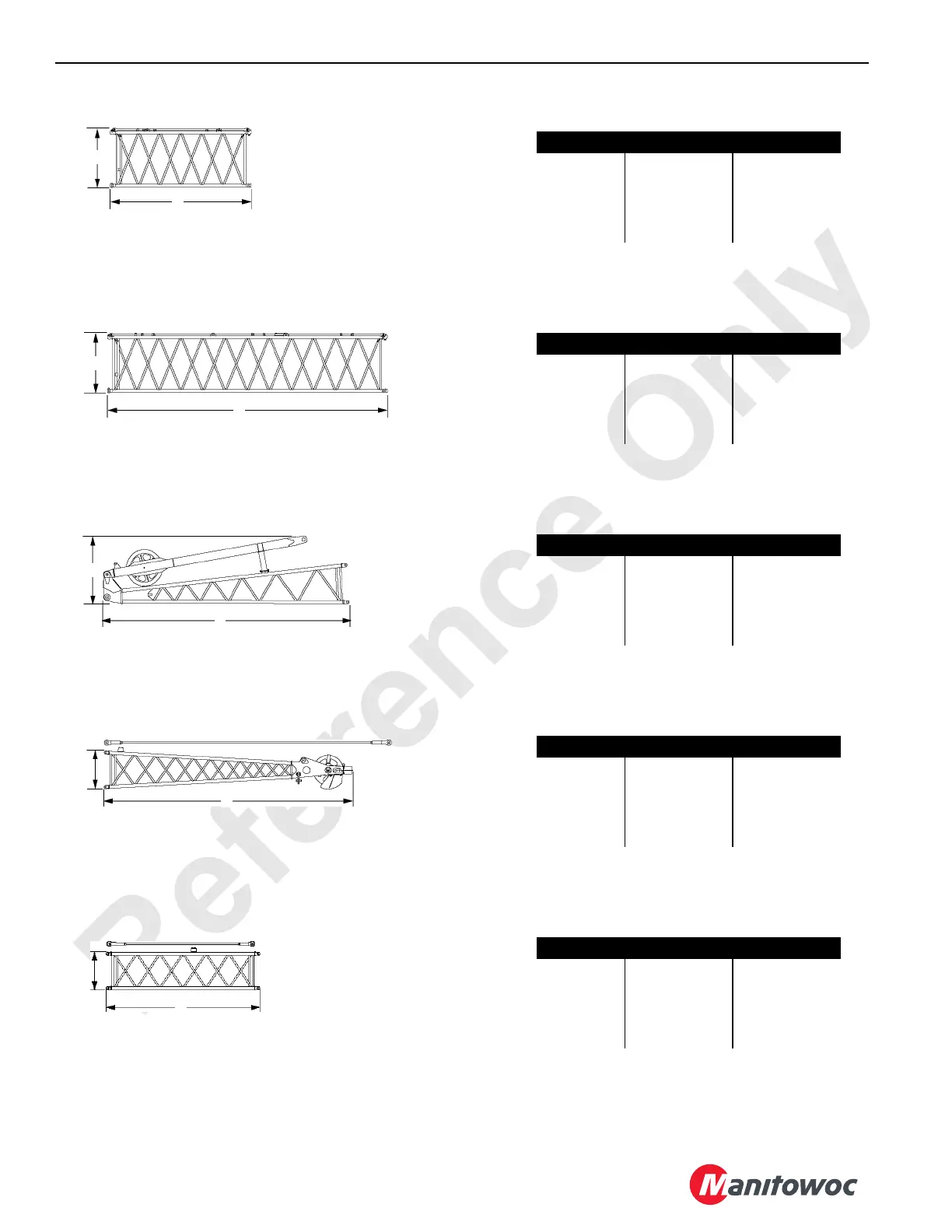

No. 76 Main Boom Insert 20 ft (6,0 m) & Straps
Length 20 ft 3 in 6,2 m
Width 8 ft 4 in 2,5 m
Height 8 ft 6 in 2,6 m
Weight 2,670 lb 1 211 kg
No. 76 Main Boom Insert 40 ft (12,0 m) & Straps
Length 39 ft 11 in 12,2 m
Width 8 ft 4 in 2,5 m
Height 8 ft 6 in 2,6 m
Weight 4,610 lb 2 091 kg
No. 134 Jib Butt 15 ft (4,6 m) with Strut & Stop
Length 15 ft 4 in 4,7 m
Width 2 ft 10 in 0,9 m
Height 4 ft 3 in 1,3 m
Weight 1,400 lb 635 kg
No. 134 Jib Top 15 ft (4,6 m) with Pendants
Length 16 ft 2 in 4,9 m
Width 2 ft 7 in 0,8 m
Height 2 ft 7 in 0,8 m
Weight 1,220 lb 553 kg
No. 134 Jib Insert 10 ft (3,0 m) with Pendants
Length 10 ft 3 in 3,1 m
Width 2 ft 7 in 0,8 m
Height 2 ft 7 in 0,8 m
Weight 480 lb 218 kg
L
H
L
H
L
H
L
H
L
H
FIGURE 4-6 continued
