14000 OPERATOR MANUAL SETUP AND INSTALLATION
4
No. 134 Jib Insert 20 ft (6,0 m) with Pendants
Length 20 ft 3 in 6,2 m
Width 2 ft 7 in 0,8 m
Height 2 ft 7 in 0,8 m
Weight 750 lb 340 kg
Hook Block 30 t (27 mt) for 1 in (26 mm)
Wire Rope
Length 5 ft 11 in 1,8 m
Width 3 ft 2 in 1,0 m
Depth 0 ft 10 in 0,3 m
Weight 1,500 lb 680 kg
Hook Block 220 t (200 mt) for 1 in (26 mm)
Wire Rope
Length 7 ft 6 in 2,3 m
Width 2 ft 9 in 0,8 m
Depth 2 ft 10 in 0,9 m
Weight 5,450 lb 2 034 kg
Upper Boom Point Assembly
Length 8 ft 10 in 2,7 m
Width 1 ft 10 in 0,6 m
Height 2 ft 8 in 0,8 m
Weight 1,098 lb 498 kg
Hook and Weight Ball 15 t (13,6 mt)
Capacity/Swivel 15 t 13,6 mt
Diameter 1 ft 10 in 0,6 m
Length 3 ft 9 in 1,2 m
Weight 1,310 lb 594 kg
L
H
L
W
L
D
L
W
L
H

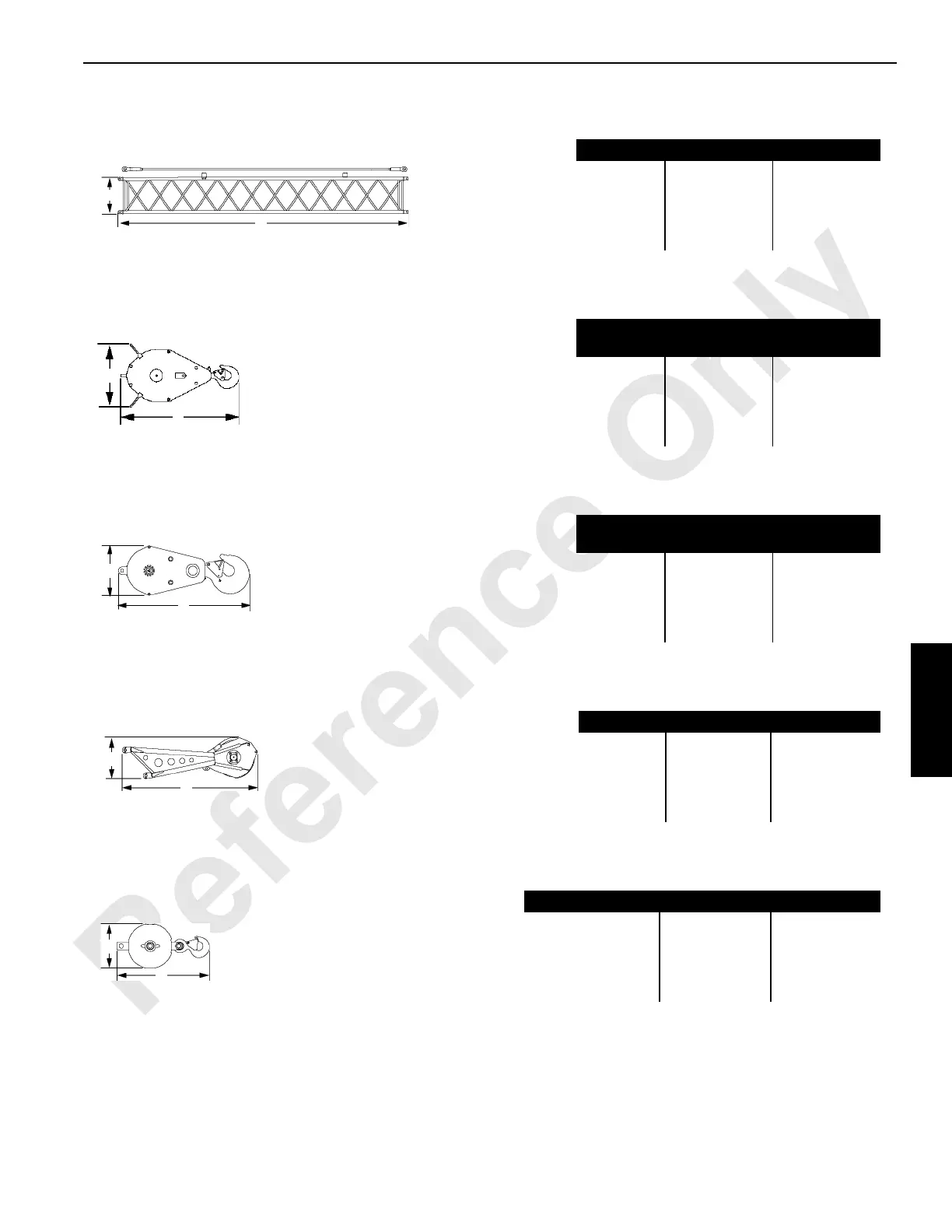

FIGURE 4-6 continued
