14000 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
PREPARING CRANE FOR OPERATION OPERATION
Engine Startup
Read and understand starting instructions in Engine
Operation and Maintenance Manual provided with crane.
1. If used, unplug or turn off engine block heater, engine oil
pan heater, hydraulic tank heaters and any other crane
heaters.
NOTE: Manitowoc recommends using heaters (engine,
hydraulic tank, etc.) to aid start-up when ambient
temperature will be 32°F (0°C) and below.
2. Open hydraulic tank shutoff valve at rear of hydraulic
tank (see Figure 3-17
).
3. Turn ignition switch to RUN position. WAIT TO START
icon will appear on digital display indicating that pre-
heater is warming engine’s air intake. Don’t try to start
engine until icon disappears from display (4-5 seconds).
NOTE: All indicator lights, operating limit buzzer, and
system fault beeper should come on for 2 to 3
seconds when ignition switch is in RUN position; if
not, replace defective parts.
4. Turn ignition switch to START position when WAIT TO
START icon disappears.
NOTE: If engine does not start, check to see if the engine
emergency stop switch or the remote control stop
switch is depressed. If so, pull it out.
WARNING
Read Capacity Charts!
Do not attempt to operate crane without first reading and
understanding capacity charts.
Crane must be rigged and operated according to
instructions given in capacity charts and rigging guides.
Unless otherwise specified in capacity charts, all crane
operations must be performed with crane level to within
one 1% of grade in all directions — 1 ft in 100 ft (0.3 m in
30 m); otherwise, crane could tip.
Do not operate crane, to include raising boom from
ground level, if wind exceeds limits given in Capacity
Charts. Contact your local weather station for wind
velocity.
Failing to comply with Capacity Chart requirements can
result in tipping or structural failure of boom or luffing jib.
Moving Load Hazard!
Operator shall select proper crane capacity chart before
operating.
Unexpected drum motion or improper limit responses can
result if wrong capacity chart is selected.
Limit bypass switches must be in enable position (on) and
all limits with which crane is equipped must be operational
before operating crane.
Avoid injuring personnel in operating area!
Sound horn to alert personnel that operation is about to
begin.
Moving Machinery Hazard!
To avoid injuring personnel or damaging crane and
property:
• Do not start engine if warning or out-of-order sign is
present at start controls
• Check that all controls are off so crane and load do
not move when engine is started
• Check that all personnel are clear of crane before
starting engine. Sound horn to alert personnel
CAUTION
Avoid Machinery Damage!
Before operating crane at start of each shift, perform
preventive maintenance checks and lubrication
requirements listed in Sections 5 and 6 of this manual.
Adjust operator’s seat as shown in Figure 3-16
.
CAUTION
Pump Damage!
Do not start engine until hydraulic tank shutoff valve is
open; otherwise, pumps could cavitate and be damaged.

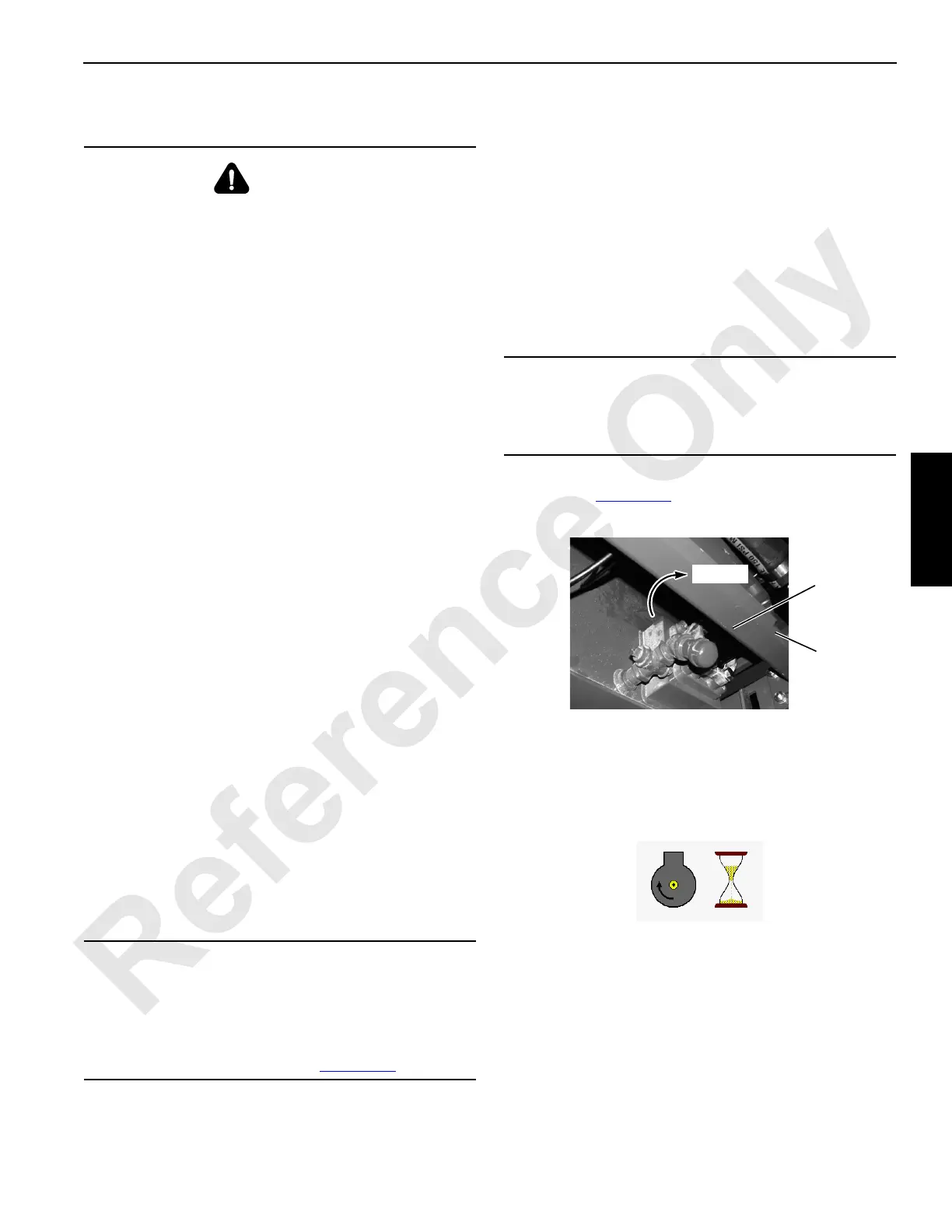

CLOSE
FIGURE 3-17
Front of Hydraulic Tank
Shown
OPEN
Pull Out
to Unlock
P2377
