SETUP AND INSTALLATION 14000 OPERATOR MANUAL
4-2
Published 03-29-17, Control # 064-23 v2

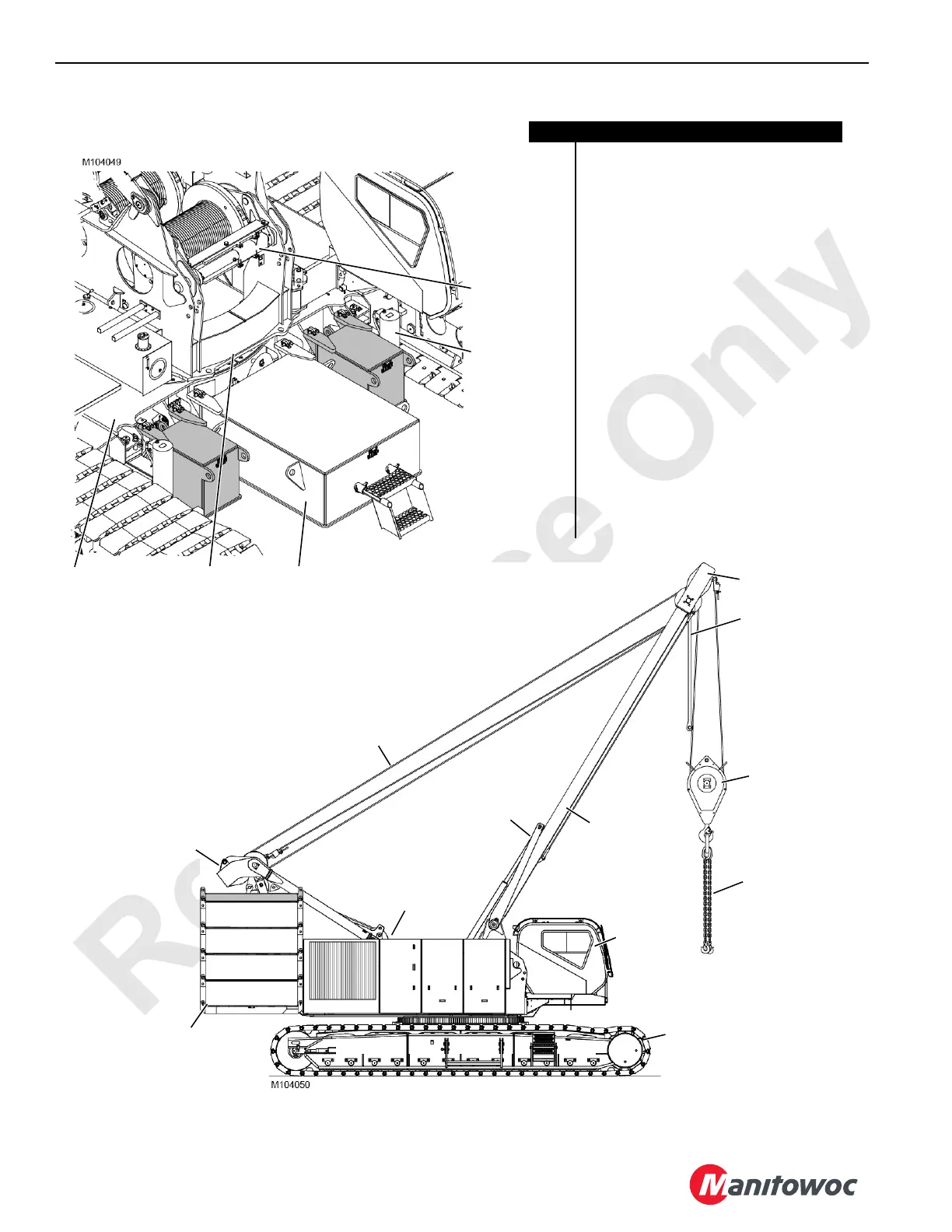

FIGURE 4-1
15
16
17
1413
Item Description
1Live Mast
2 Boom Strap (in Mast)
3 Assembly Block — 30 USt (27 t)
4 4-Leg Chain Sling
5 Handling Pendant (Boom Butt)
6 Mast Arm with Cylinder
7 Operator’s Cab
8Crawler Assembly
9 Crane Counterweight *
(3, 4, or 5 boxes both sides)
10 Boom Hoist (in Rotating Bed)
11 Gantry
12 Boom Hoist Wire Rope
13 Carbody
14 Rotating Bed
15 Carbody Counterweight *
(1 or 3 boxes both ends)
16 Carbody Jack (4 places)
17 Boom Hinge Pins
* Gray Shaded Boxes are Optional Series 3
1
11
8
4
10
7
6
9
12
3
2
5
