SETUP AND INSTALLATION 14000 OPERATOR MANUAL
4-106
Published 03-29-17, Control # 064-23 v2

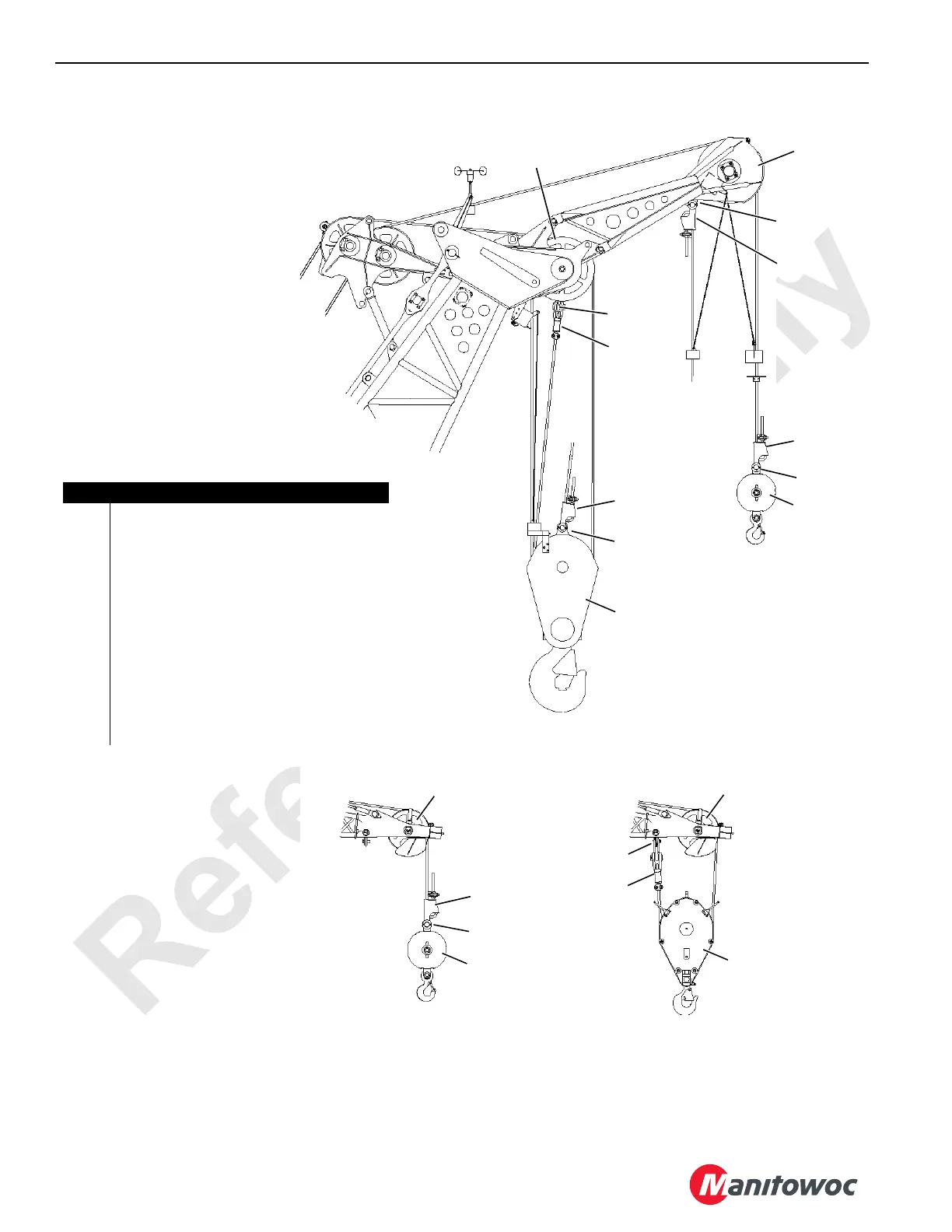

FIGURE 4-55
Item Description
1 Lower Boom Point
2 Load Block (multiple sheave)
3 Upper Boom Point
4Weight Ball
5 Jib Point
6 Load Block (single sheave)
7 Socket and Wedge (Terminator™ style)
8 Dead-End Link
9 Dead-End Lug
10 Swivel
11 Dead-End Adapter Link
12 Button Socket
5
5
Multiple Part
Reeving
1-Part
Reeving
2-Part
Reeving
1-Part
Reeving
2-Part
Reeving
3
1
9
7
7
9
2
4
7
8
7 or 12
10
6
7 or 12
11
10
7
4 or 6
14COM4172
