Manitowoc Published 03-29-17, Control # 064-23 3-11
14000 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
A — Engine Controls (see Page 3-14) B17 Machinery Heaters* F — Load Drum Controls (see Page 3-27)
A1 Engine Ignition Switch B18 Cup Holder F1 Drum 1 (Front Drum) Park Switch
A2 Engine Emergency Stop Switch F2 Drum 2 (Rear Drum) Park Switch
A3 Engine Hand Throttle C — Indicators (see Page 3-21
) F3 Drum 3 (Auxiliary/Luffing Jib) Park Sw
A4 Engine Foot Throttle C1 Fuel Level F4 Drum 1 (Front Drum) Handle
A5 Engine Clutch Lever * C2 Engine Coolant Temperature F5 Drum 2 (Rear Drum) Handle
A6 Battery Disconnect Switch* C3 Engine Oil Pressure F6 Drum 3 (Auxiliary/Luffing Jib) Handle
A7 Regen / Normal / Regen Inhibit Switch C4 Battery Voltage F7 Drum 1 Working Brake Pedal
B — Accessory Controls (see Page 3-18
) C5 Drum Rotation Indicators F8 Drum 2 Working Brake Pedal
B1 Overhead Windshield Wiper Switch C6 Rear View Mirror
B2 Front Windshield Wiper-Washer Switch C7 Boom Angle Indicator * G — Swing Controls (see Page 3-28
)
B3 Climate Control Panel C8 Cab Beacon G1 Swing Park Switch
B4 Crane Work Lights Switch C9 Crane Levels * G2 Swing Handle
B5 Panel Light Switch G3 Swing Holding Brake Switch
B6 Boom Pins Switch D — Special Controls (see Page 3-22
)
B7 Mast Switch D1 Rated Capacity Indicator/Limiter
B8 Dome Light Switch Display and Indicator Lights
B9 Overhead Fan Switch D2 Main Display
B10 Horn Switch D3 Display Touch Pad Controls
B11 Cab Tilt Switch D4 Limit Bypass Switch **
B12a Cigarette Lighter Receptacle (12 Volt) D5 Luffing Jib Limit Bypass Switch **
B12b Power Supply Receptacle (12 Volt) D6 Seat Switch
B13 Programming Receptacle
B14 Fire Extinguisher E — Boom Hoist Controls (see Page 3-26
)
B15 Radio/CD Player (optional) E1 Drum 4 (Boom Hoist) Park Switch
B16 Overhead Sun Shade and Tinted Visor E2 Drum 4 (Boom Hoist) Handle

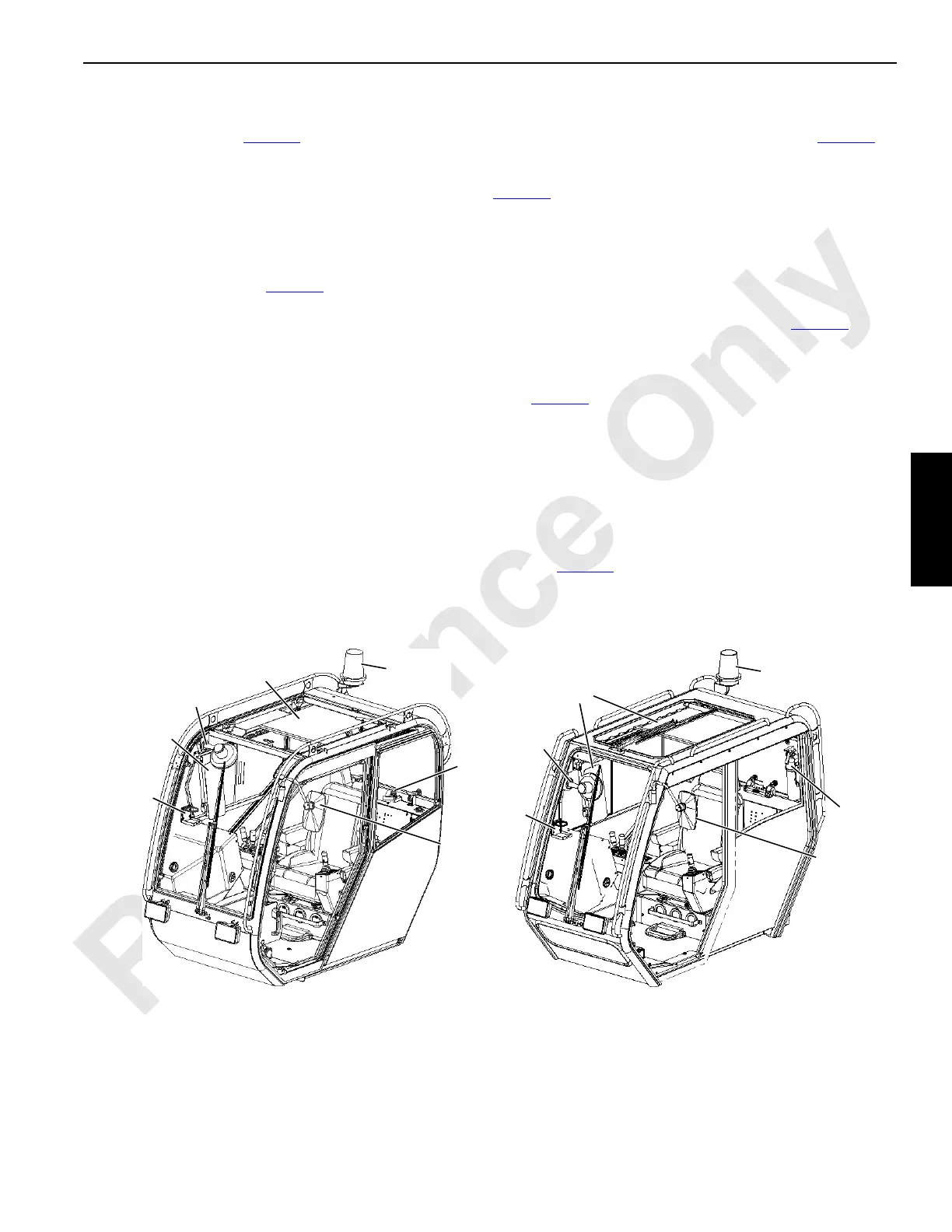

FIGURE 3-3
B14
B14
B9
B9
C6
C6
14COM3-12
14COM3-14
B16
B16
B18
B18
B16
C8
C8
Past Production
Current Production
