Maintenance work on the carrier
7.3 Engine
07.12.2017
Maintenance manual 3 302 649 en 7 - 19
GMK4090
Check the level
of dirt

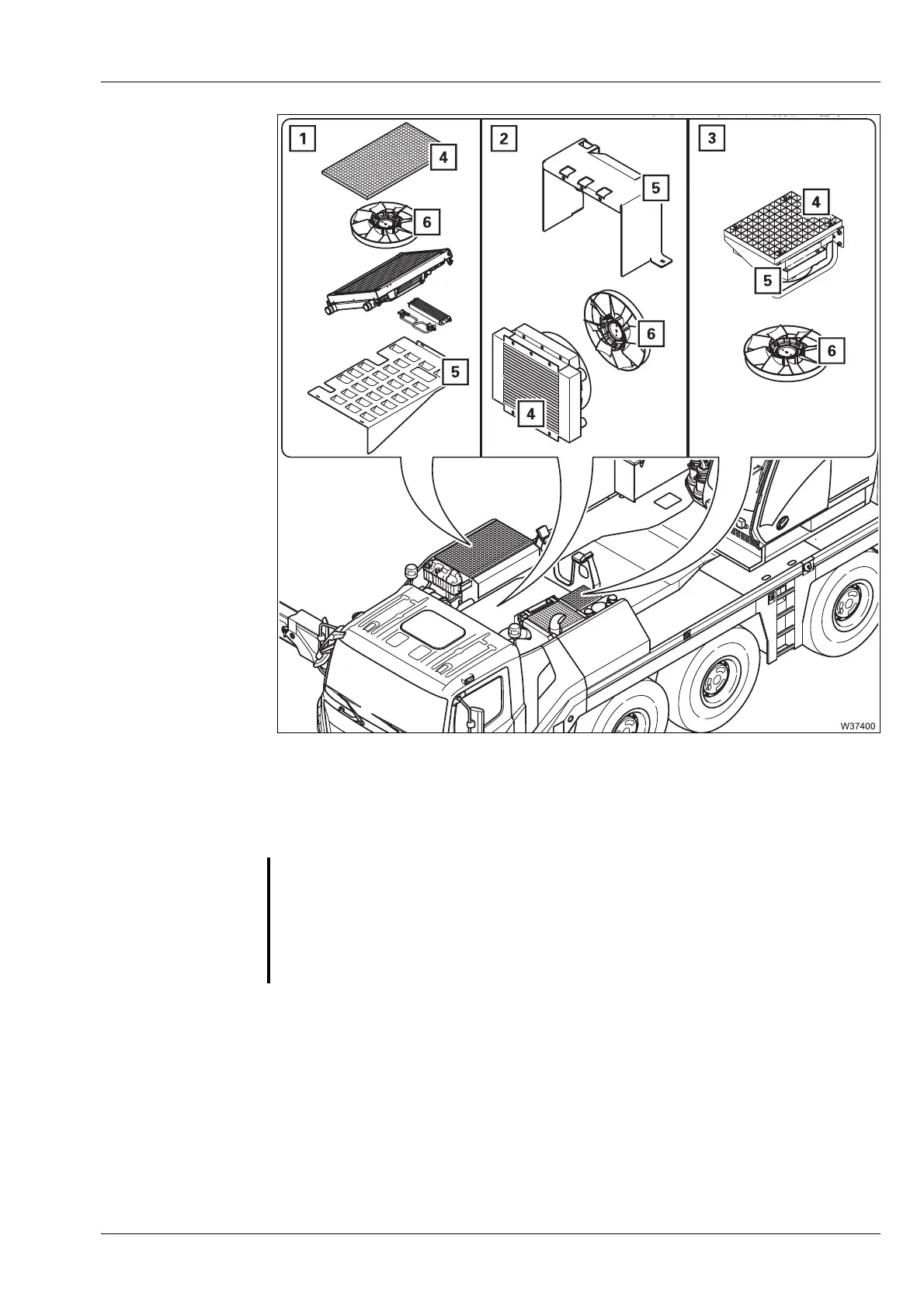

The radiator units (1), (2) and (3) are protected by grilles (4) and plates (5).
The fan impellers (6) are located under the grilles. When the engine is run-
ning, the fan wheel rotates under the grille!
s
G
Risk of injury at the fan wheel
When the fan wheel is rotating, it can trap and cut off amputate your fin-
gers. Never reach into a fan wheel that is rotating. Do not push any tools
through the grille to clean it.
Always stop the engine before attempting to clean the fan wheel and
radiator fins.
