Manitowoc GROVE GMK4090 Maintenance Manual

Maintenance work on the carrier
7.3 Engine
07.12.2017
Maintenance manual 3 302 649 en 7 - 15
GMK4090
7.3.2 Topping up the oil
Data on the prescribed oil specification; à Engine manufacturer’s documentation.
Oil
Prerequisites – The truck crane must be level.
– The engine is not running and is secured against unauthorised use;
à p. 2 - 3.
Topping up the oil

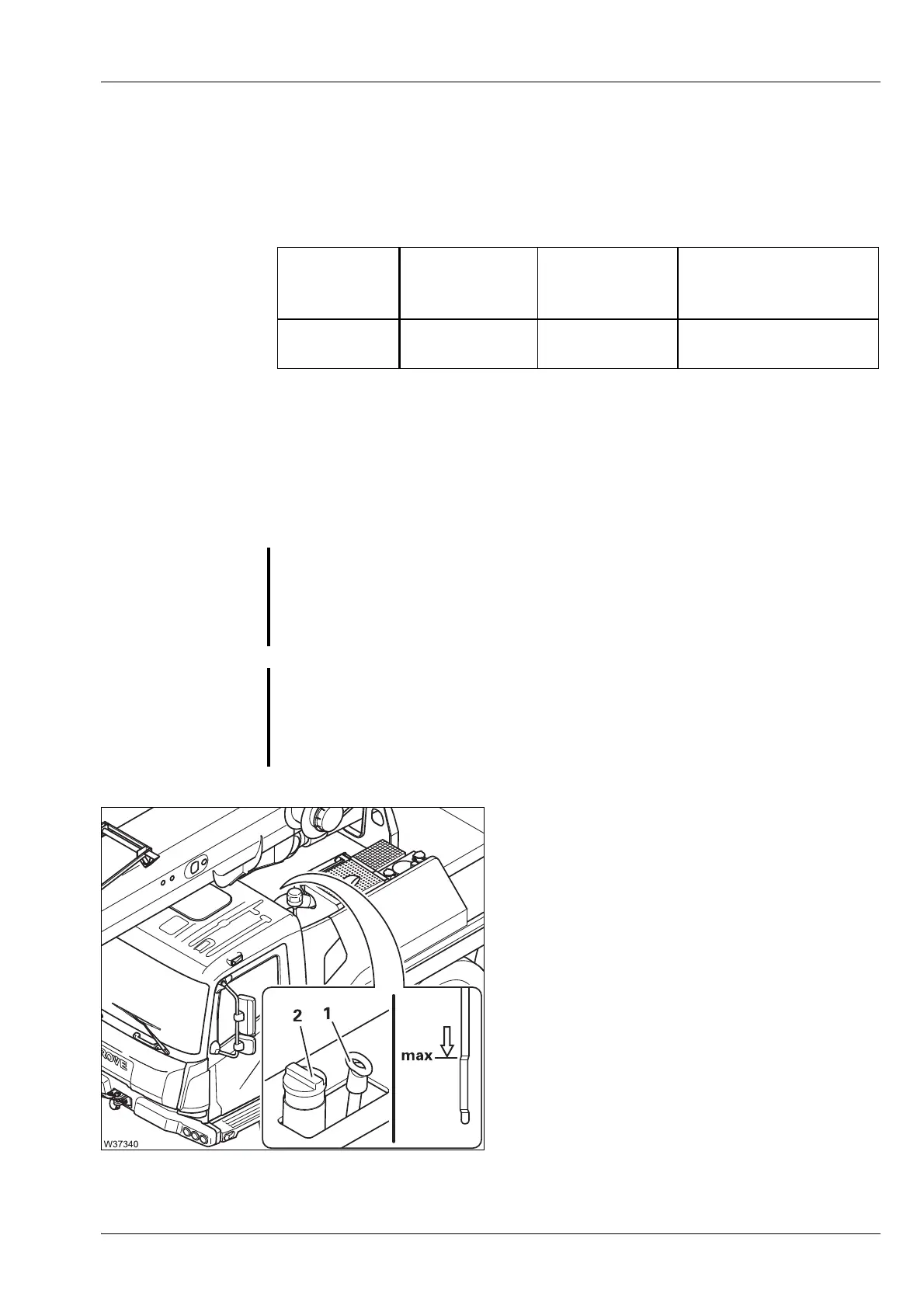

• Add oil through the filler neck (2) up to the
max. mark.
• Close the filler neck with the cap.
• Insert the dipstick (1) into the dipstick tube
after checking the oil level.
Engine oil
in litres (gal)
Designation
acc. to
DIN 51502
Specifications
Classification
GROVE part no.
34 (9,0) HD - CD MIL-L 2104 C
DB 228.5
SAE 5 W-30
03329588
S
Risk of damage to the engine if the oil level is too high
Do not overfill; the oil level may not be higher than the max. mark (arrow
marking). Drain off oil if necessary;
à Engine manufacturer’s documentation.
G
Risk of burns when engine is hot
During operation, the engine and add-on parts reach temperatures up
to 400 °C (750 °F). Wear appropriate protective gloves and be careful not
to touch hot parts.
