Maintenance work on the carrier
7.4 Fuel system
07.12.2017
Maintenance manual 3 302 649 en 7 - 29
GMK4090
7.4.2 Replacing fuel filter 1
Spare parts
and tools
– Receptacle, about 5 l (1.5 gal); à p. 2 - 4.
– Torque wrench for a torque of 55 Nm (40.5 lbf ft).
Prerequisites – The truck crane must be level and on outriggers; à Operating manual.
– The main boom must be fully raised; à Operating manual.
– The engine is not running and is secured against unauthorised use;
à p. 2 - 3.
– If the fuel is dirty: Reduce the maintenance interval.
Changing

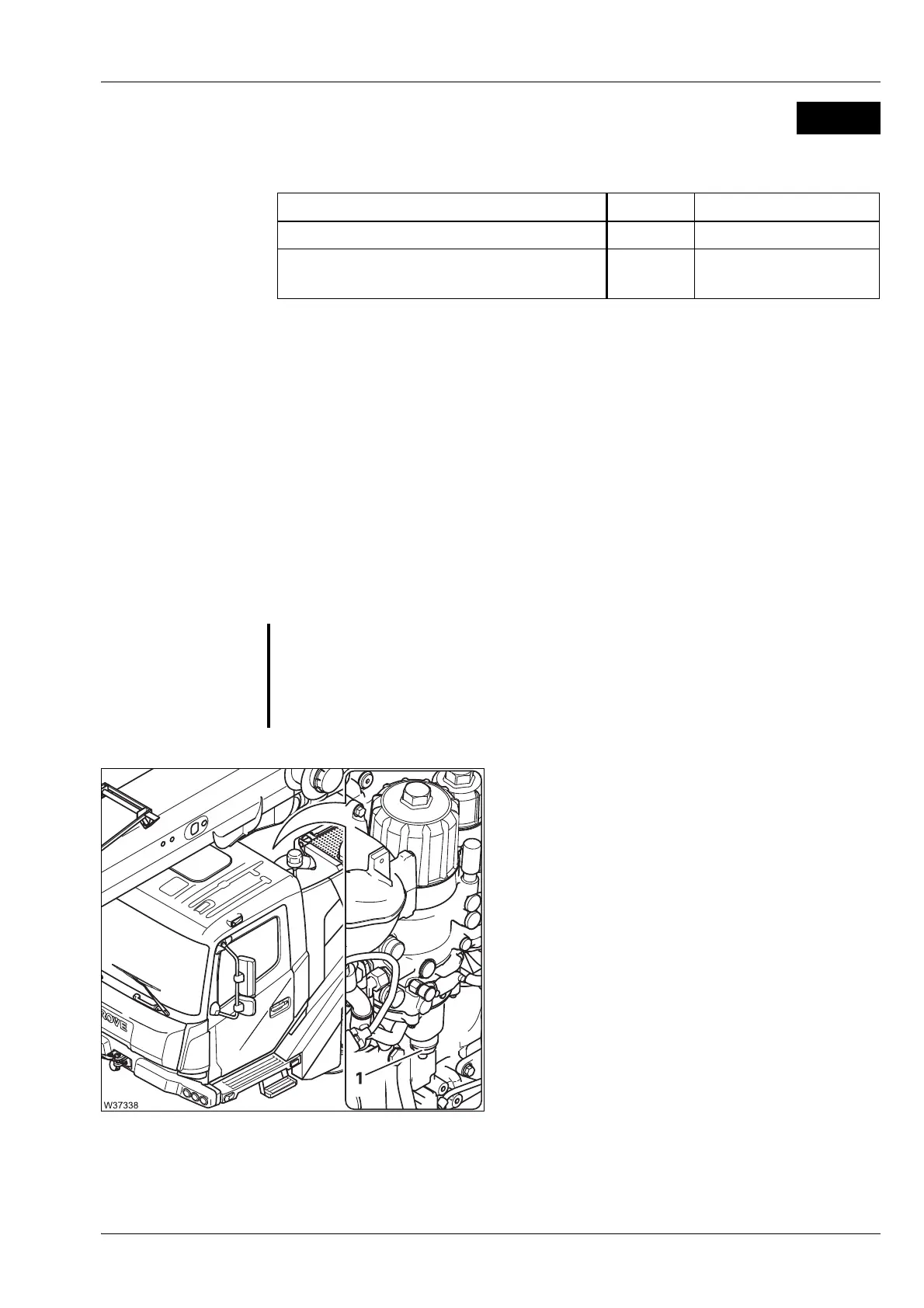

• Place a receptacle underneath the filter.
• Open the valve (1) and let the consumable
drain out.
s
Designation Quantity GROVE part no.
Filter (large) 1 04161991
alternatively:
Set for both filters 1 + 2 (large + small)
1 04183793
O
Risk of environmental damage due to leaking consumables
Always let consumables drain into suitable receptacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
