Maintenance work on the carrier
7.9 Axle lines
07.12.2017
Maintenance manual 3 302 649 en 7 - 57
GMK4090
3. axle line

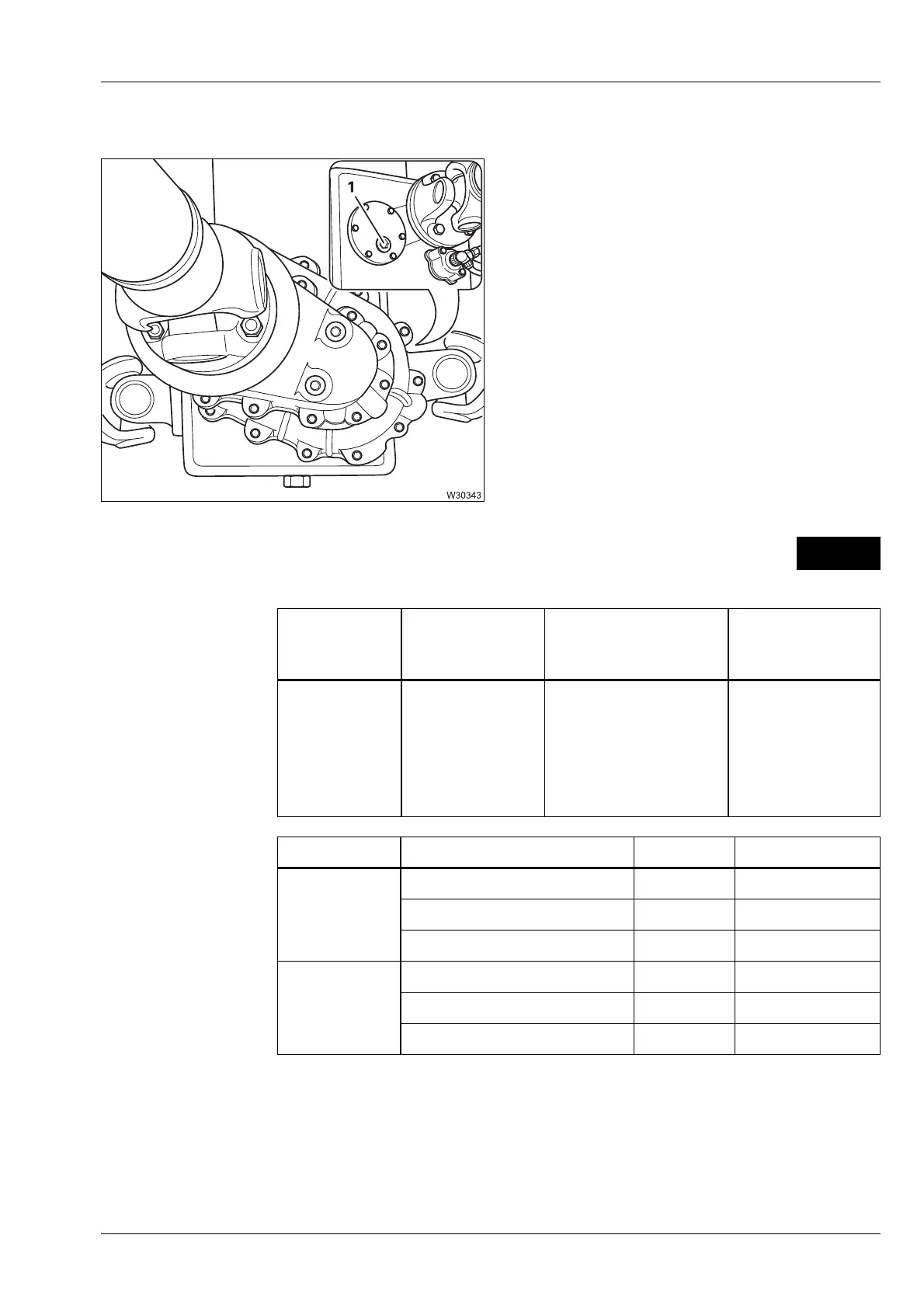

The drive has two oil chambers.
• Remove the screw (1).
• Check that the oil reaches the lower edge of
the openings.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up with oil; à p. 7 - 59.
7.9.3 Axle centre drives – changing the oil
Oil, spare parts,
tools
1)
Additional equipment (2nd driven axle line)
– Receptacle, about 20 l (5.0 gal); à p. 2 - 4.
s
M 12
Gear oil
in litres (gal)
Designation
acc. to
DIN 51502
Specifications
Classification
GROVE part no.
Axle line 1+4:
each 13.0 (3.5)
Axle lines 2:
15 (4,0)
Axle lines 3:
16,5 (4,4)
C - LPF MIL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE 90
ISO - VG 220
00552891
for drive Designation Quantity GROVE part no.
8 x 6 x 8
Gasket 30 x 36 Cu DIN 7603
3 00117151
Gasket 24 x 29 Cu DIN 7603 2 00117145
Gasket 36 x 42 Cu DIN 7603 3 01371208
8 x 8 x 8
1)
Gasket 30 x 36 Cu DIN 7603 4 00117151
Gasket 24 x 29 Cu DIN 7603 2 00117145
Gasket 36 x 42 Cu DIN 7603 4 01371208
