Maintenance work on the carrier
7.9 Axle lines
7 - 58 3 302 649 en Maintenance manual
GMK4090
07.12.2017
Prerequisites – The truck crane must be raised on outriggers or parked over an inspec-
tion pit.
– The engine is not running and is secured against unauthorised use;
à p. 2 - 3.

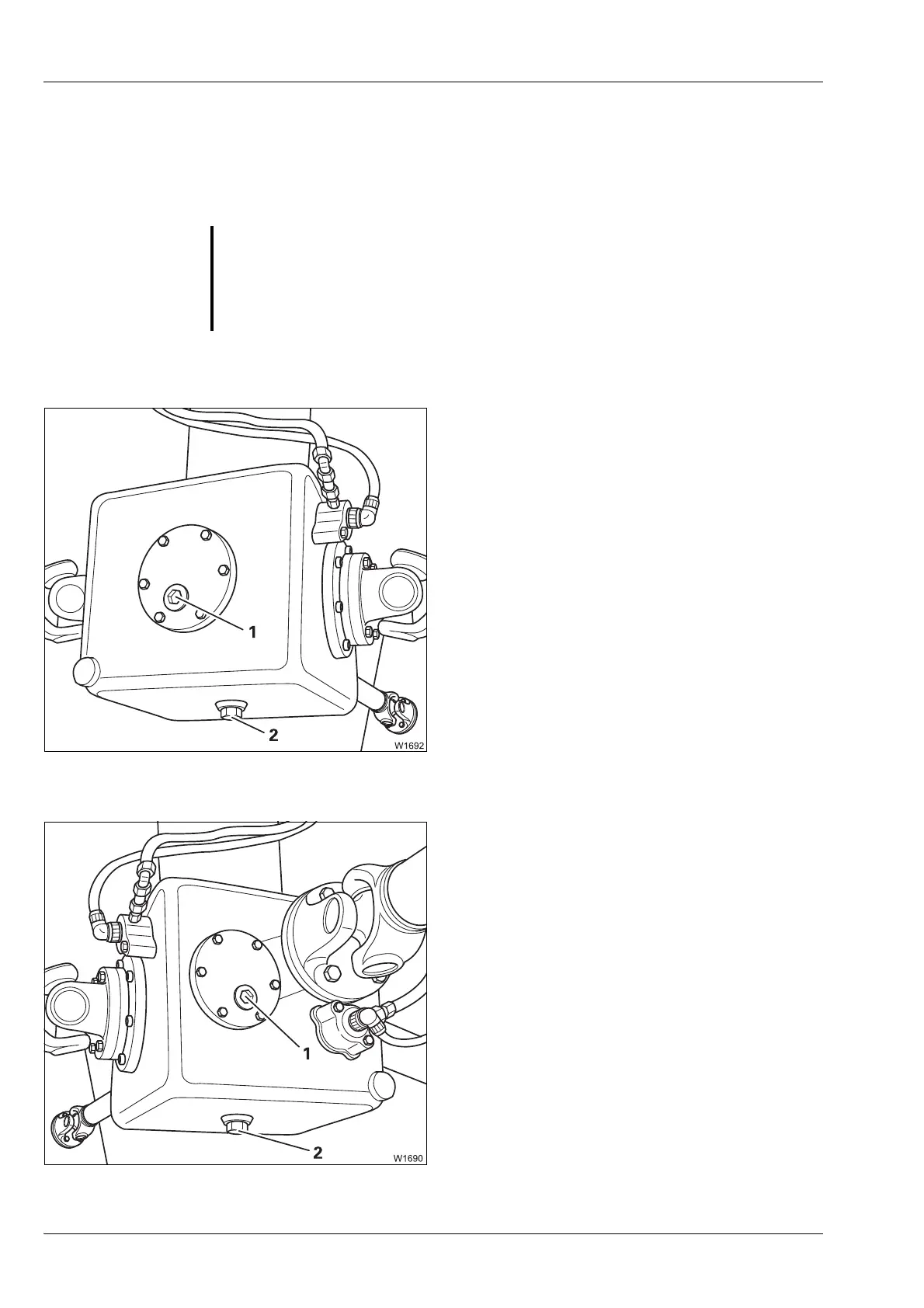

1st and 4th axle
lines
• Place a receptacle under the screw (2).
• Unscrew bolts (1) and (2) and allow the oil
to drain.
• Fit a new gasket and tighten the screw (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the screw (1).
2nd axle line This axle centre drive is present only with the 8 x 8 x 8 drive.
• Place a receptacle under the screw (2).
• Unscrew bolts (1) and (2) and allow the oil
to drain.
• Fit a new gasket and tighten the screw (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the screw (1).
O
Risk of environmental damage due to leaking consumables
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
