Maintenance work on the carrier
7.2 Symbols for maintenance work
07.12.2017
Maintenance manual 3 302 649 en 7 - 11
GMK4090
7.2 Symbols for maintenance work
CCS • Check the symbols on the CCS start menu (Crane Control System) in the
driver's cab each day before starting operations.
• The Start menu shows the most important measurements and the
Maintenance submenu shows all the outstanding warning messages;
à Operating manual.
Maintenance
submenu

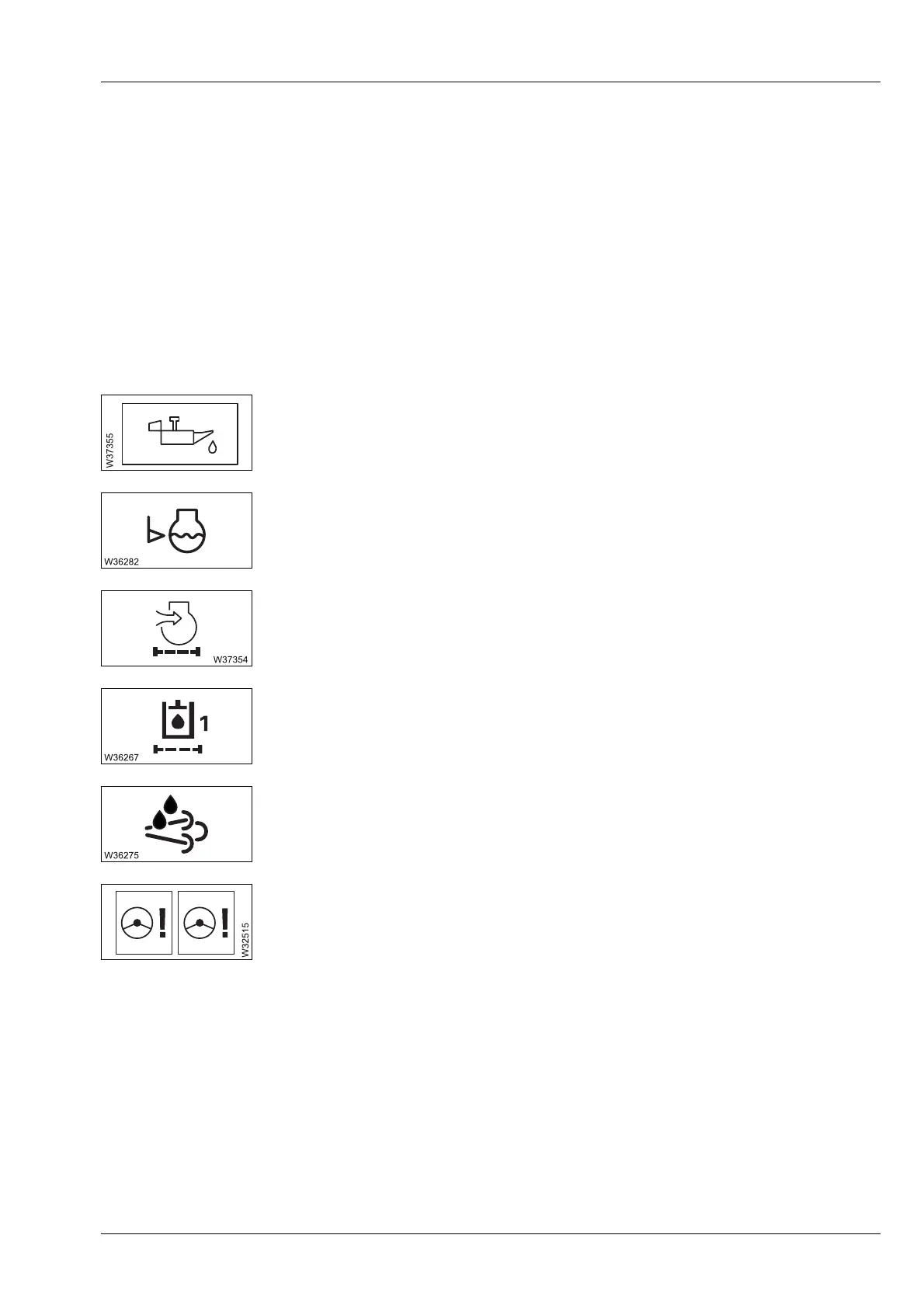

If one of the symbols is displayed, you must carry out the appropriate
maintenance work:
– Oil pressure; à p. 7 - 13,
– Coolant level; à p. 7 - 17,
– Air filter; à p. 7 - 16
– Hydraulic oil filter; à p. 7 - 106,
– AdBlue system; à p. 7 - 34,
– Steering monitoring; à Checking the steering monitoring, p. 7 - 83.
