Maintenance work on the superstructure
8.9 Cable drums
07.12.2017
Maintenance manual 3 302 649 en 8 - 65
GMK4090
8.9 Cable drums
8.9.1 Maintenance of the slip ring assemblies
The slip ring assemblies are located in:
Spare parts
and tools
– Clean, lint-free cloth.
– Dry, oil-free compressed air.
Prerequisites – All counterweight sections must be removed – the opening for cable drum
2 at the rear of the turntable must be accessible;
à Operating manual.
– The main boom is set down on the support; à Operating manual.
– The engine is not running and is secured against unauthorised use;
à p. 2 - 3.
– The battery master switch must be switched off in the driver's cab;
à Operating manual.
s

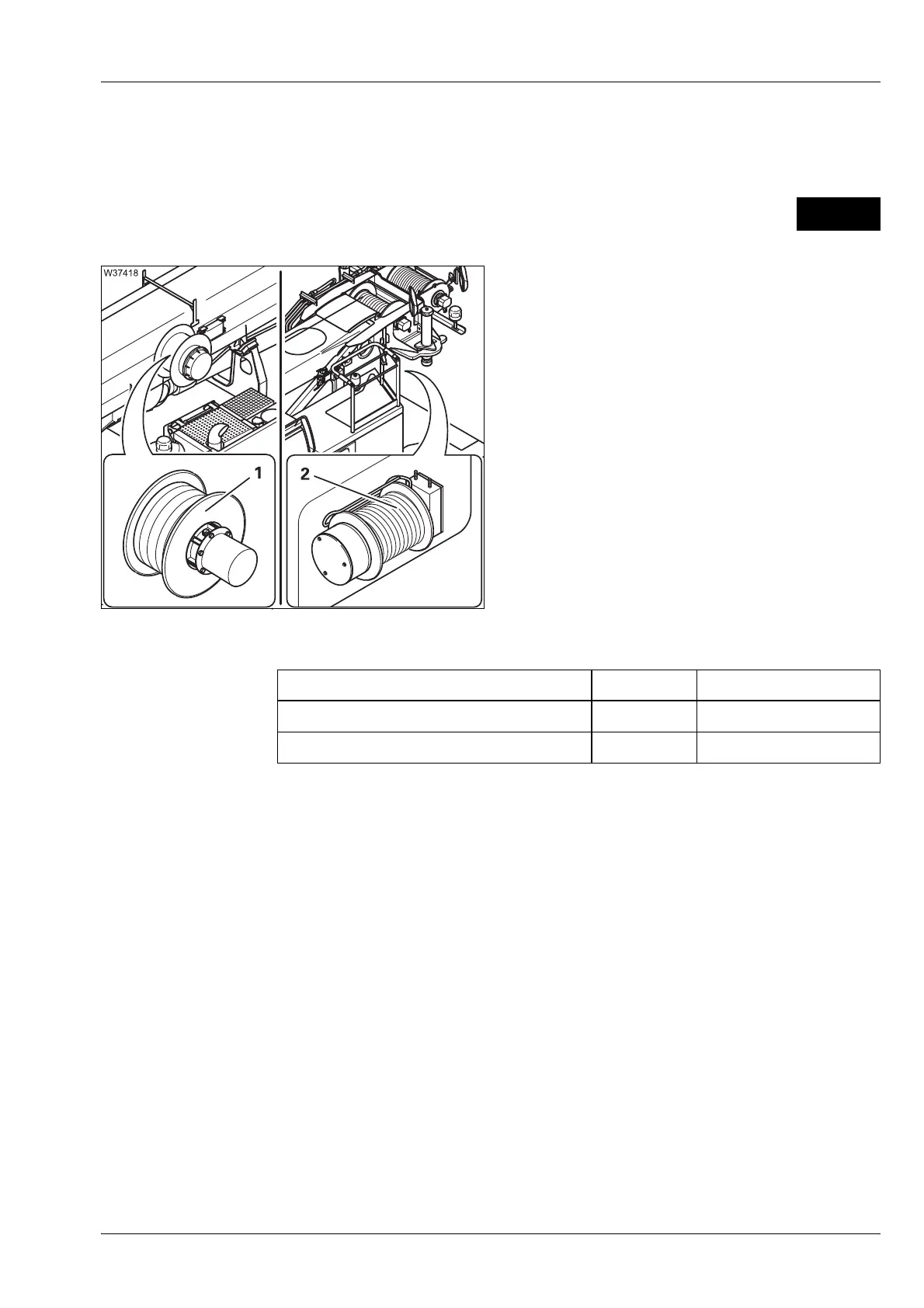

1 Cable drum 1
2 Cable drum 2
Designation Quantity GROVE part no.
Cover gasket for cable drum 1 1 03138891
Cover gasket for cable drum 2 1 03138894
