Maintenance work on the carrier
7.4 Fuel system
07.12.2017
Maintenance manual 3 302 649 en 7 - 31
GMK4090
7.4.3 Replacing fuel filter 2
Spare parts
and tools
– Receptacle, about 5 l (1.5 gal); à p. 2 - 4.
– Torque wrench for a torque of 15 Nm (11 lbf ft).
Prerequisites – The truck crane must be level and on outriggers; à Operating manual.
– The main boom must be fully raised; à Operating manual.
– The engine is not running and is secured against unauthorised use;
à p. 2 - 3.
– The fuel must be drained from the fuel filter 1; à p. 7 - 29.
– If the fuel is dirty: Reduce the maintenance interval.
Changing

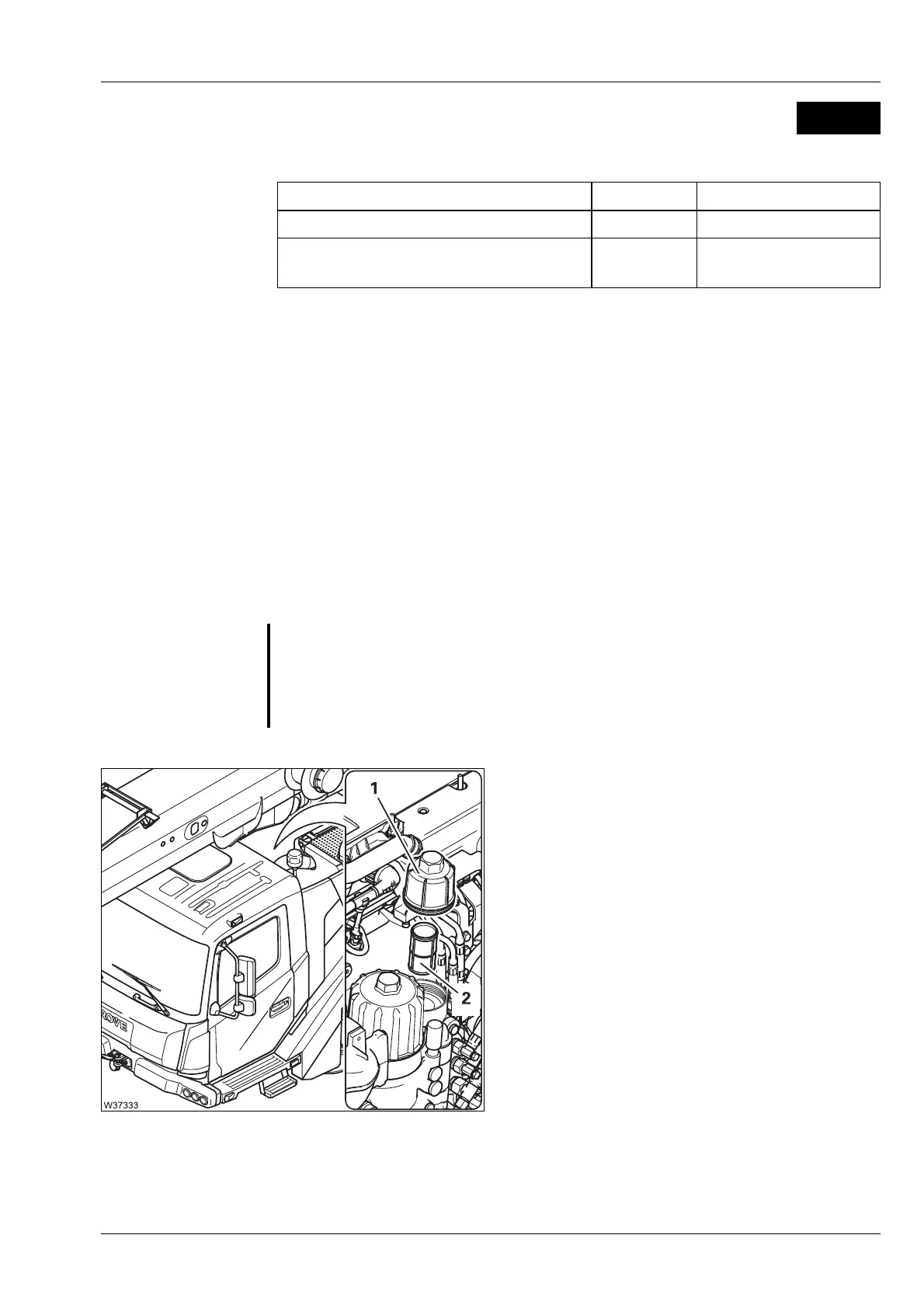

• Place a receptacle underneath the filter.
• Remove the cap (1).
• Remove the old filter (2) from the casing.
• Place the old filter (2) in the receptacle.
• Insert a new filter (2) into the casing.
• Fasten the cover (1) – torque 15 Nm (11 lbf ft);
à Engine manufacturer’s documentation.
• Remove the receptacle.
s
Designation Quantity GROVE part no.
Filter (small) 1 04161566
alternatively:
Set for both filters 1 + 2 (large + small)
1 04183793
O
Risk of environmental damage due to leaking consumables
Always let consumables drain into suitable receptacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
