Manitowoc GROVE GMK4090 Maintenance Manual

Maintenance work on the superstructure
8.3 Hoists
07.12.2017
Maintenance manual 3 302 649 en 8 - 9
GMK4090
8.3 Hoists
8.3.1 Checking the oil level
Spare parts
and tools
Prerequisites – The truck crane must be level and in on-road mode; à Operating manual.
– The engine is not running and is secured against unauthorised use;
à p. 2 - 3.
Checking the
oil level

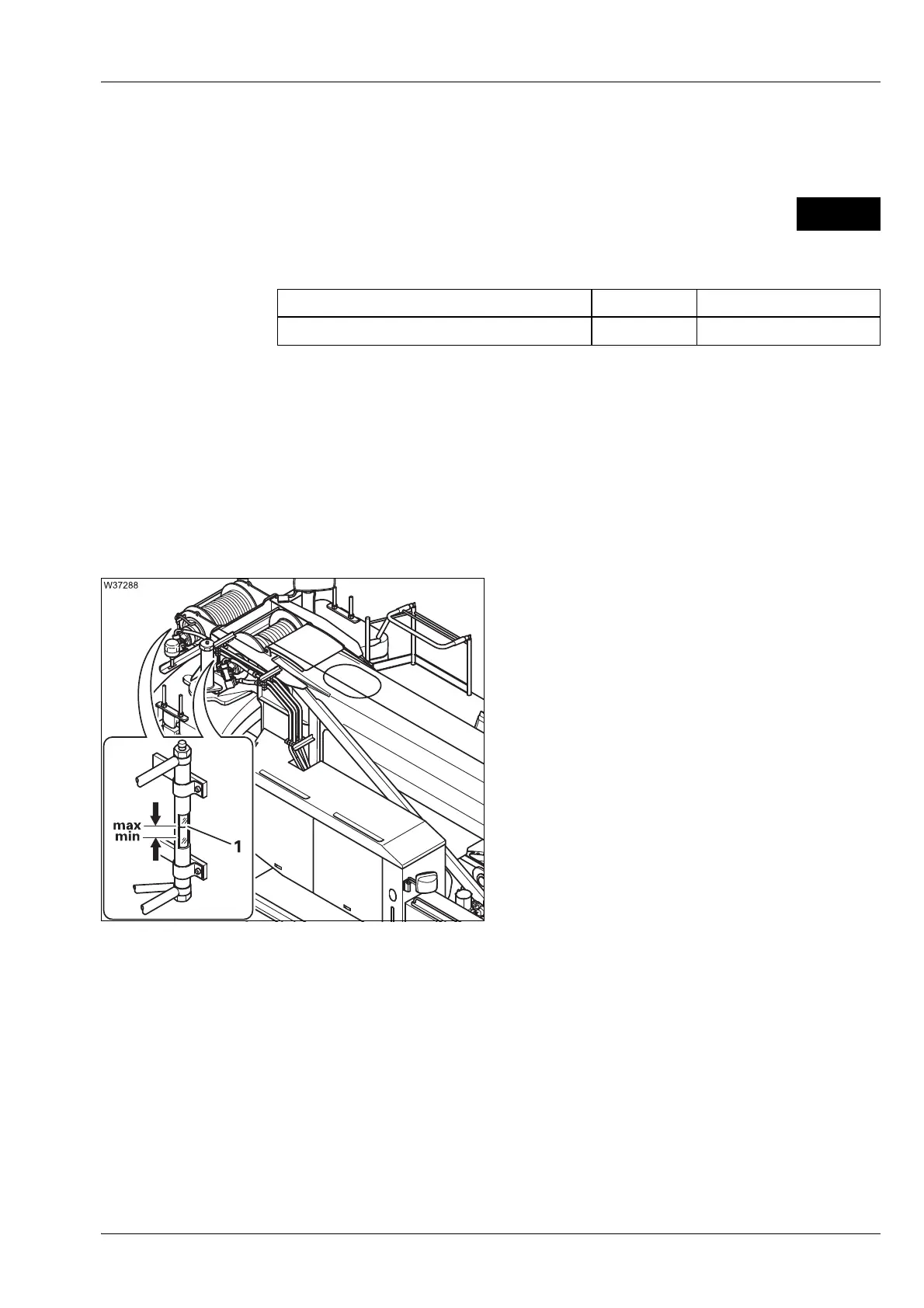

• Check that the oil level is visible between
the Min. and Max. marks (1).
If the oil level is too low
• Top up the oil; à p. 8 - 11.
W
Designation Quantity GROVE part no.
Gasket 18 x 24 Cu DIN 7603 4 01377793
