Maintenance work on the carrier
7.9 Axle lines
7 - 56 3 302 649 en Maintenance manual
GMK4090
07.12.2017
1. and 4th axle
lines

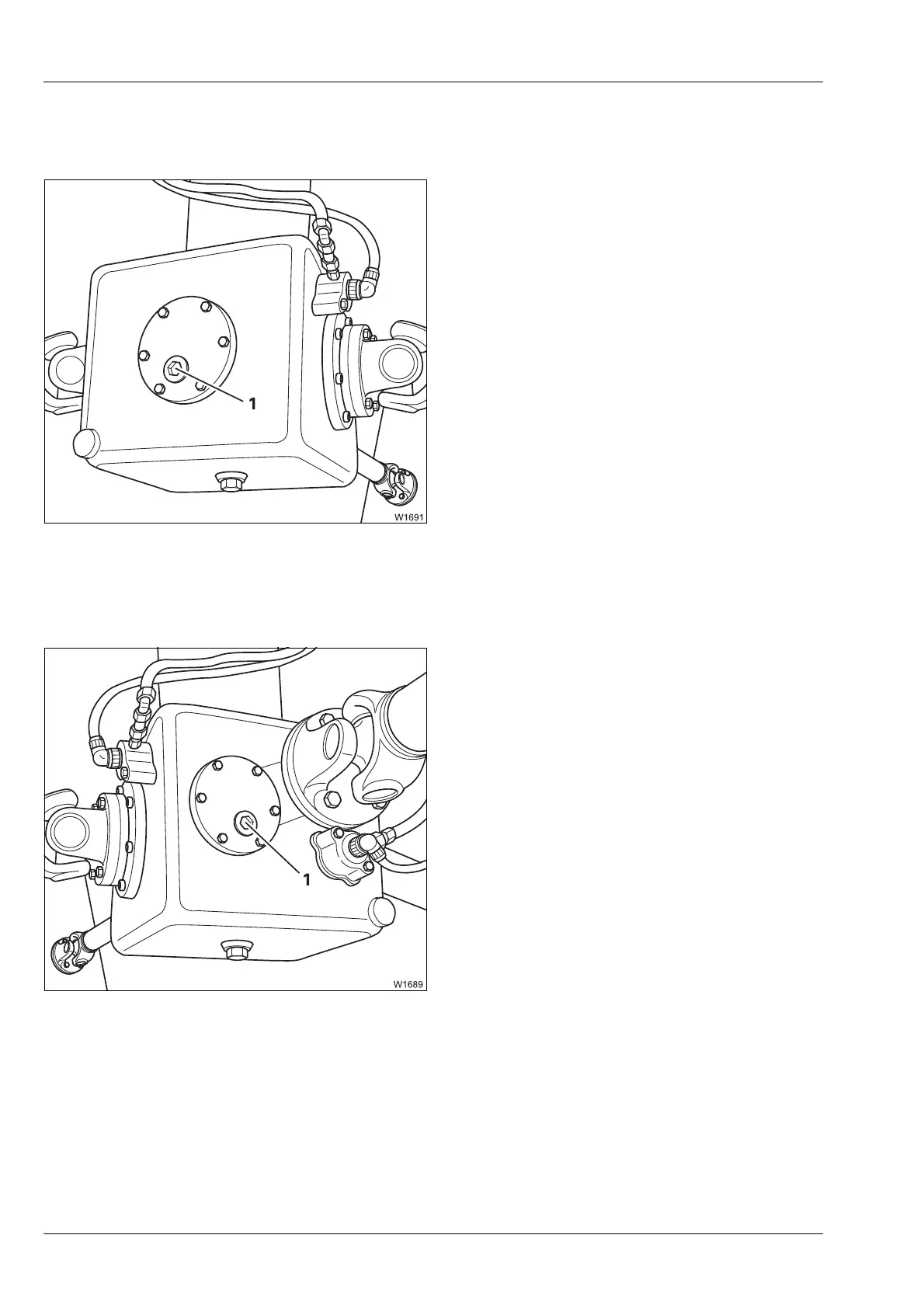

• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up with oil; à p. 7 - 58.
2nd axle line This axle centre drive is present only with the 8 x 8 x 8 drive.
• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up with oil; à p. 7 - 58.
