Maintenance work on the carrier
7.6 Transmission
07.12.2017
Maintenance manual 3 302 649 en 7 - 43
GMK4090

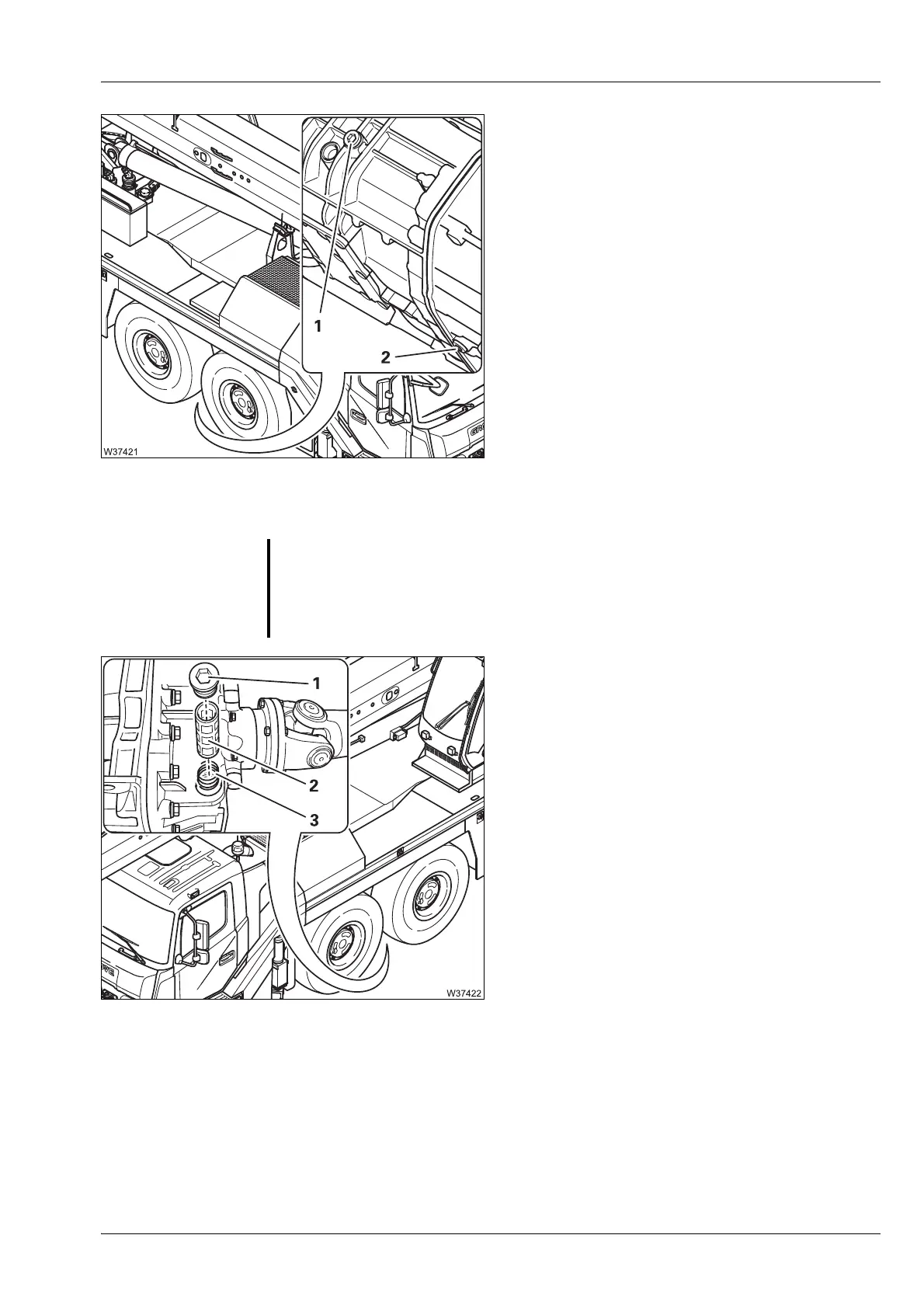

• Place a receptacle under the screw (2).
• Unscrew bolts (1) and (2) and allow the oil
to drain.
• Clean the drain plugs.
• Replace the gasket and tighten the drain
plug (2) – torque 25 Nm (18.4 lbf ft).
Cleaning the filter
• Remove the drain plug (1).
• Take the filter (2) and the spring (3) out and
clean them.
Replace any damaged parts.
• Insert the spring and filter into the opening.
• Replace the gasket and tighten the drain
plug – torque 60 Nm (44.25 lbf ft).
s
G
Risk of injury due to spring tension
The oil filter bolt is spring-loaded. Release it carefully and be careful of the
spring tension.
