Maintenance work on the carrier
7.9 Axle lines
07.12.2017
Maintenance manual 3 302 649 en 7 - 63
GMK4090
Draining oil

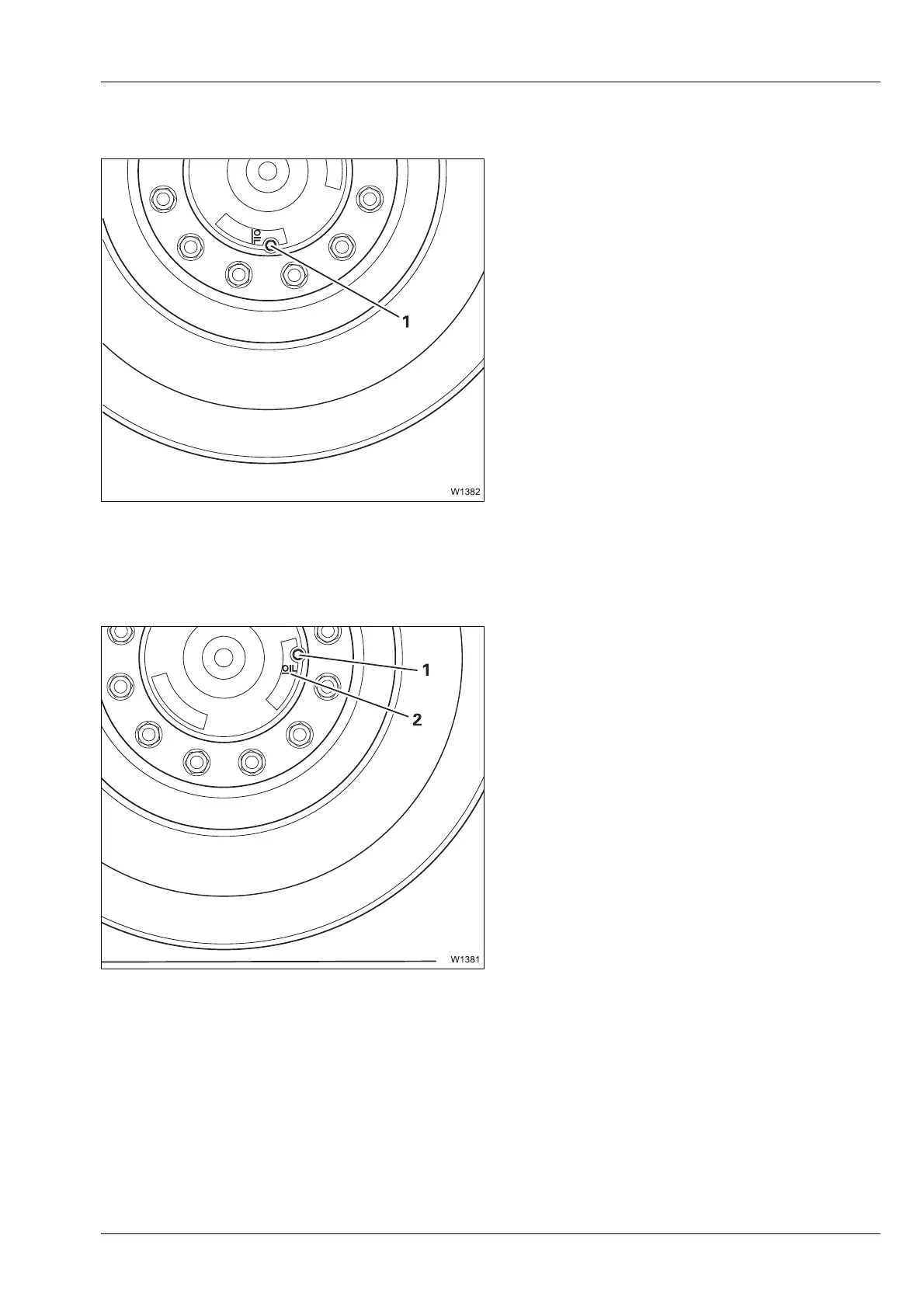

• Change the oil on all final drives in the same
way.
• Turn the wheel until the bolt (1) is at the
bottom.
• Use a drain channel and place a receptacle
under the screw.
• Remove the screw and let the oil drain out.
Topping up the oil
• Turn the wheel until the marking (2) is hori-
zontal and is on the right, next to the centre
of the axle.
• Top up the oil through the opening.
• Fit a new gasket and tighten the screw (1).
