Manitowoc Grove GRT9165 User Manual

Grove Published 7-23-2020, Control # 668-02 4-145
GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4
Engine Faults

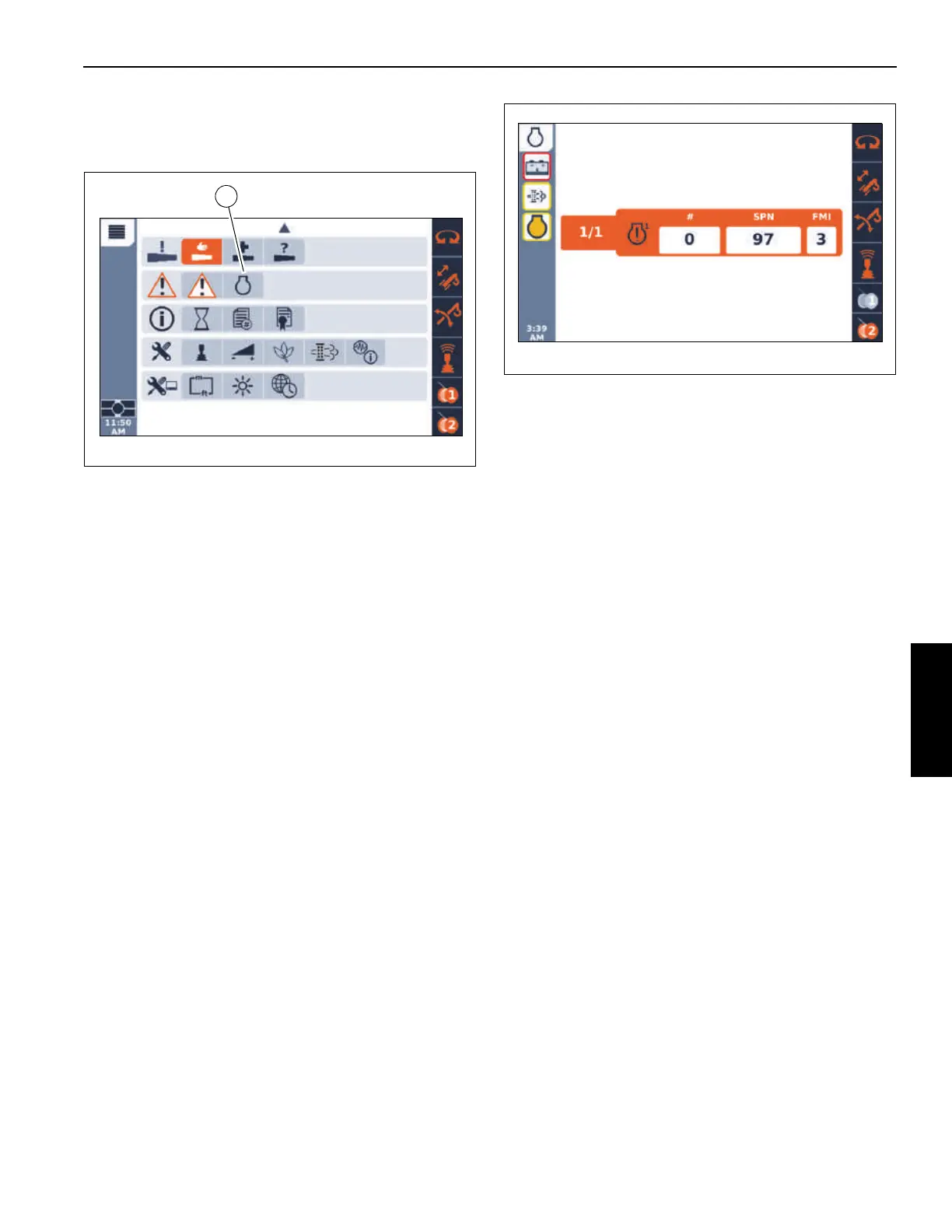

Select the Engine Faults icon (1, Figure 4-148) under the
Faults Menu Group to view active engine fault codes.
The Engine Fault Code function screen (Figure 4-149)
displays active engine fault codes.
If several fault codes are active, use the Jog Dial or Arrow
Buttons on the Navigation Control Pad to select the arrow at
the top or bottom of the screen to scroll through the codes
Engine fault codes cannot be cleared by the operator without
first correcting the malfunction, then cycling the ignition key
to the Off position and back to the On position.
FIGURE 4-148
9902-3
1
FIGURE 4-149
9902-34
