GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
Virtual Walls Limitation
If the Virtual Wall Limitation is selected from the menu of
WRL Limitations, then the Virtual Wall Limitation Screen will
be shown (Figure 4-120).
Using the Left Arrow and Right Arrow (4, Figure 4-69)
Function Keys on the Display or the Jog Dial (5, Figure 4-70)
changes the object highlighted on the screen.
As the arrow keys are pressed, the highlight will move
between the objects, with the color orange typically meaning
that the object is selected and can be affected by
subsequent actions. In Figure 4-120, one can see that the
wall Point “A “Symbol is selected since it has the orange
color highlighting.
5
1
2
3
4
6

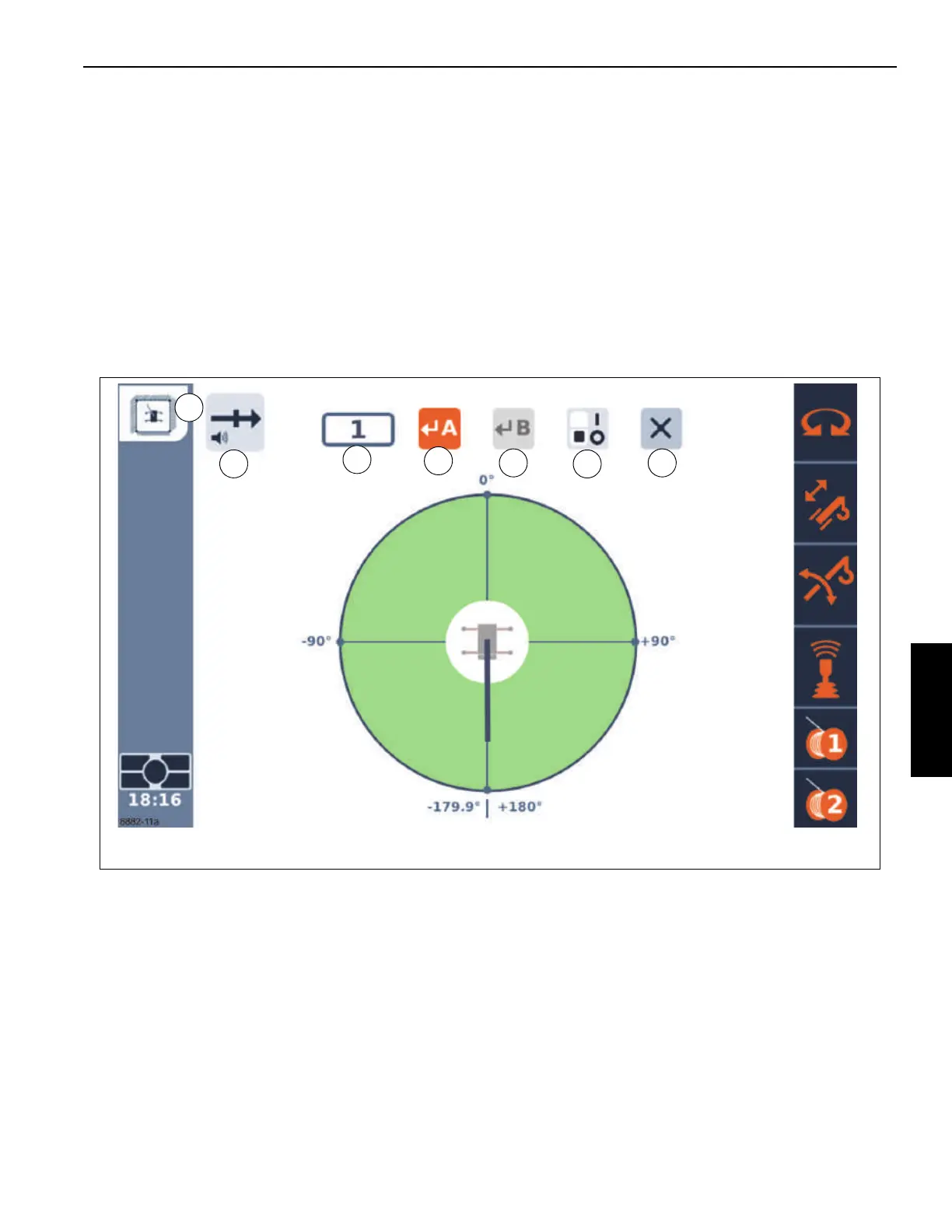

FIGURE 4-120
8882-11a
7
Virtual Wall Limitation Screen
