GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4
Menu Screen
The Menu Screen (Figure 4-83) of the ODM is accessed by
doing one of the following:
• Press the Screen Toggle Button (1, Figure 4-82) at the
Jog Dial to select the ODM screen control, then press
the Menu Button (2).
- or -
• Press the Menu Button (3, Figure 4-82) on the
Navigation Control Pad at the ODM.
The ODM Menu Screen (Figure 4-83) has the following
menu items for operating the crane:
• Tele-automation Menu Group (1)
- Semi-Automatic Mode (2)
- Boom Configurator Mode (3)
• Crane Function Menu Group (4)
- Outrigger Extend/Retract (5)
- Counterweight Removal/Installation (6)
- 360° Superstructure Lock/Unlock (7)
- Boom Extension Deployment/Stowage (8)
- Suspension Raise/Lower (9)
- Boom Removal/Installation (10)
• Working Range Limiter Menu Group (11)
- Boom Height Limitation (12)
- Boom Angle Limitation (13)
- Radius Limitation (14)
- Swing Angle Limitation (15)
- Virtual Walls (16)
• Emergency Program Menu Group (17)
- Manual Telescope Mode (18)
- Emergency Telescope Mode (19)
- Telescope Recovery Mode (20)
• Faults Menu Group (21)
- Crane Faults (22)
- Engine Faults (23)
• Information Menu Group (24)
- Operating Hours (25)
- Software Versions (26)
- Legal Notices (27)
• User Settings Menu Group (28)
- Controller Curve (29)
- Controller Speed (30)
- ECO Mode (31)
- Exhaust System Cleaning (32)
- Service Menu (33)
• Screen Settings Menu Group (34)
- Units of Measure (Metric/Imperial) (35)
- Display Screen Brightness (36)
- Time Set (37)

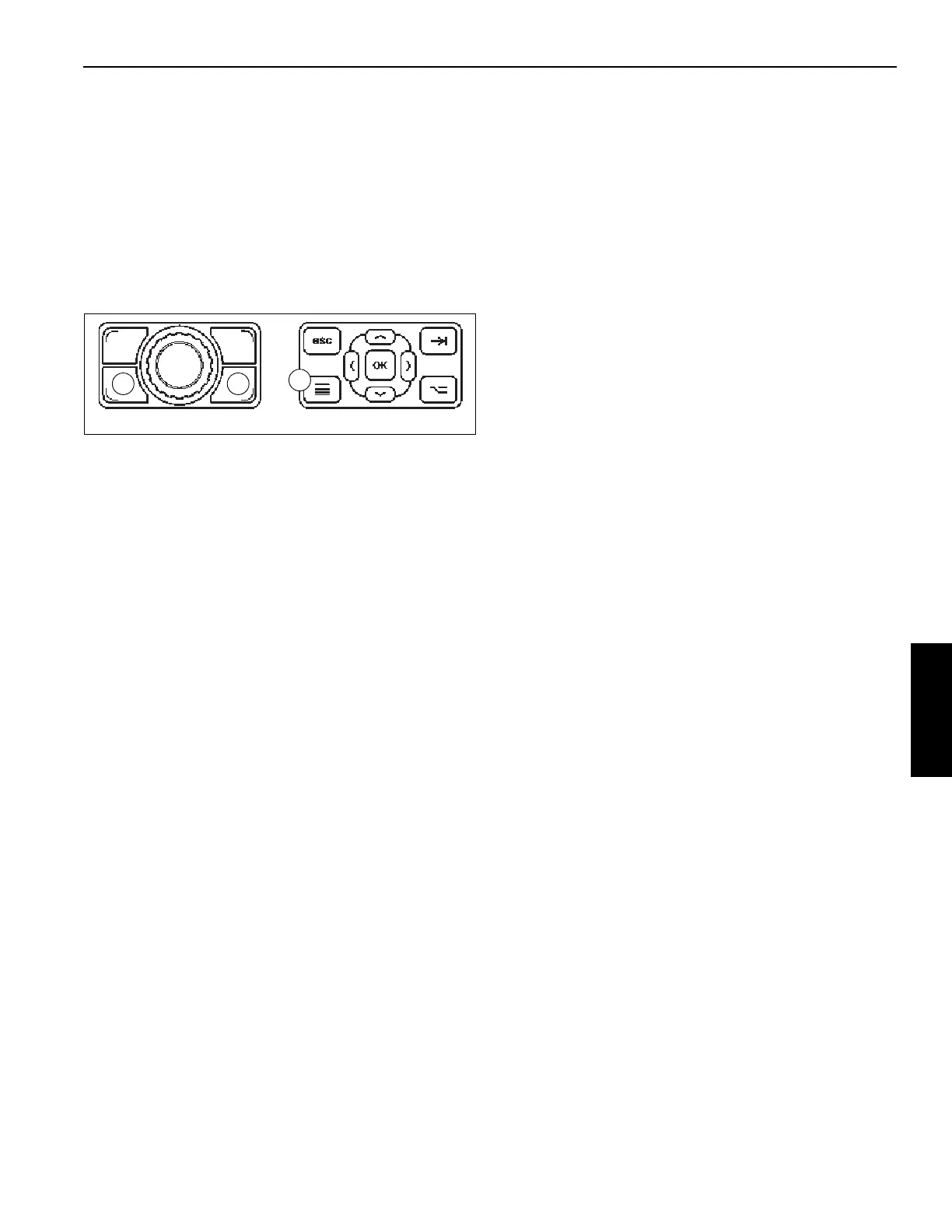

FIGURE 4-82
12
3
