Manitowoc Grove GRT9165

Grove Published 7-23-2020, Control # 668-02 3-53
GRT9165 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
3

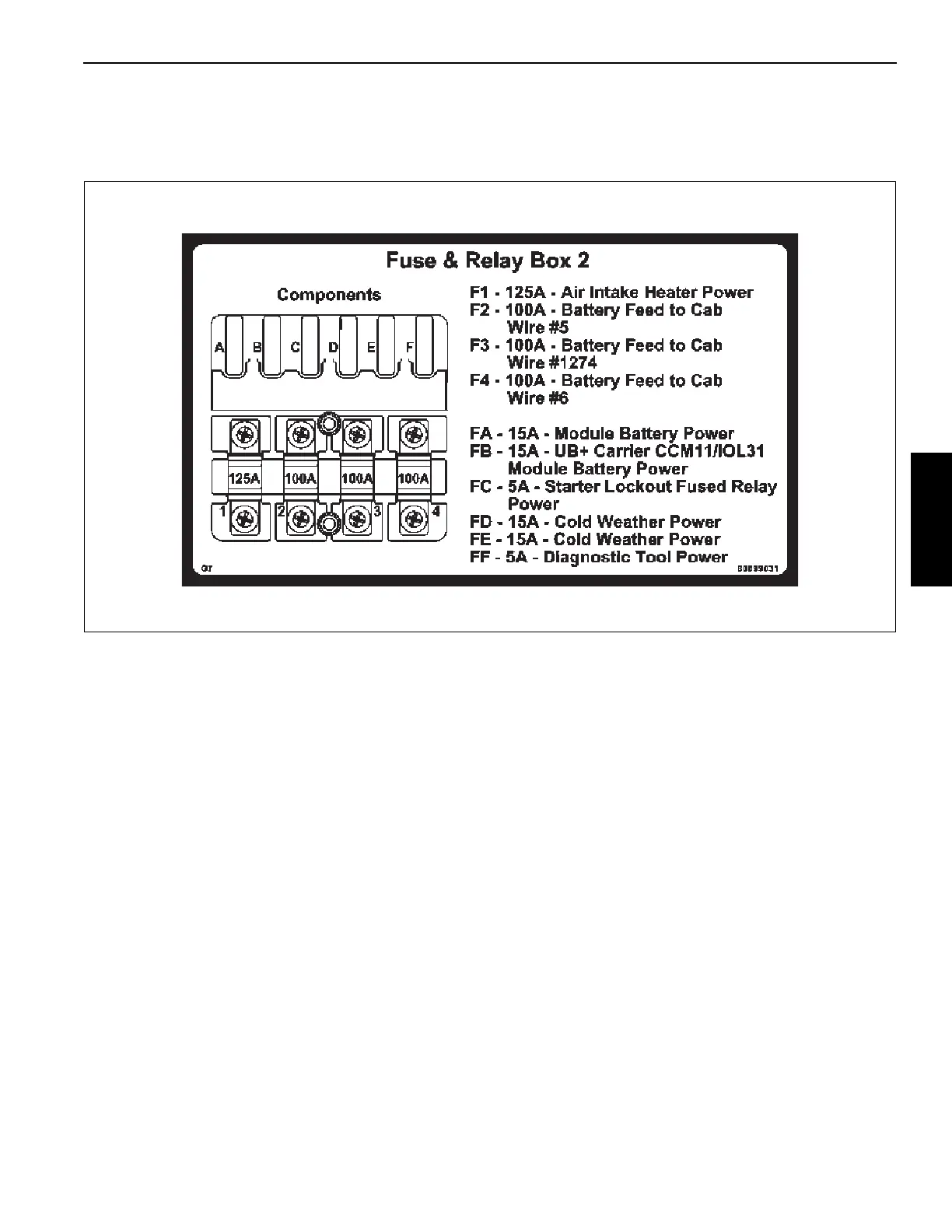

Fuse Box #2 – Carrier
The Fuse Box #2 is located on the left side of the carrier in
the battery box and includes fuses listed in Figure 3-41.
FIGURE 3-41
9861-2
