GRT9165 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
3
CONTROLS AND FEATURES AT REAR OF
CAB
Controls and features located at rear of the cab (Figure 3-30)
include the radio, fan, fire extinguisher, user manual holder,
fuse and relay panel, and limit bypass switch for non-CE
certified cranes.

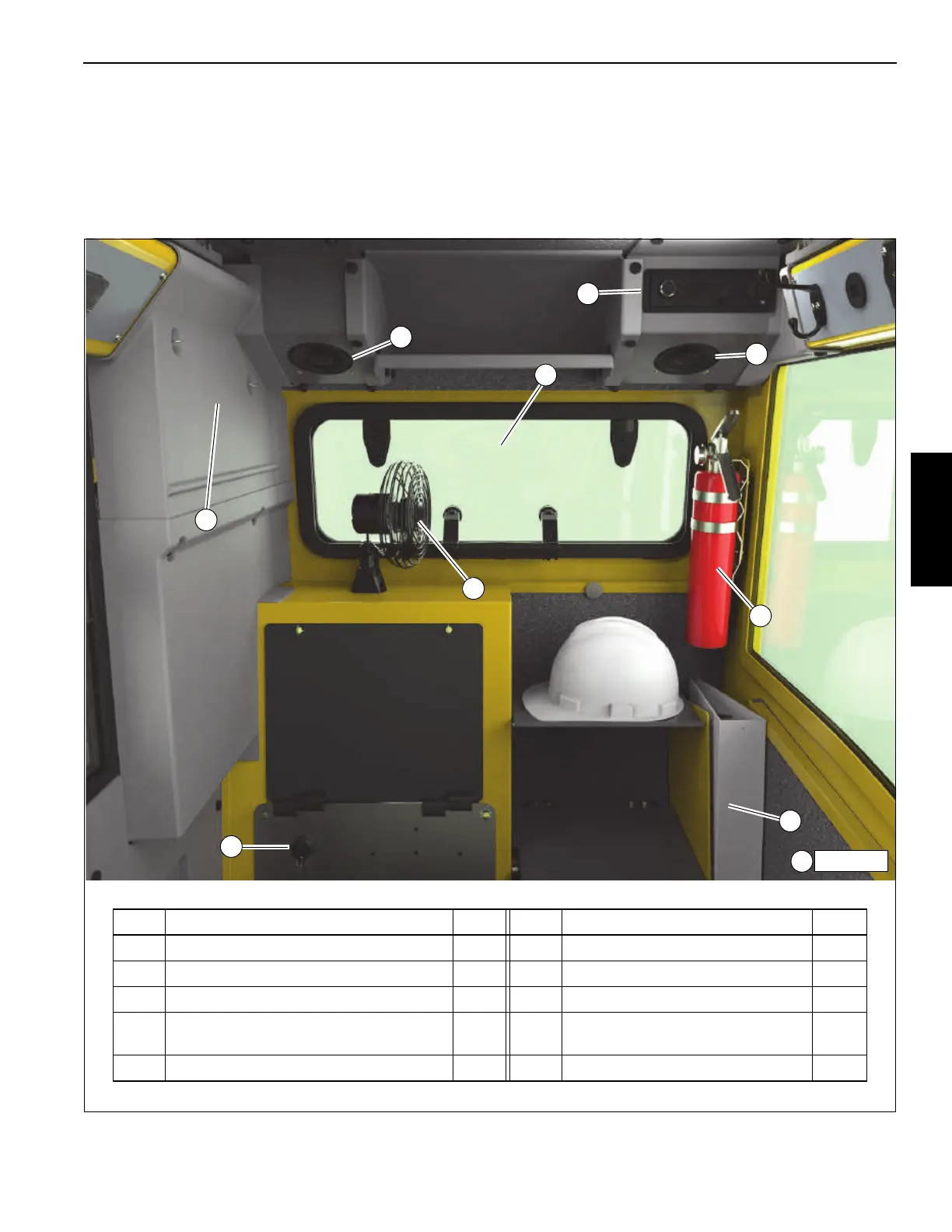

FIGURE 3-30
Item Description Page Item Description Page
1 Radio (Optional) 3-42 6 User Manual Holder 3-42
2 Speakers (Optional) 3-42 7 Fuse and Relay Panel 3-43
3 Rear Window 3-42 8 Buzzer (Not Shown) 3-44
4Fan 3-42 9
Maintained Limit Bypass Switch
(Non-CE Certified Cranes)
3-44
5 Fire Extinguisher 3-42
9838-16a
9
1
2
8
Not shown
4
7
2
3
5
6
