Manitowoc Grove GRT9165 User Manual

Grove Published 7-23-2020, Control # 668-02 4-73
GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4

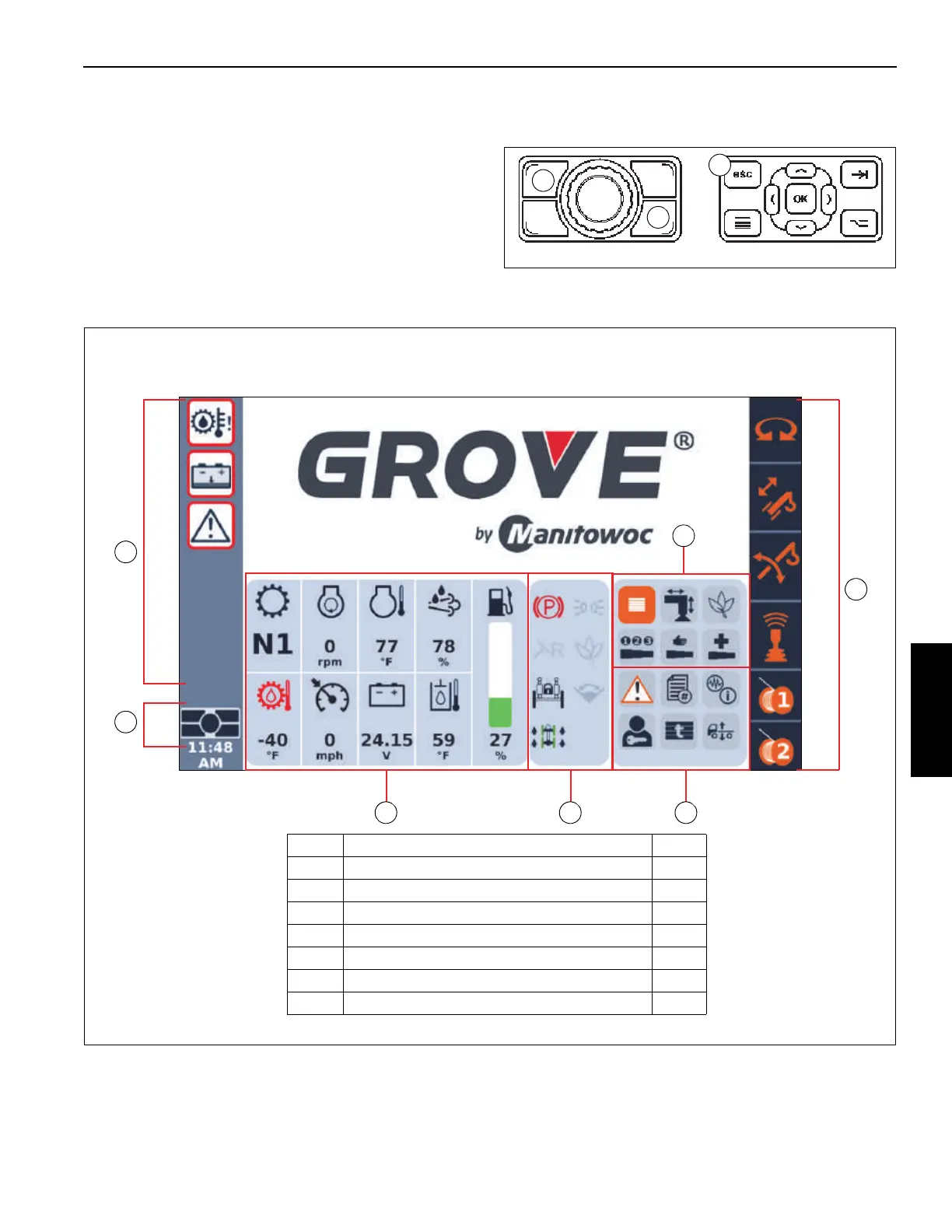

Main Screen
The Main Screen (Figure 4-74) appears on the ODM (lower
screen) when the key switch is initially set to the ON position.
Navigating back to the Main Screen can be accomplished by
doing one of the following procedures:
• Press the Screen Toggle Button (1, Figure 4-73) at the
Jog Dial to select the ODM screen control, then press
the Escape Button (2).
- or -
• Press the Escape Button (3, Figure 4-73) on the
Navigation Control Pad at the ODM.
The Main Screen is separated into seven areas as shown in
Figure 4-74.
FIGURE 4-73
1
2
3
FIGURE 4-74
1
9902-1
5
6
7
2
3
Item Description Page
1Alerts Area 4-74
2 Active Screen Indicator Area 4-80
3 Crane Information Area 4-81
4 Crane Status Area 4-84
5 Frequently Used Quick Select Menu Area 4-89
6 Status Bar 4-90
7 Permanent Quick Select Menu Area 4-92
4
