Grove Published 7-23-2020, Control # 668-02 5-3
GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION
Hoist Camera

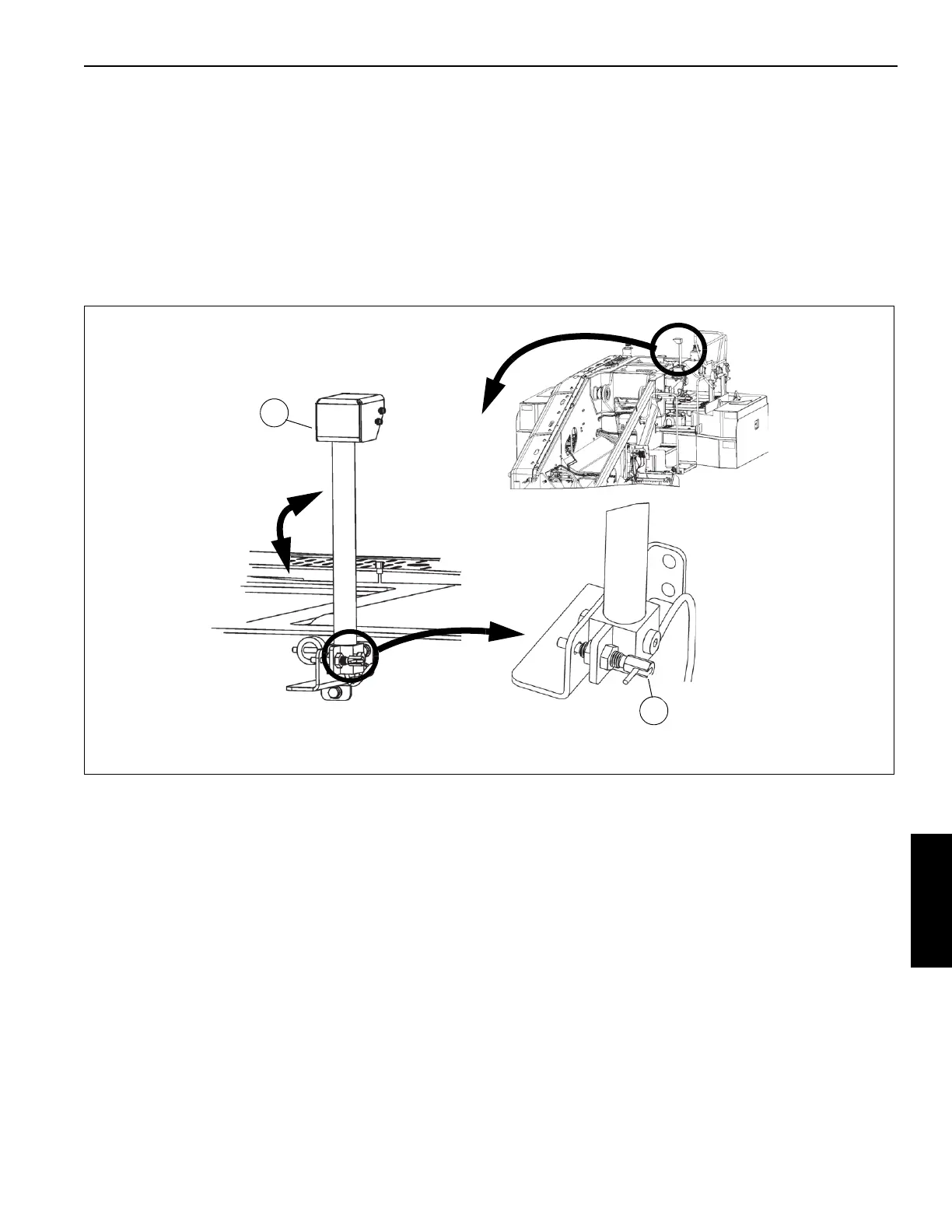

The hoist camera (1, Figure 5-2) is located at the rear of the
superstructure. The camera should be raised for operation
and lowered for transport.
Lowering the Hoist Camera for Transport
1. Pull the retractable lock (2). Lower the hoist camera (1).
2. Push the retractable lock (2) in the locked position to
secure the hoist camera in the transport position.
3. Lower the rear and side hoist platform railings. For more
information, see Hoist Platform, page 5-4.
Raising the Hoist Camera for Operation
1. Raise the side and rear hoist platform railings. For more
information, see Hoist Platform, page 5-4.
2. Pull the retractable lock (2). Raise the hoist camera (1).
3. Push the retractable lock (2) in to the locked position to
secure the hoist camera (2) in the working position.
Working Position
1
FIGURE 5-2
2
ROTATE
Locked Position
9936
9937
9938
