Manitowoc Grove RT9130E-2 Service And Maintenance Manual

Grove Published 11-22-2016, Control # 345-12 2-81
RT9130E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2

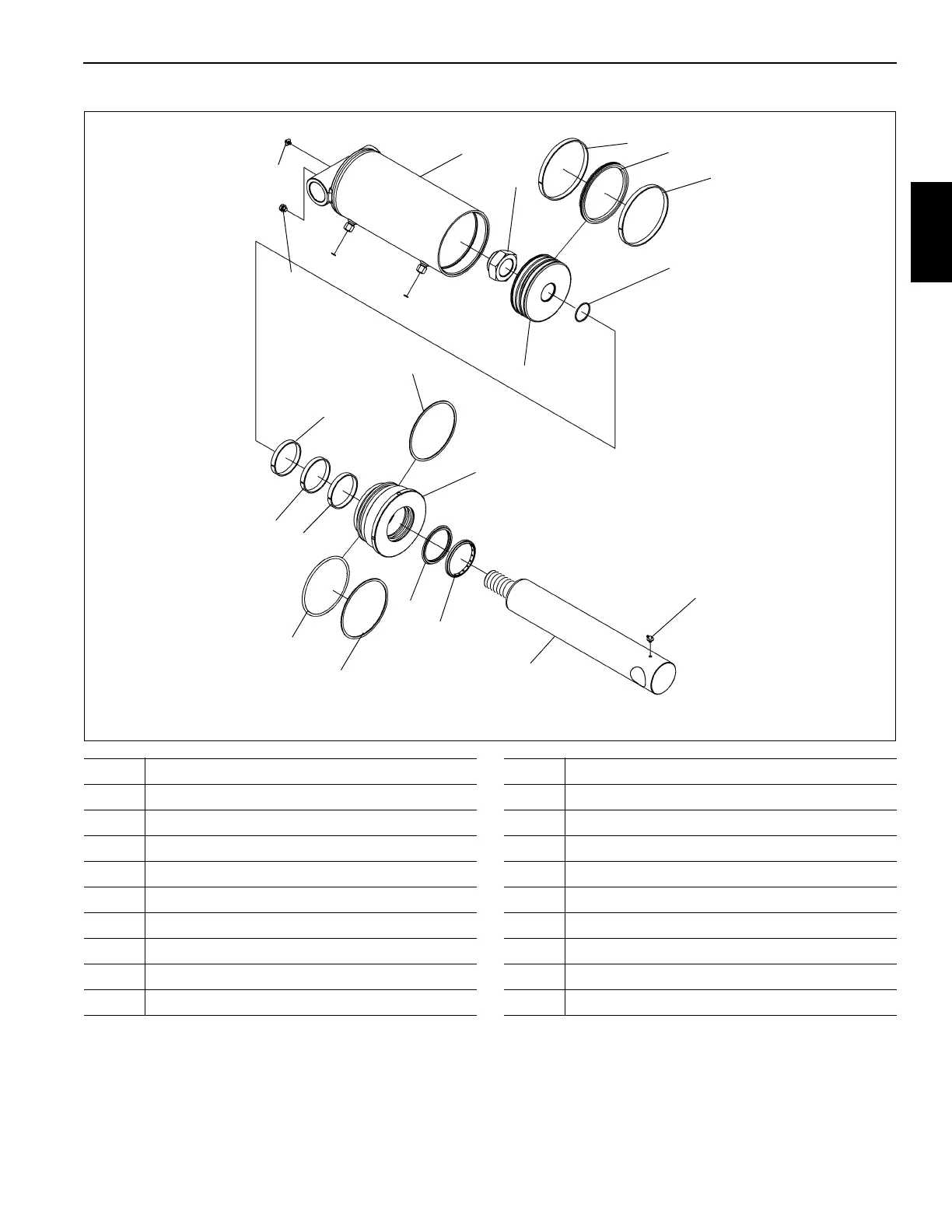

FIGURE 2-50
1
1
2
3
4
5
10
10
17
12
15
13
11, 14
13
16
6
8
9
9
9
7
18
6705
Item Description
1O-ring
2O-ring
3 Backup Ring
4 Seal
5O-ring
6 Wiper Ring
7O-ring
8 Seal
9 Wear Ring
Item Description
10 Wear Ring
11 Washer
12 Locknut
13 Grease Fitting
14 Plug
15 Barrel
16 Rod
17 Piston
18 Head
