Manitowoc Grove RT9130E-2 Service And Maintenance Manual

Grove Published 11-22-2016, Control # 345-12 2-87
RT9130E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2

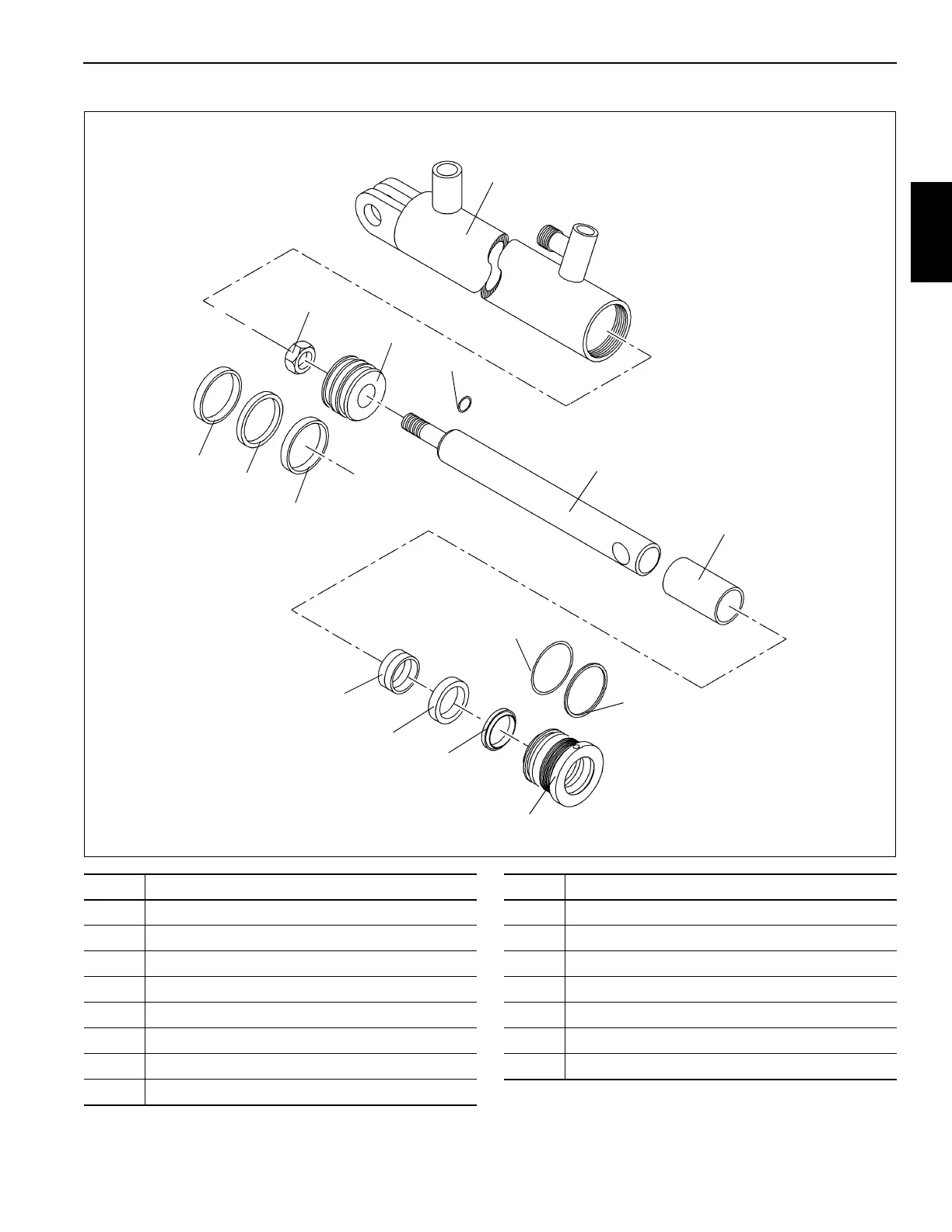

FIGURE 2-52
12
11
2
1
10
5
4
7
13
3
6
8
14
9
7282
8
Item Description
1Barrel
2Rod
3Piston
4 Head
5 Spacer
6Nut
7 Piston Seal
8 Wear Ring
Item Description
9O-ring
10 O-ring
11 Backup Ring
12 Rod Seal
13 Wiper Ring
14 Wear Ring
15 Grease Cap
