RT9130E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2

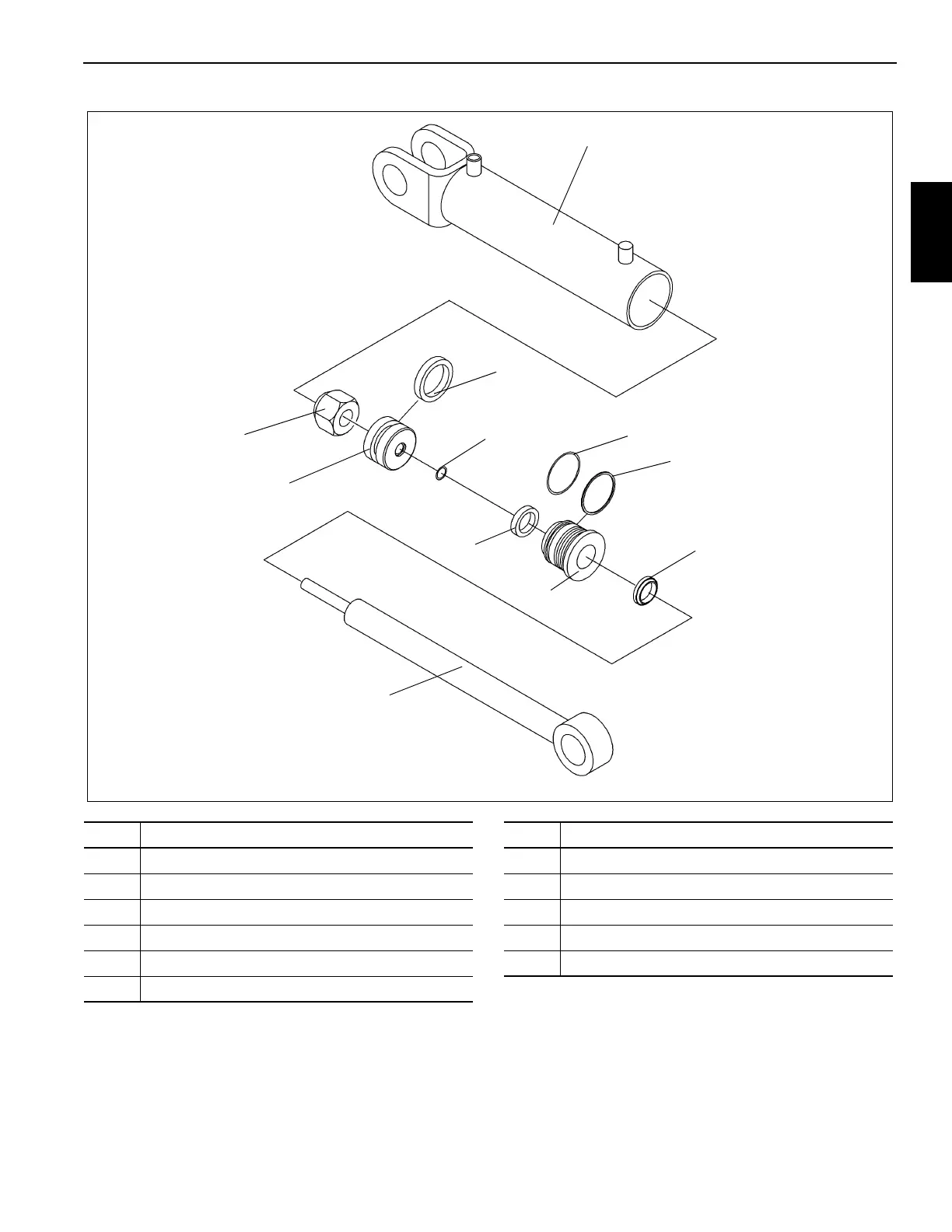

FIGURE 2-56
6722
11
10
7
6
5
4
3
8
9
2
1
Item Description
1 Barrel
2Rod
3 Head
4Piston
5Nut
6O-ring
Item Description
7 Piston Seal
8O-ring
9 Backup Ring
10 Rod Seal
11 Wiper Ring
