BOOM RT9130E-2 SERVICE MANUAL
4-40 Published 11-22-2016, Control # 345-12
5. Install brackets as positioned before removal. Secure
both sets of brackets with capscrews and washers.
6. Connect hydraulic line and fittings to cylinder as tagged
prior to removal.
7. Install each pivot lock weldment and secure with
capscrews and washers.
8. Install base cover and secure with capscrews, washers
and nut fasteners.
6123
12, 13
11
14
1
5, 6, 7, 8
9, 10
2
3, 4

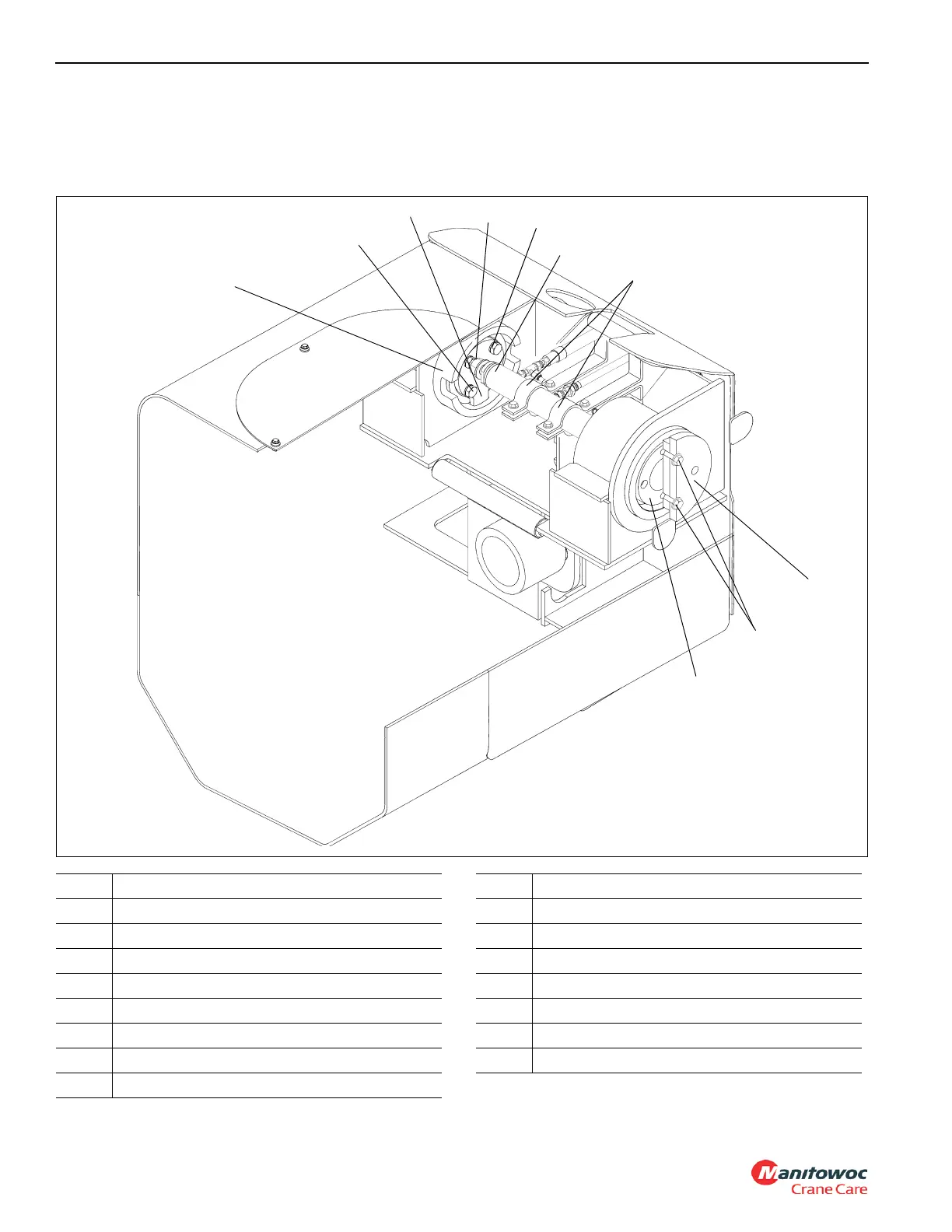

FIGURE 4-9
12, 13
15
Item Description
1 Removal Cylinder
2 Pivot Lock Weldment (typical of 2)
3 Capscrews
4 Lockwashers
5 Brackets
6 Capscrews
7 Lockwashers
8Nuts
Item Description
9 Nut (typical of 2)
10 Washer (typical of 2)
11 Lock Plate Weldment (typical of 2)
12 Capscrews
13 Lockwashers
14 Pivot Pin (typical of 2)
15 Boom Pivot Bushing (typical of 2)
