HOIST AND COUNTERWEIGHT RT9130E-2 SERVICE MANUAL
5-20 Published 11-22-2016, Control # 345-12
HRI Display
The display is located in the front overhead panel
(Figure 5-9).
To replace the display, remove the overhead panel.
Disconnect the electrical connector and pry the display off of
the panel. Clean the panel where the display was affixed with
isopropyl alcohol, remove the paper from the adhesive back
of the new display and stick it into the panel. Connect the
wires to the display. Replace the panel and secure with the
hardware.
HRI Control Module
The control module is located in the fuse and relay panel
behind the driver’s seat in the cab (Figure 5-10).
To replace the control module, tag and disconnect the wires
from the module (Figure 5-11). The module is mounted to the
bulkhead using double-sided adhesive tape. To remove the
module, pry it off the bulkhead. Remove any residual tape
from the bulkhead. Secure the replacement module to the
bulkhead with the foam tape. Connect the wires as tagged
during removal.

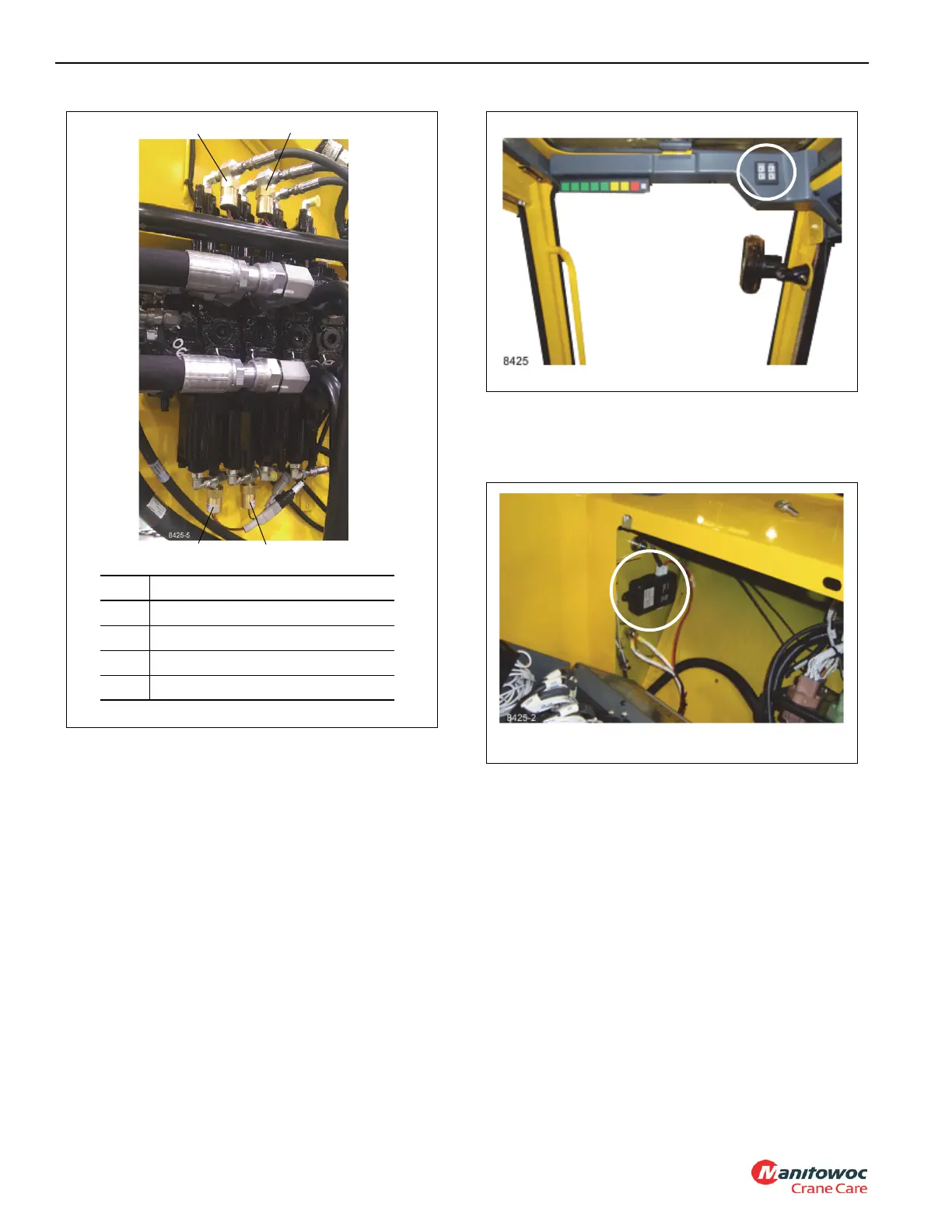

FIGURE 5-8
8425-5
Item Description
1 Main Hoist Down Switch
2 Auxiliary Hoist Down Switch
3 Auxiliary Hoist Up Switch
4 Main Hoist Up Switch
1
2
4
3
TYPICAL
VIEW ONLY
