Grove Published 11-22-2016, Control # 345-12 5-23
RT9130E-2 SERVICE MANUAL HOIST AND COUNTERWEIGHT
5

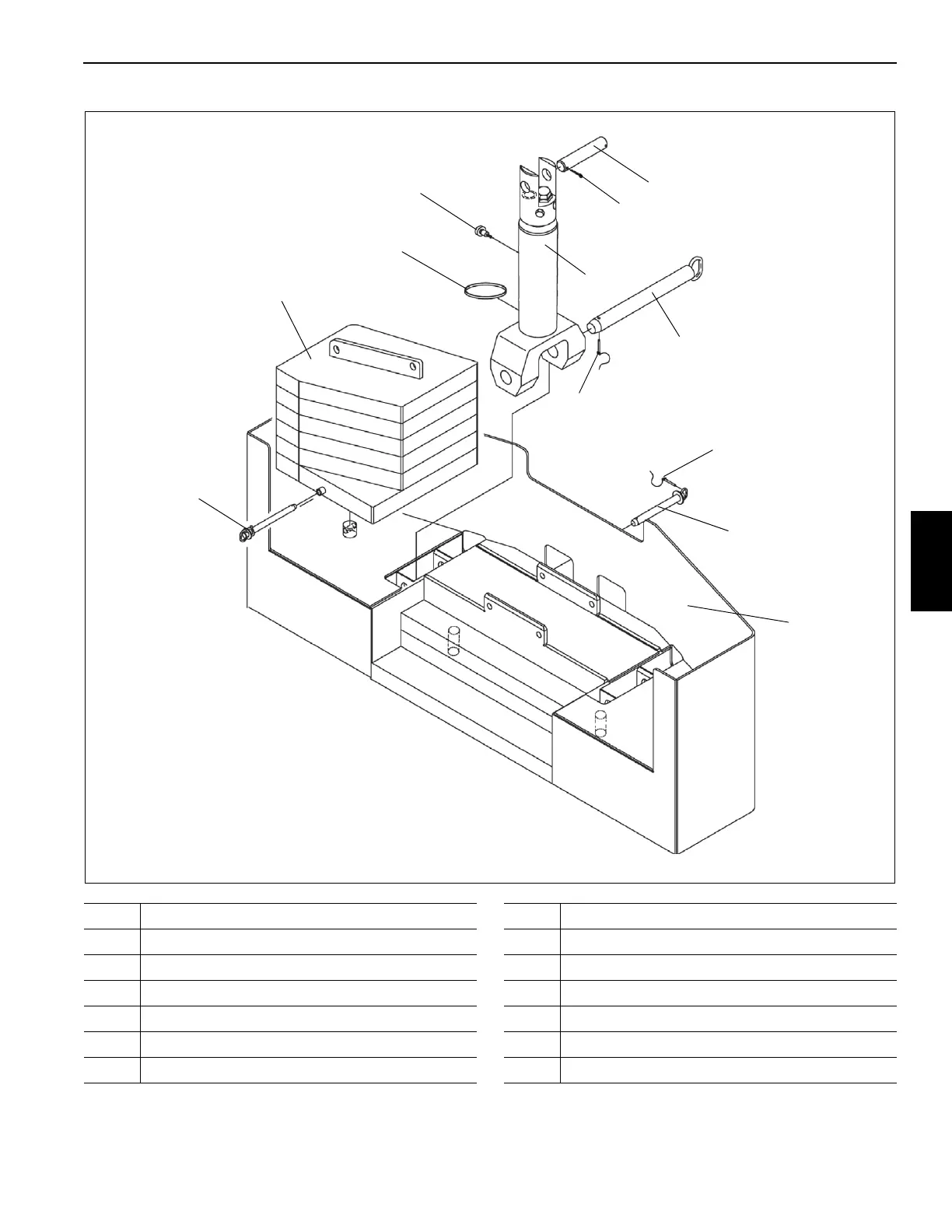

FIGURE 5-13
6
5
9
8
11
4
2
3
12
7229-1
10
1
7
Item Description
1
Counterweight Weldment
2 Heavy Counterweight Weldment
3 Heavy Counterweight Weldment Pin
4 Wear Ring
5 Counterweight Removal Cylinder
6Pin
Item Description
7
Cotter Pin
8Cotter Pin
9 Cylinder to Counterweight Pin
10 Shoulder Bolt
11 Hitch Pin
12 Counterweight to Hoist Structure Pin
