Manitowoc Grove RT9130E-2 Service And Maintenance Manual

Grove Published 11-22-2016, Control # 345-12 6-3
RT9130E-2 SERVICE MANUAL SWING SYSTEM
6
10
6
7
5
1
8
11

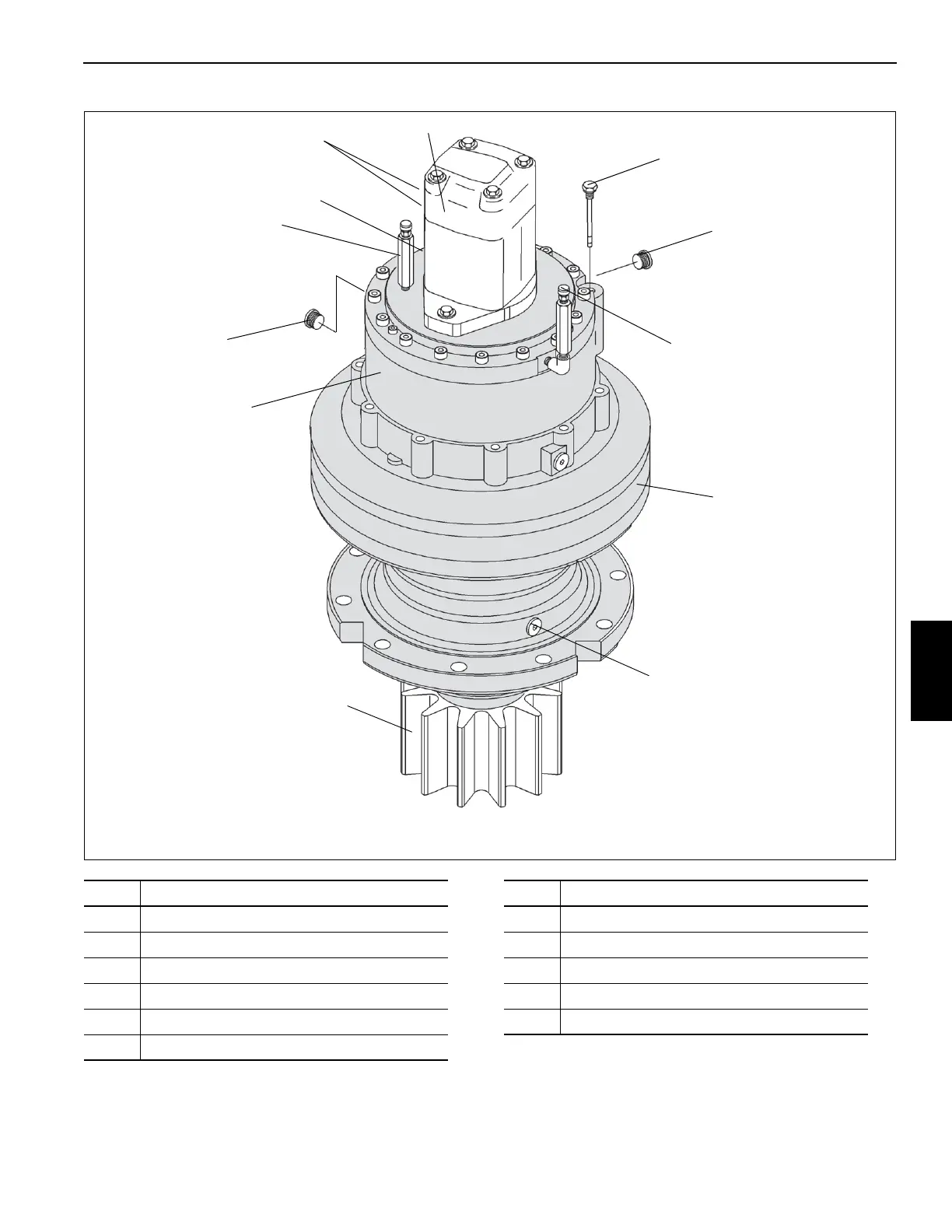

FIGURE 6-1
6470-1
5
4
9
3
2
NOTE: Some swing boxes have the
notches in the mounting flange.
Other swing boxes do not.
Item Description
1 Swing Motor
2 Swing Motor Ports
3 Swing Motor Drain Plug
4 Swing Brake Assembly
5 Breather Plugs
6 Filling Plug/Level Indicator
Item Description
7 Hydraulic Apply Brake Port
8 Hydraulic Release Brake Port
9 Swing Gearbox
10 Drain Plug
11 Pinion Gear
