Grove Published 11-22-2016, Control # 345-12 7-11
RT9130E-2 SERVICE MANUAL POWER TRAIN
7
17 Tubing
18 Flex Guard
19 Clamp
20 Vacuator Valve
Item Description
1
5
4
3
7
8
2
FIGURE 7-4
8
9
6
10

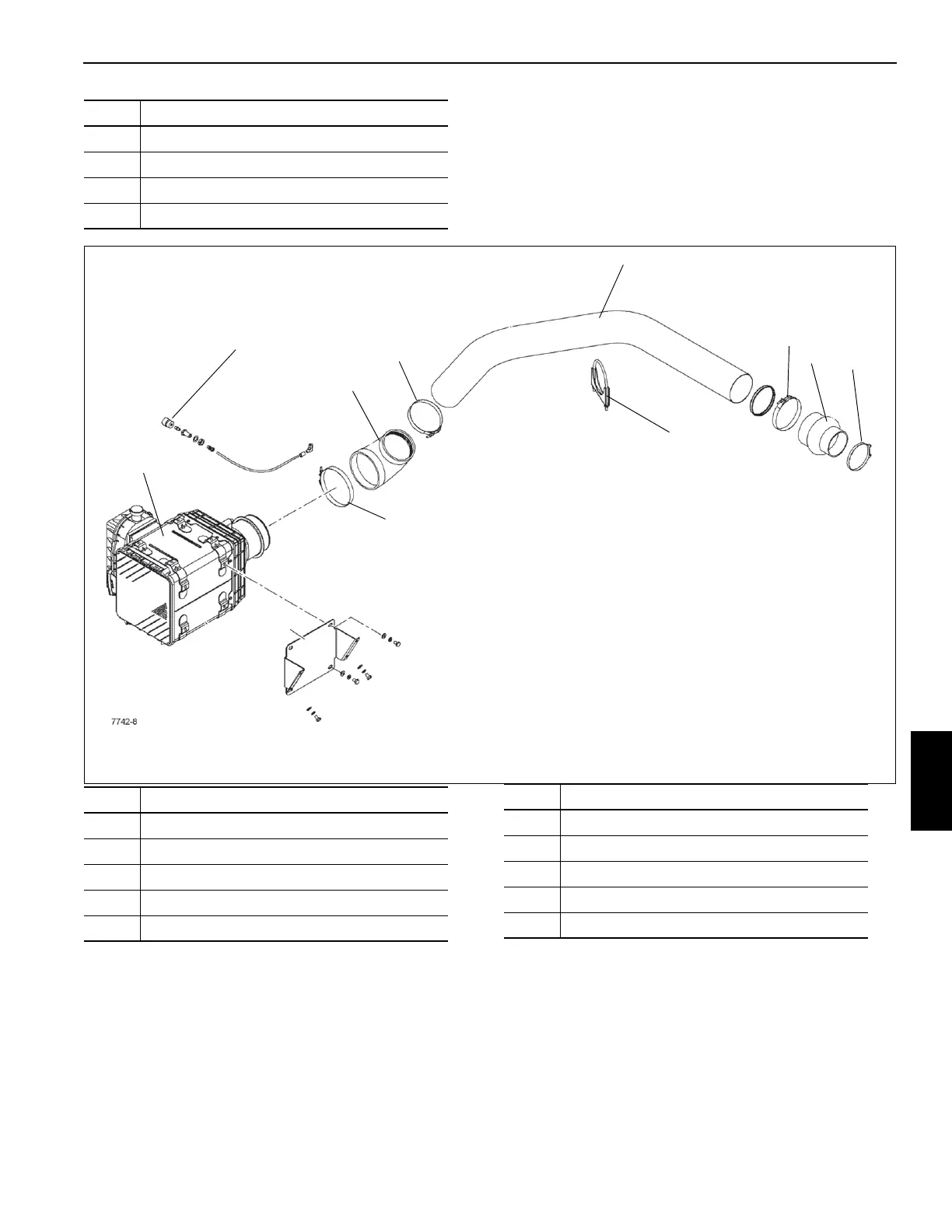

Tier 4 Air Cleaner Assembly
Item Description
1 Air Cleaner
2 Mounting Bracket
3 Elbow
4 Intake Tube
5 Reducer
6 Restriction Indicator
7 T-Bolt Clamp
8 T-Bolt Clamp
9 T-Bolt Clamp
10 Muffler Clamp
