Grove Published 11-22-2016, Control # 345-12 7-13
RT9130E-2 SERVICE MANUAL POWER TRAIN
Tier 4 Filter Element Replacement
Remove decking access plate behind steps. Unlatch the
latches, open the air cleaner body and withdraw the element
as follows:

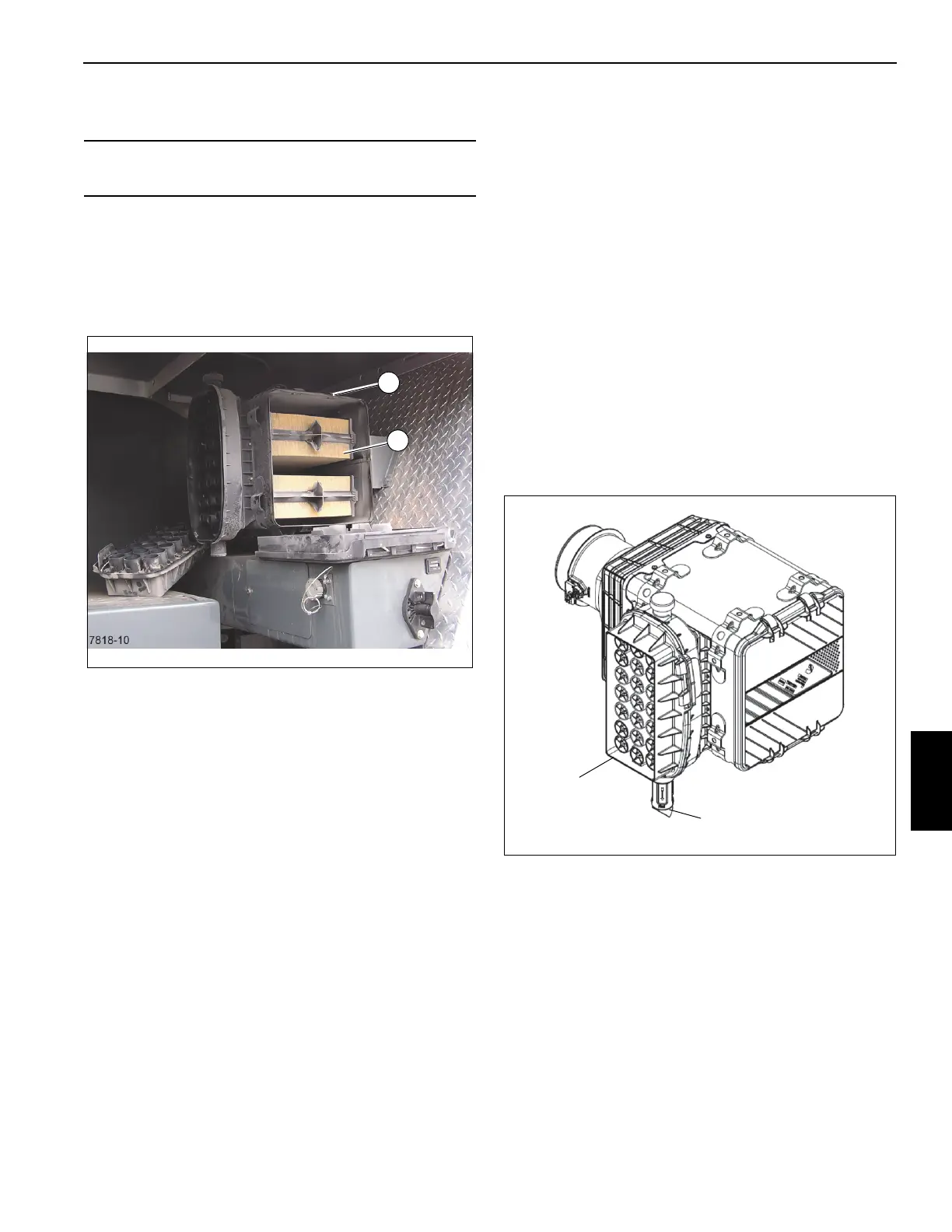

1. Lift the clips (1) (Figure 7-8) securing the cover to the air
cleaner body and remove the cover.
2. Remove Primary Filter (2) from the Air Cleaner and
inspect for foreign material and marks of dust. Replace
as necessary.
3. Remove Secondary Filter from behind the Primary Filter
(not shown) from the Air Cleaner. Replace the Second-
ary Filter every third time the primary filter is change.
4. Thoroughly clean the sealing surface and inside of the
air filter housing. Inspect all parts of the intake system
and air cleaner.
5. Place the cover back on the air cleaner housing and
secure with clips (1).
6. Check all connections and ducts for an air tight fit. Make
sure that all clamps, bolts, and connections are tight.
Check for holes in piping. Leaks in the air intake system
may send dust directly to the engine.
7. Replace decking access plate.
Element Cleaning
It is not recommended that filter elements be cleaned.
Cummins and most other manufacturers will not warrant a
cleaned air filter.
Air Cleaner Body
Before installing the filter element, remove foreign material
(leaves, lint or other foreign matter) that may have collected
inside the air cleaner body. Inspect the inside of the body for
damage that would interfere with air flow or with the fins on
the element or inside the body. Be sure to clean the sealing
surface of the outlet tube and the inside of the outlet tube,
taking care not to damage the sealing area on the tube.
Precleaner
The Precleaner (1) (Figure 7-9) prevents large debris from
entering the Air Cleaner and should be cleaned periodically,
especially when working in severe dust conditions. Remove
the top half of the precleaner by releasing the two latches on
the sides of the precleaner. Remove all debris from inside
precleaner and reassemble.
Vacuator Valve
Vacuator valves (20, Figure 7-3, 2, Figure 7-9 and
Figure 7-10) are designed to expel loose dust and dirt from
the air cleaner body automatically, thus lengthening the
element service life. The valve lips must point straight down
and be kept free from debris to operate effectively. Mud and
chaff can lodge in these lips periodically and hold them open
during engine operation.
CAUTION
Never service the air cleaner while the engine is running.
