Grove Published 11-22-2016, Control # 345-12 7-17
RT9130E-2 SERVICE MANUAL POWER TRAIN
7

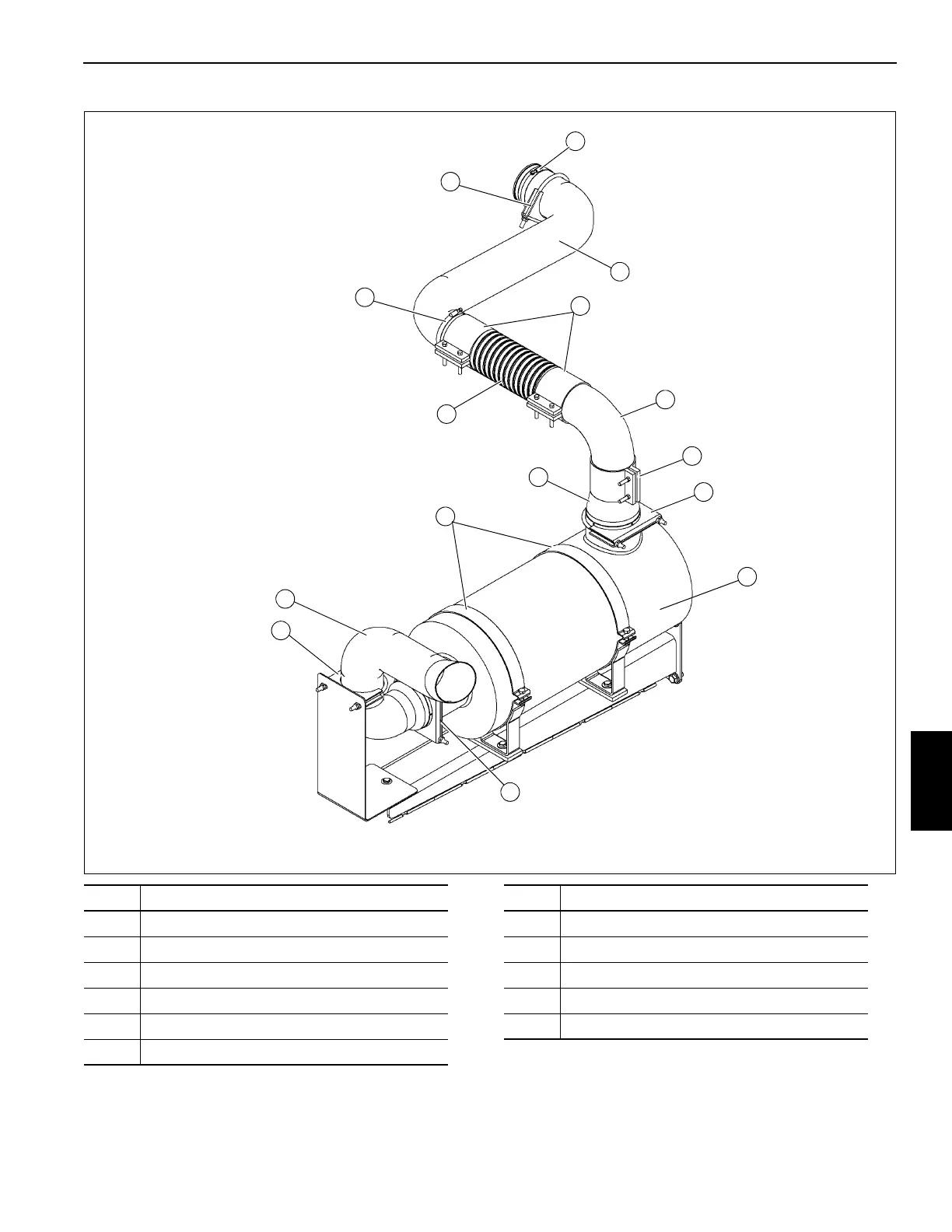

FIGURE 7-12
1
2
3
4
7
8
10
5
9
Tier 3 Muffler
4
6
8
5
9
11
Item Description
1 Muffler
2 Bracket w/mounting bands
3 Tail Pipe
4 Clamp
5 Seal Clamp
6 Bellows
Item Description
7 Tube w/Exhaust Wrap
8 Clamp
9 Clamp
10 Tube
11 Adapter
