Mar Cor Purification MILLENIUM HX - Rear View Components

Millenium HX RO System
3030226 Rev. D 7-4 Drawings

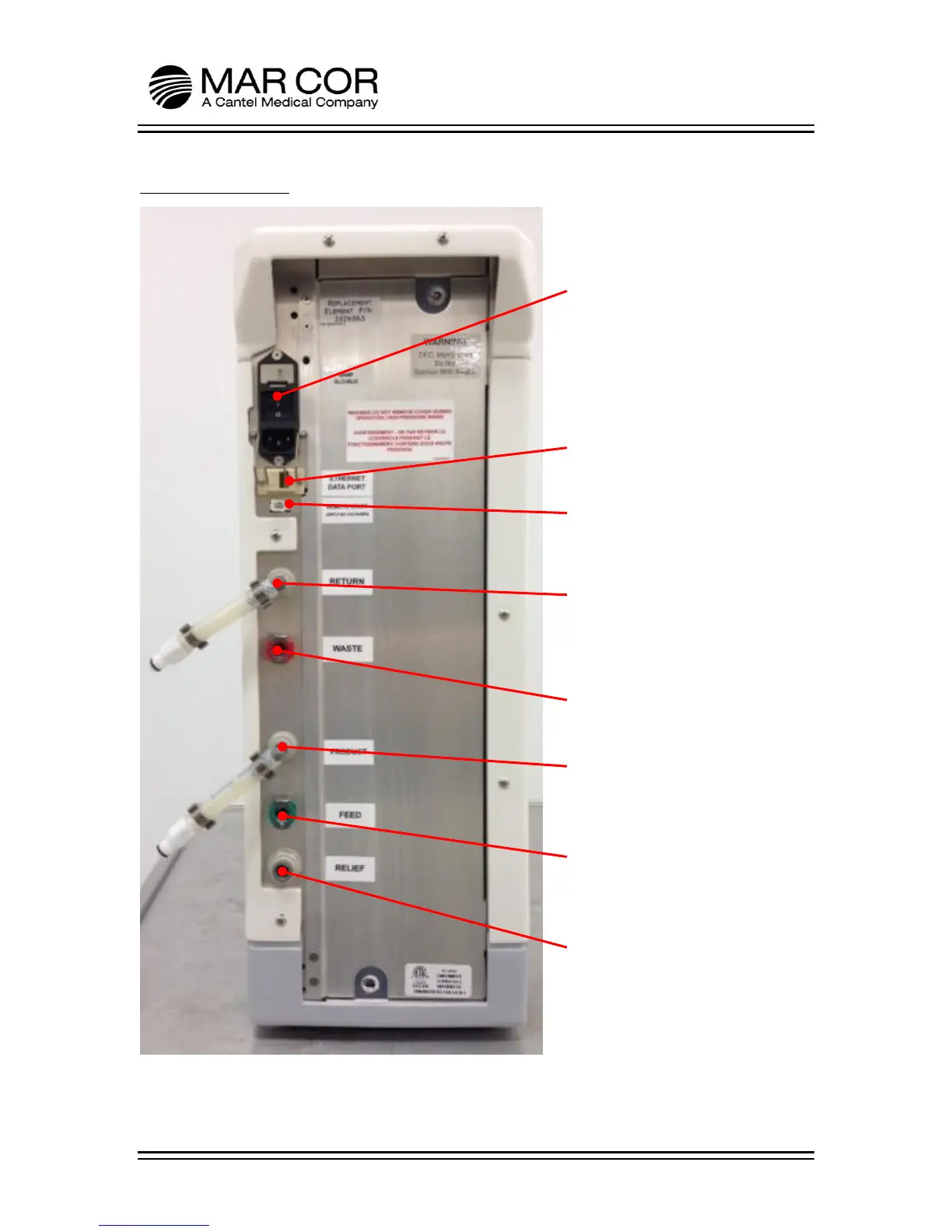

7.1.2 Rear View
P
P
o
o
w
w
e
e
r
r
M
M
o
o
d
d
u
u
l
l
e
e
Communications Port:
Used to connect to a network.
Remote Start/Stop:
Used to remotely start/stop the RO machine.
Return Port:
Product hose connects here. Unused
product water returns to tank for later use.
Product Port
Product hose connects here. Product
water is sent to dialysis machine.
Waste Port
Drain hose connects here.
Feed Port
Pre-treated water source connects here.
Pressure Relief Port
Water exits RO here if tank pressurizes
(something is wrong if this happens).
Power Inlet Module:
Power cable connects here. Also includes
power switch and incoming power fuse
holder. Two identical fusses are housed here
depending on model.
(2x 6A SLO BLO 115VAC)
(2x 3A SLO BLO 230VAC)
