7.1.5 Membrane Assembly

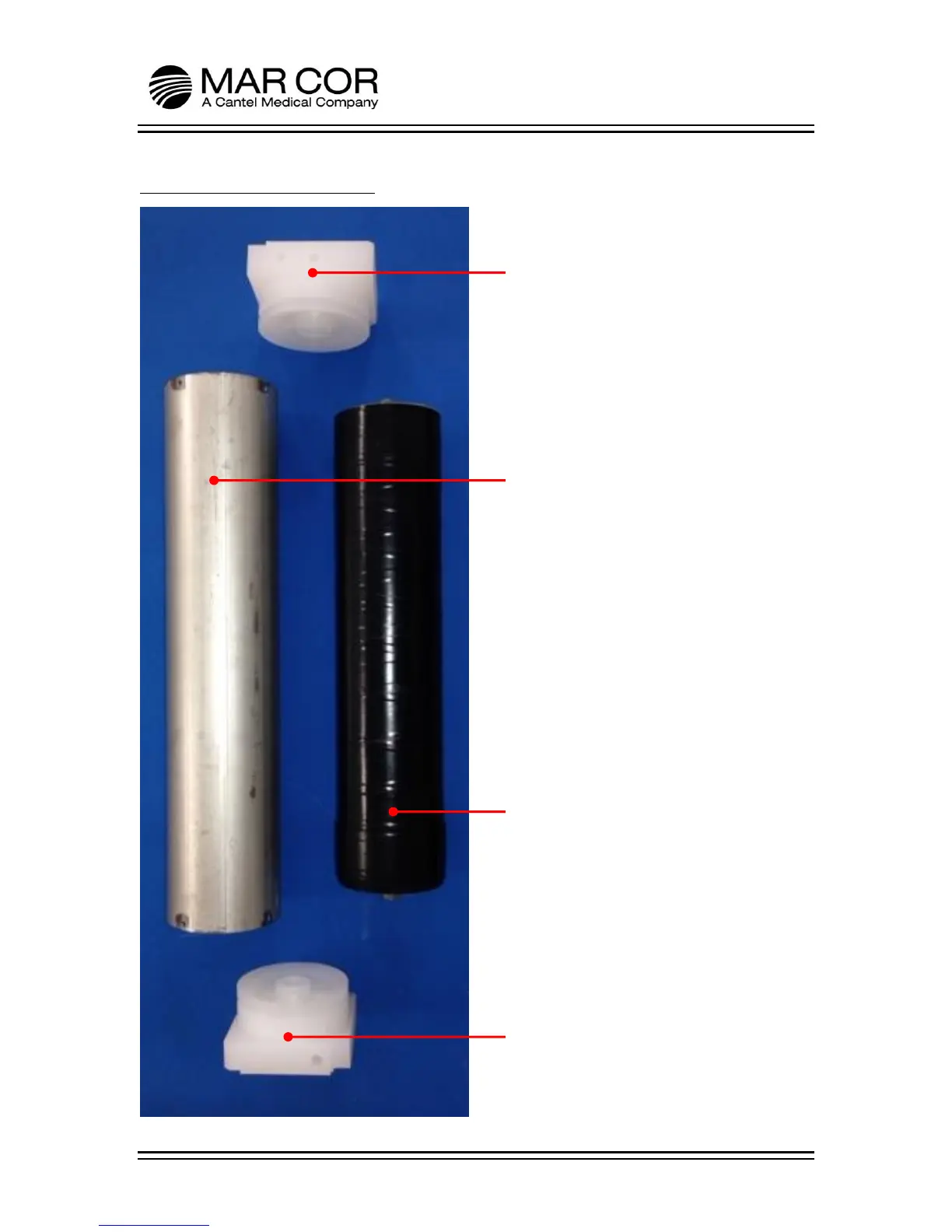

Top End Cap:
Caps the outlet side of the membrane.
Inserted on the top of the membrane (open
end of membrane permeate tube).
Membrane Housing:
SS housing to hold the RO element.
Membrane:
Reverse osmosis element used to purify the
source water.
Bottom End Cap:
Caps the inlet side of the membrane. Inserted
on the bottom of the membrane (plugged end of
permeate tube).
