Mar Cor Purification MILLENIUM HX - Center Hydraulic View

Millenium HX RO System
3030226 Rev. D 7-9 Drawings

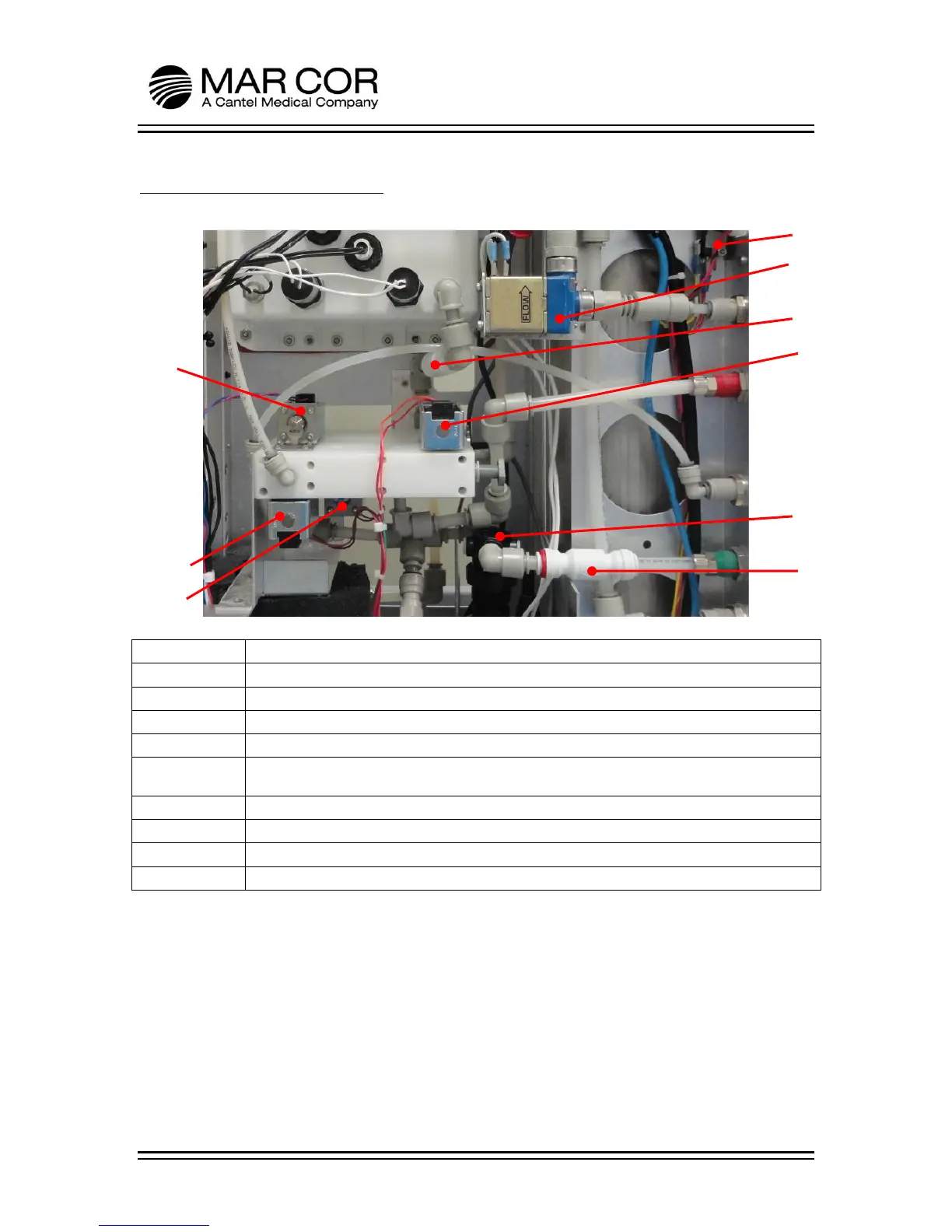

7.1.7 Center Hydraulic View
Part
Description
SV1
See next page for description.
SV2
See next page for description.
SV3
See next page for description.
SV4
See next page for description.
SV5
Solenoid valve 5. Product water return solenoid valve. Provides backpressure on the
product water line. Opens during cleaning/sanitizing/disinfecting modes.
CK5
Check valve 5. Prevents RO feed water from entering the tank.
FC
Feed check valve. Prevents back flow of water to the RO feed supply.
MS2
Membrane switch 2. Ensures membrane door is present and properly secured.
PR
Pressure Regulator. Controls the incoming feed pressure
SV5
CK5
SV2
SV3
SV4
MS2
FC
SV1
Pressure
Regulator
(PR)
