Mar Cor Purification MILLENIUM HX - Electrical Right Side View

Millenium HX RO System
3030226 Rev. D 7-5 Drawings

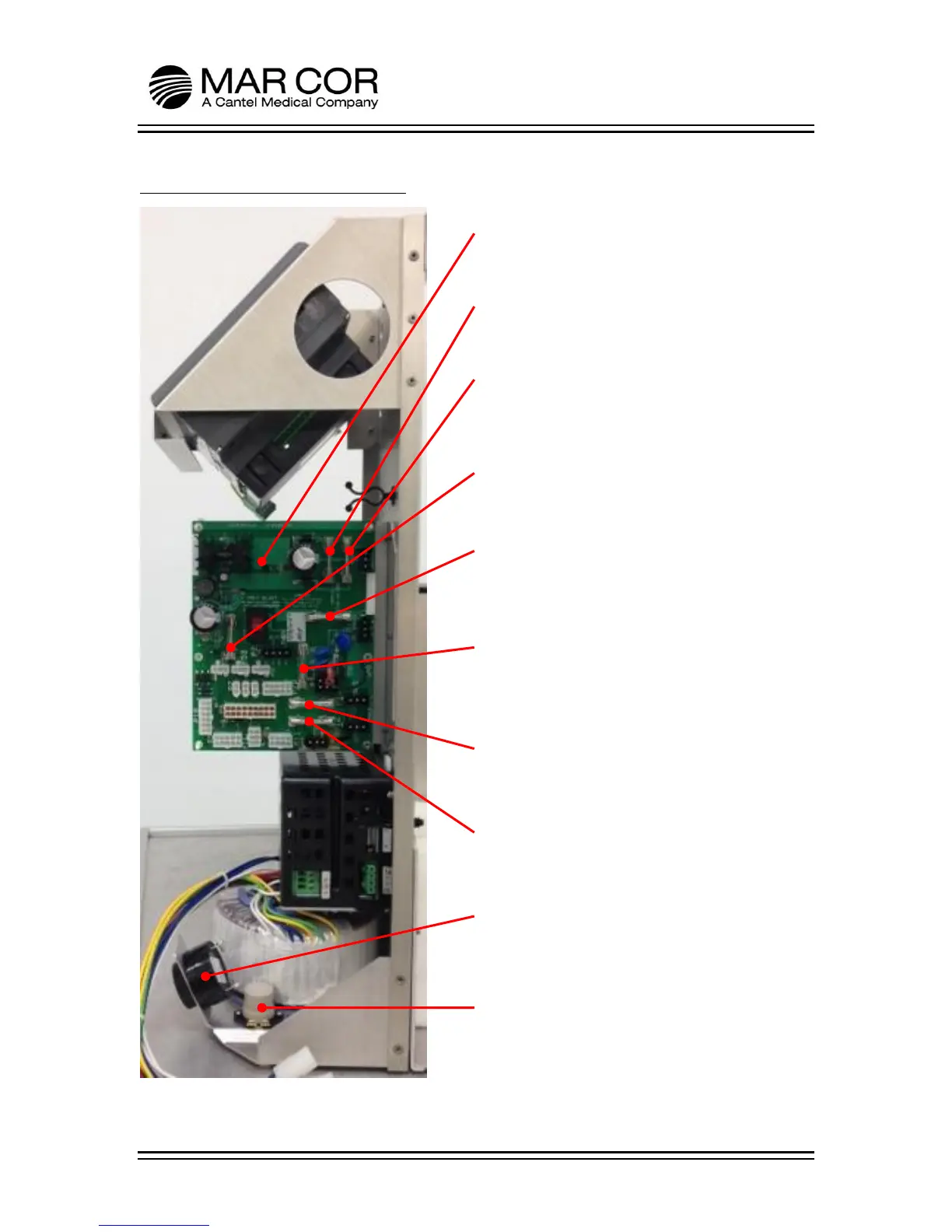

7.1.3 Electrical Right Side View
Power Distribution PCB
Distribution board used to connect the
electrical components together.
Fuse 3:
30VAC power fuse.
(3A/Slo Blo)
Fuse 2:
30VAC power fuse.
(3A/Slo Blo)
Fuse 1:
Input power fuse.
(10A/Fast Blo 115 VAC)
(5A/Fast Blo 230 VAC)
Fuse 4:
24VDC power fuse.
(2.5A/Slo Blo)
Fuse 6:
Heater power fuse.
(6A/Fast Blo 115 VAC)
(3A/Fast Blo 230 VAC)
Tilt Sensor
Senses if the machine is in
the upright position.
Alarm Horn
Horn for alarms and
screen touches.
Fuse 7:
Pump controller power fuse.
(4A/Slo Blo)
Fuse 5:
24VAC power fuse.
(1.5A/Slo Blo)
