Mar Cor Purification MILLENIUM HX - Lower Hydraulic View

Millenium HX RO System
3030226 Rev. D 7-11 Drawings

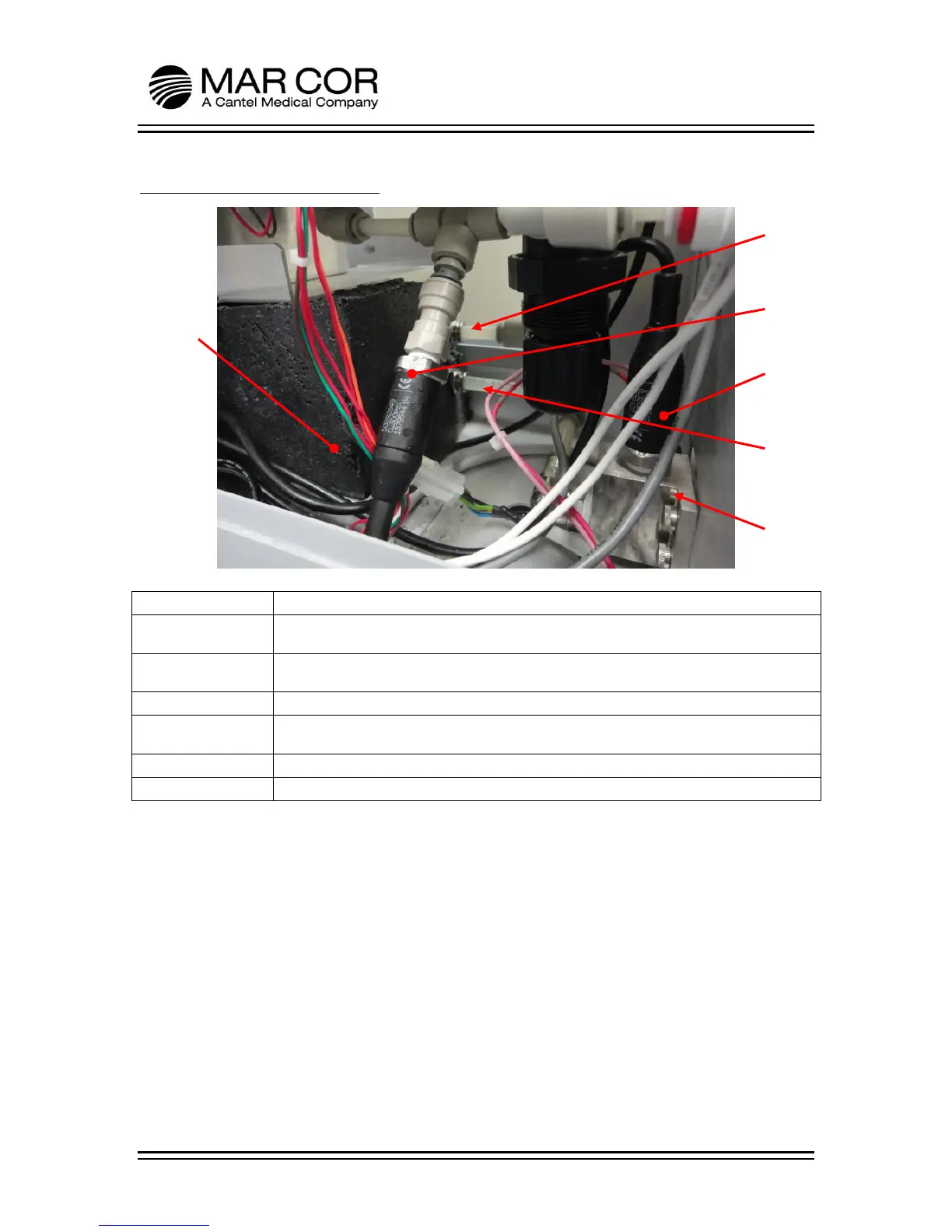

7.1.9 Lower Hydraulic View
Part
Description
PT1
Pressure transducer 1. RO feed water pressure transducer. Senses the pressure of
the incoming RO feed water.
PT2
Pressure transducer 2. Pump pressure transducer. Senses the pressure of the
water coming out of the pump.
MS1
Membrane switch 1. Ensures membrane is present and in proper position.
HPP
High pressure pump. Contains the pump and motor. Boosts RO feed water to the
desired pressure.
Pump Inlet
Water enters the pump here.
Pump Outlet
Water exits the pump here.
Pump
Inlet
Pump
Outlet
HPP
PT1
PT2
MS1 located
behind SS
feed block
