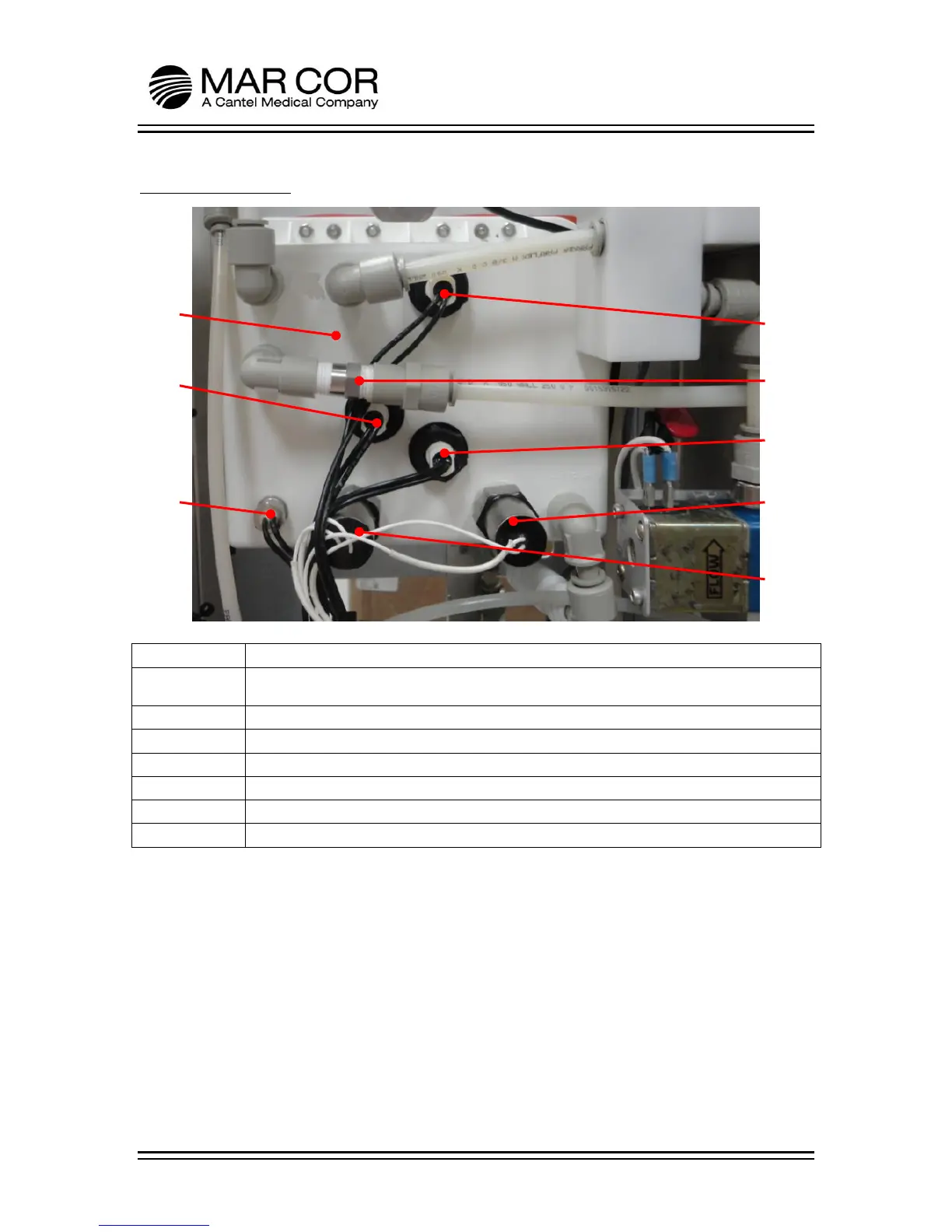

7.1.10 Tank View
Part
Description
Tank
Tank that holds product water for cleaning, disinfection, and sanitization as well as
reuse during the run mode.
LS1
Level switch 1. Senses the water level in the upper part of the tank.
LS2
Level switch 2. Senses water level in the middle of the tank.
LS3
Level switch 3. Senses the water level in the lower part of the tank.
CK6
Check valve 6. Prevents tank from over pressurizing.
TC1
Temp control thermostat. Turns heaters off to prevent damage due to excessive heat.
H1(a&b)
Heater elements. Heats the tank water for heat disinfection processes.
CK6
LS1
LS3
TC1
Tank
H1a
H1b
LS2
