3.6.1.2. Omni microphone schemes
If you don’t want to use 4x4 pinout to connect Omni, use this scheme to solder it.
Be careful: You should have soldering skills to solder Omni Microphone on board

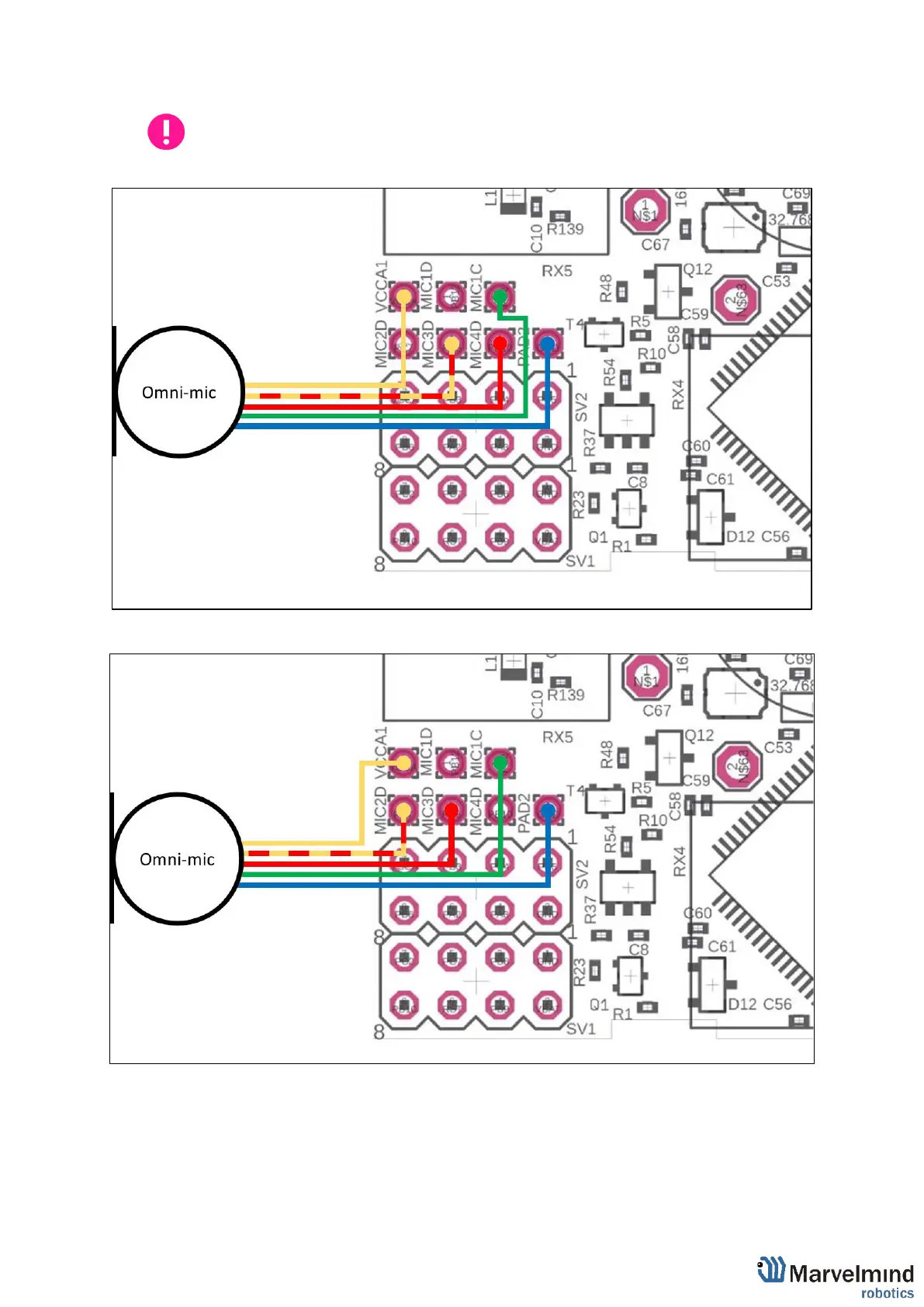

Figure 4: Omni-Microphone connection for Super-Beacon
Figure 5: Omni-Microphone connection for Super-Beacon-2 and Super-Beacon-3
