Rad-97 Chapter 7: Admit to and Discharge from Patient SafetyNet
www.masimo.com 119 Masimo

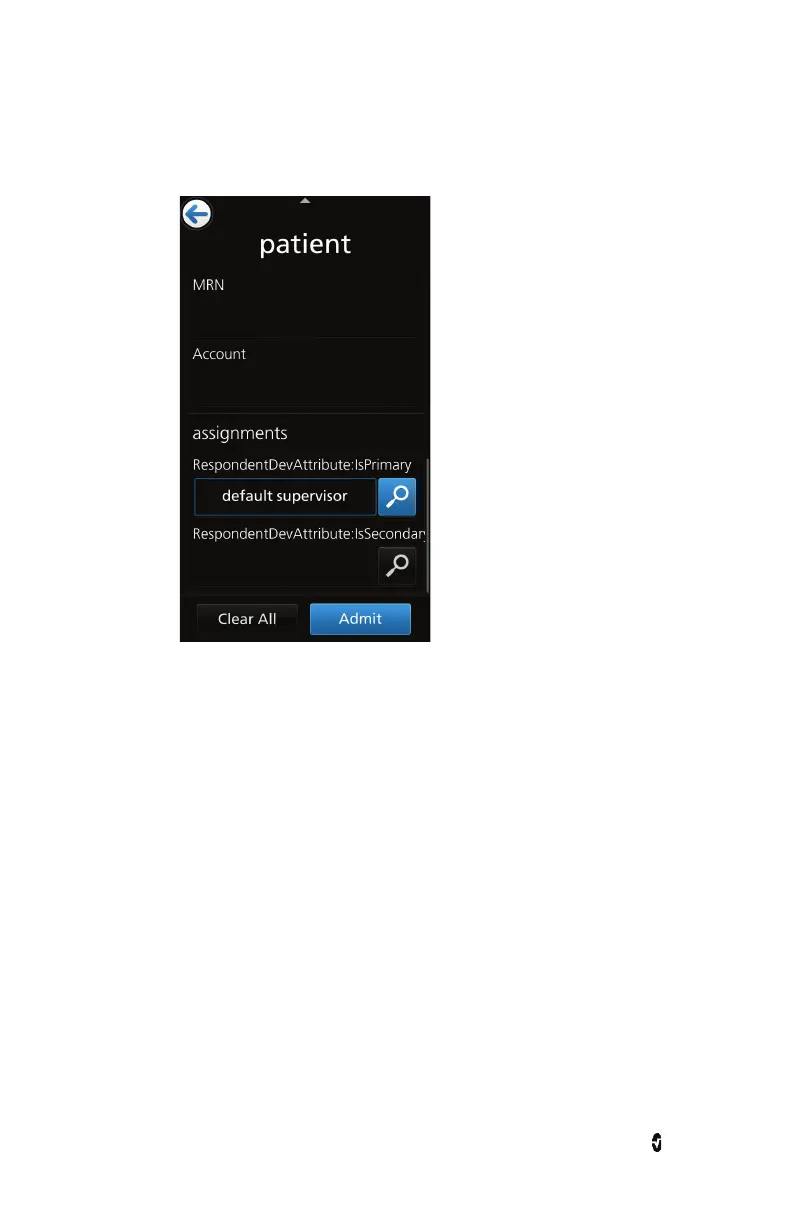

4. In the assignment section of the Patient menu (see Fig. 3), select the primary
pager, then press Admit.
Fig. 3
Not Monitoring Message
When the sensor is off the patient for an extended period of time, a Not Monitoring message
will appear on the screen. Acknowledge the message by pressing Cancel or Discharge. Press
Discharge to discharge the patient that is currently admitted on Rad-97, or press Cancel to
keep the same patient admitted.
Monitoring Resumed Message
When the sensor is taken off and placed back onto a patient, a Monitoring Resumed message
will appear on the Rad-97 screen.
If this is a new patient, press Discharge to discharge the previous patient. If the same patient
is being monitored, press Confirm to continue monitoring the same patient.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
