Appendix: Concepts of Alarm Response
Delay
Concepts of Alarm Response Delay
As with any pulse oximeter equipment, the audible and visual alarms are subject to alarm
response delay, which is composed of Alarm Condition Delay and Alarm Signal Generation
Delay. Alarm Condition Delay is the time from the occurrence of the triggering event to when
the alarm system determines the alarm condition exists. While Alarm Signal Generation
Delay is the time from the onset of an alarm condition to the generation of its alarm signal.

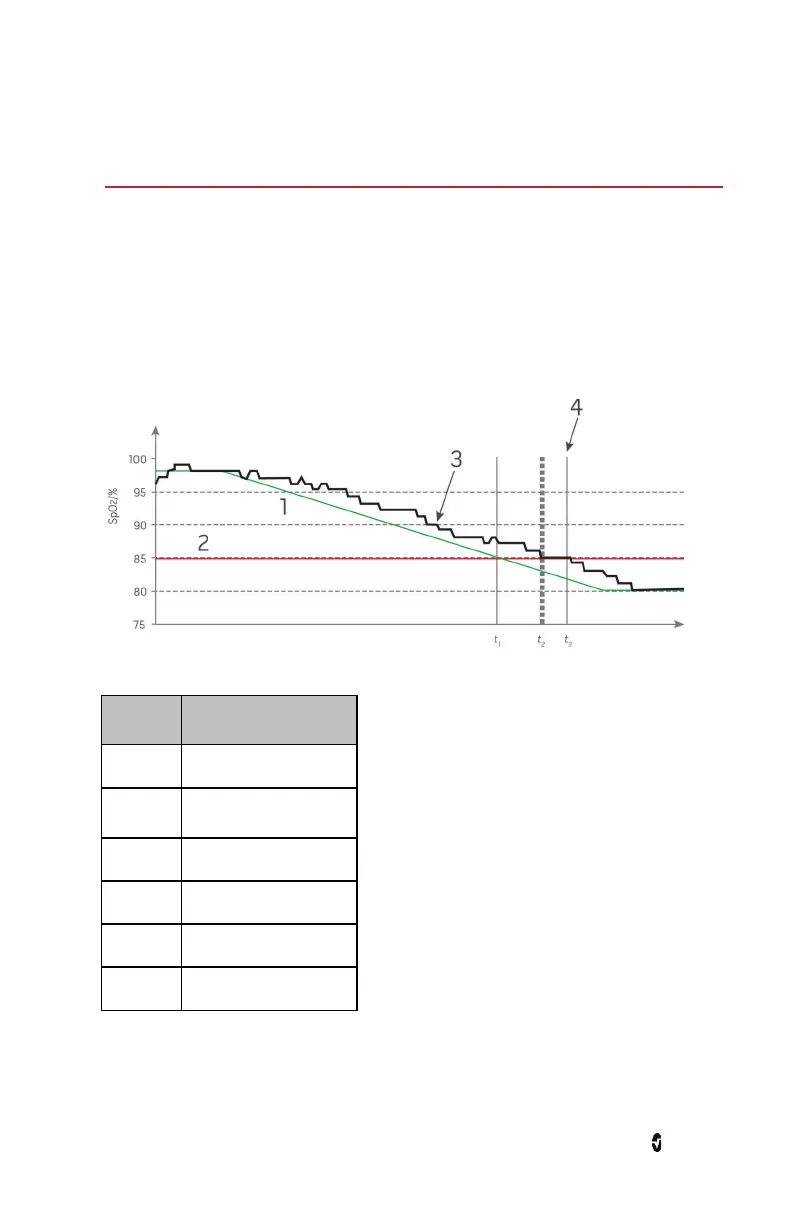

The graphic below is a simplified illustration of the concept of alarm response delay and does
not reflect actual lengths of delays.
Reference Definition
1 SaO
2
2 Alarm Limit
3 Displayed SpO
2
4 Alarm Signal Generation
SpO
2
Saturation
t Time

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
