Masimo Rad-97 Operator's Manual

Rad-97 Chapter 3: Setting Up
www.masimo.com 41 Masimo
Initial Battery Charging
Before use, the Rad-97 battery must be charged completely.
To charge Rad-97
1. Plug the AC power cord into the power entry module. Make sure it is securely
plugged in.
2. Plug the AC power cord into an AC power source.
3. Verify that the battery is charging:

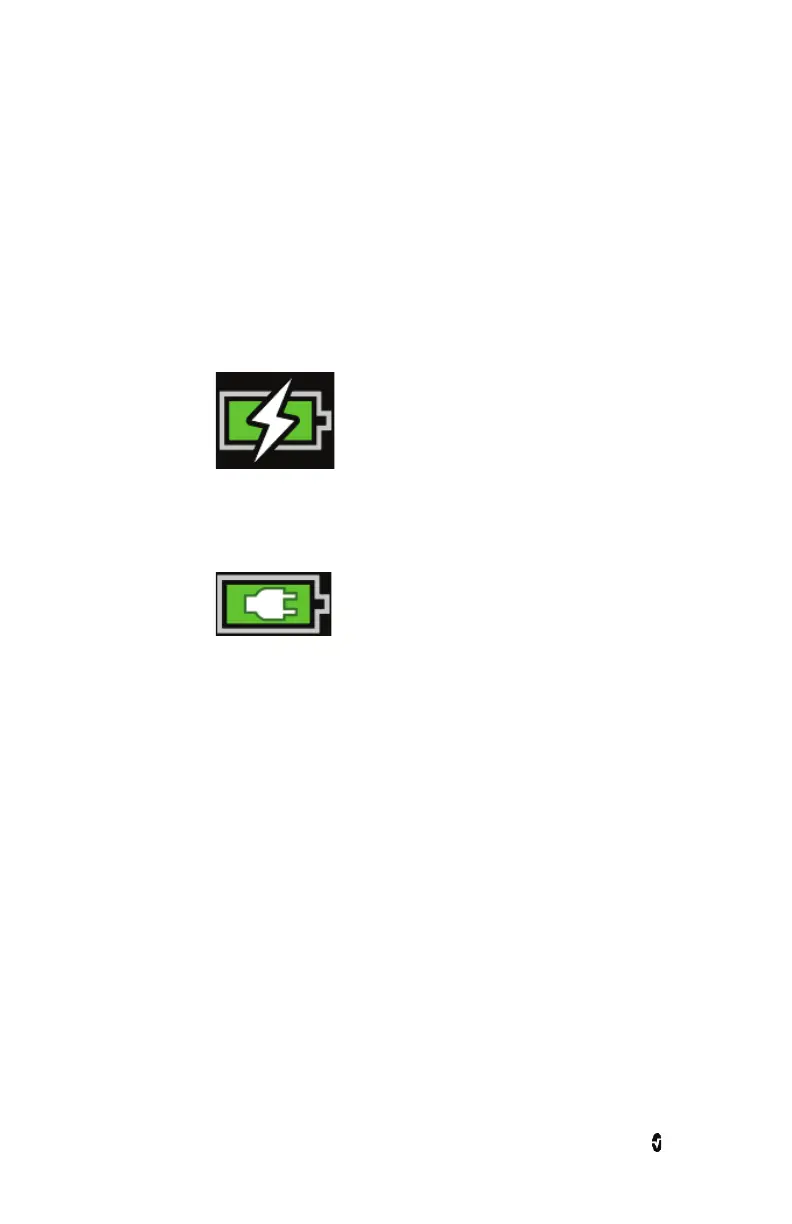

• When Rad-97 is ON and charging, the AC Power Indicator lightning bolt icon
will appear on the screen.
• When Rad-97 is OFF and charging, the Home button will illuminate Orange.
4. When the battery is fully charged:
• When Rad-97 is ON and fully charged, the AC Power Indicator will change to
a plug icon.
Touch the AC Power Indicator icon to view battery charge details. See Rad-97 Battery on page
93. For additional information, see Battery Operation and Maintenance on page 172.
Nurse Call Connection
To connect to a Nurse Call System
1. Identify the Nurse Call connection end (1/4 inch round male connector) of the
cable.
2. Insert the Nurse Call cable connector securely into the compatible port (1/4 inch
round female connector) on the rear of the Rad-97. See Back View on page 37.
3. Depending on the connection type of the Nurse Call System, it may be necessary to
orient the other end of the Nurse Call connection cable to fit correctly into the
system connection.
4. It may be necessary to configure the settings of the Nurse Call output. See Device
Output on page 96 and Nurse Call Setting Connections on page 167 for additional
information.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
