Chapter 9: Alarms and Messages
The following chapter contains information about alarms and messages.
For more information, see Chapter 10: Troubleshooting on page 137.
Alarm Interface
Alarms can have different priority levels and come from different sources. The following
tables describe alarm behaviors in more detail.
Priority Alarm Sound
High 10-pulse burst
Medium 3-pulse burst

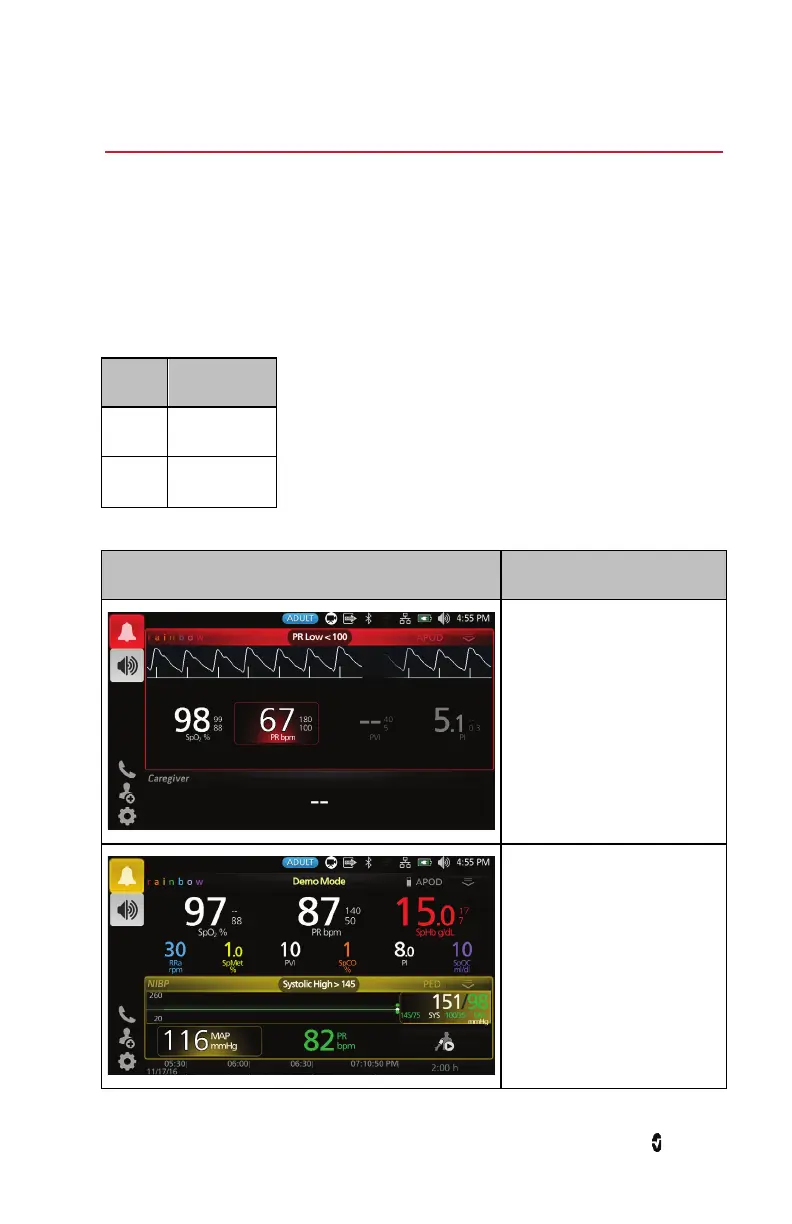

Alarm Source/Example Explanation
Parameter Level: The example
shown here is a PR alarm (PR
Low) as the reading exceeds the
lower alarm limit. Note that the
PR parameter as well as the
Window are illuminated red, and
the explanation of the alarm is
shown at the top of the Window
(PR Low).
Window Level: The example
shown here is an alarm in the
lower NIBP Window.
Note that the border of the
Window illuminates yellow, and
the explanation of the alarm is
shown at the top of the Window
(Systolic High).

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
