Chapter 4: Operation
The information in this chapter assumes that Rad-97 is set up and ready for use. This chapter
provides necessary information for proper operation of the device. Do not operate Rad-97
without completely reading and understanding these instructions.

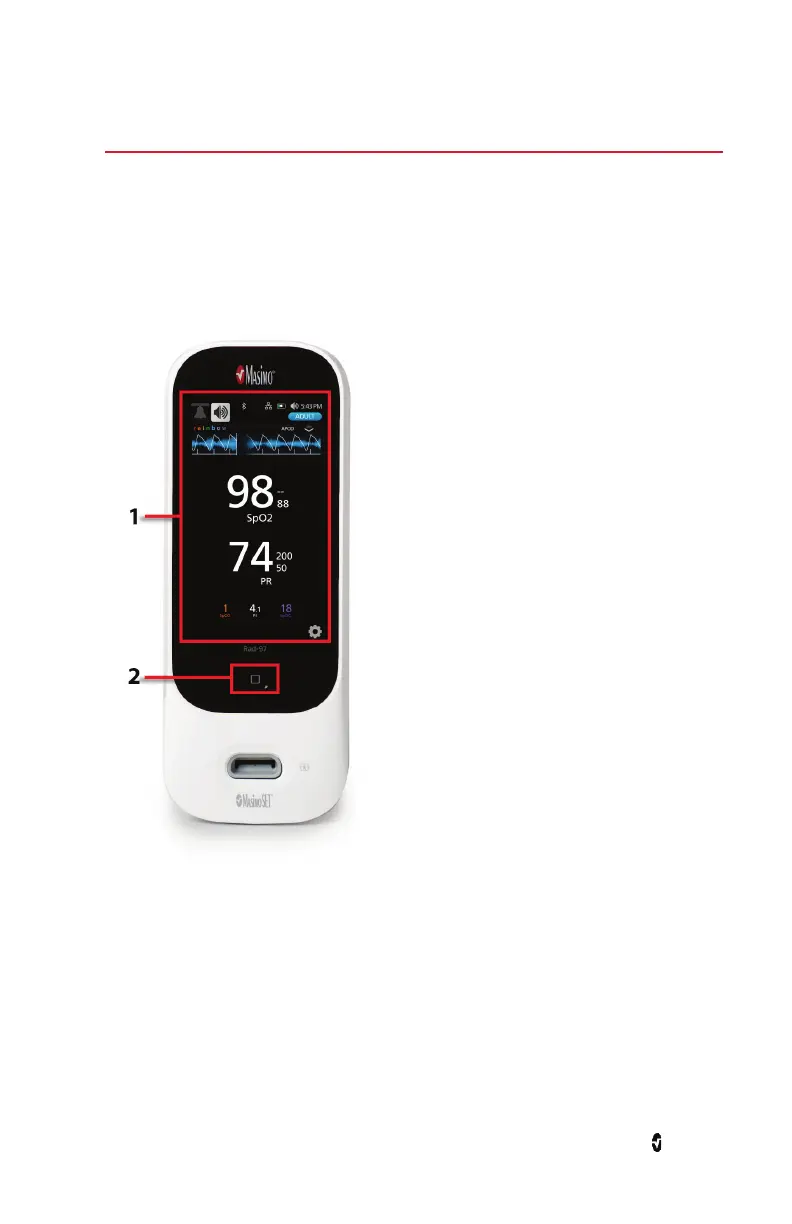

Using the Touchscreen and Home Button
1. Main Screen
To access settings and other screens, touch a
value or icon on the Display View. See About the
Main Screen on page 48.
2. Home / Power button
To return to the Main Screen, press the Home
button.
The Home button is also used to power the
device ON and OFF. See Powering the Rad-97
ON and OFF on page 40.
The Home Button changes color depending on
the selected profile. See Profiles Overview on
page 103.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
